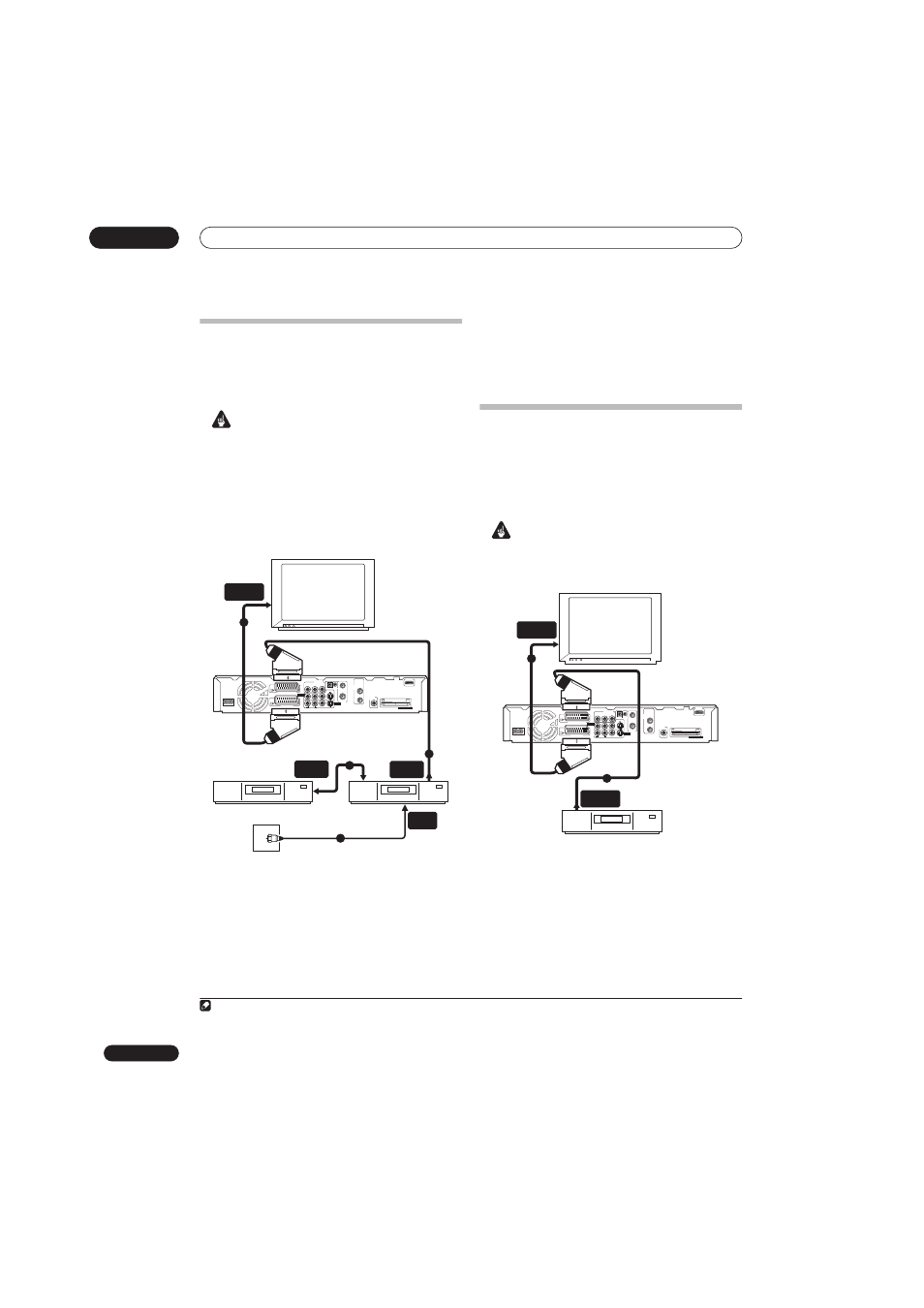

Connecting an external decoder box (1)
If you have an external, dedicated decoder box for your
satellite or cable TV system, use the setup described on
this page. See the previous page for how to connect the
G-LINK™ cable.
Important
• Do not connect your decoder box directly to this recorder.
• Information from the decoder (for example, relating
to pay TV services), is only viewable when this
recorder is off (in standby).
• For timer recording to work properly on this recorder,
the VCR/satellite receiver/cable box must also be
switched on during recording.
• It is not possible to watch one TV program and record
another using this setup.
1
Connect the cable from the antenna/cable TV
outlet to the antenna input on your VCR/satellite
receiver/cable box.
2
Use a SCART cable (not supplied) to connect your
decoder to your VCR/satellite receiver/cable box.
See the manual for your decoder box for more detailed
instructions.
3
Use a SCART cable to connect your VCR/satellite
receiver/cable box to the AV2(INPUT 1/DECODER)
AV connector on this recorder.
4
Use a SCART cable to connect the AV1(RGB)-TV
AV connector to your TV.
Connecting an external decoder box (2)
If you only have a decoder, connect it to this recorder and
your TV as shown on this page.
1
Using the setup on this page you can:
• Record scrambled channels received using the
recorder’s built-in analog TV tuner.
Important
• Do not connect this recorder ‘through’ your VCR,
satellite receiver or cable box. Always connect each
component directly to your TV or AV amplifier/receiver.
1
Connect your TV antenna to the recorder and TV.
See Connecting a TV antenna on page 47 for details.
2
Use a SCART cable (not supplied) to connect the
AV1(RGB)-TV AV connector to a SCART AV connector
on your TV.
This enables you to watch discs.
3
Use another SCART cable to connect the
AV2(INPUT 1/DECODER) AV connector to a SCART AV
connector on your decoder box.
This enables you to record scrambled TV channels.
TV
Antenna/cable TV
wall outlet
VCR/Satellite receiver
/Cable box
Decoder
HDMI OUT
ANTENNA
IN
OUT
DIGITAL
AUDIO OUT
COAXIAL
ANTENNA
(DIGITAL)
IN
OUT
VIDEO
L
R
COMPONENT
VIDEO OUT
S-VIDEO
OUTPUT
INPUT3
IN
CONTROL G-LINK
AV 1 (RGB) – TV
AV 2 (INPUT 1/DECODER)
AC IN
COMMON INTERFACE
AUDIO
P
B
P
R
Y
SCART AV
CONNECTOR
SCART AV
CONNECTOR
SCART AV
CONNECTOR
ANTENNA
IN
1
4
2
3
Note
1 In order to use this setup, you will need to make the following settings from the Initial Setup menu:
• Set the
AV2/L1 In setting to Decoder from the Initial Setup menu (see AV2/L1 In on page 132).
• From the
Manual CH Setting screen, set the Decoder setting for the scrambled channels to On (see Manual CH Setting on page 131).
