Connecting up 02
53
En

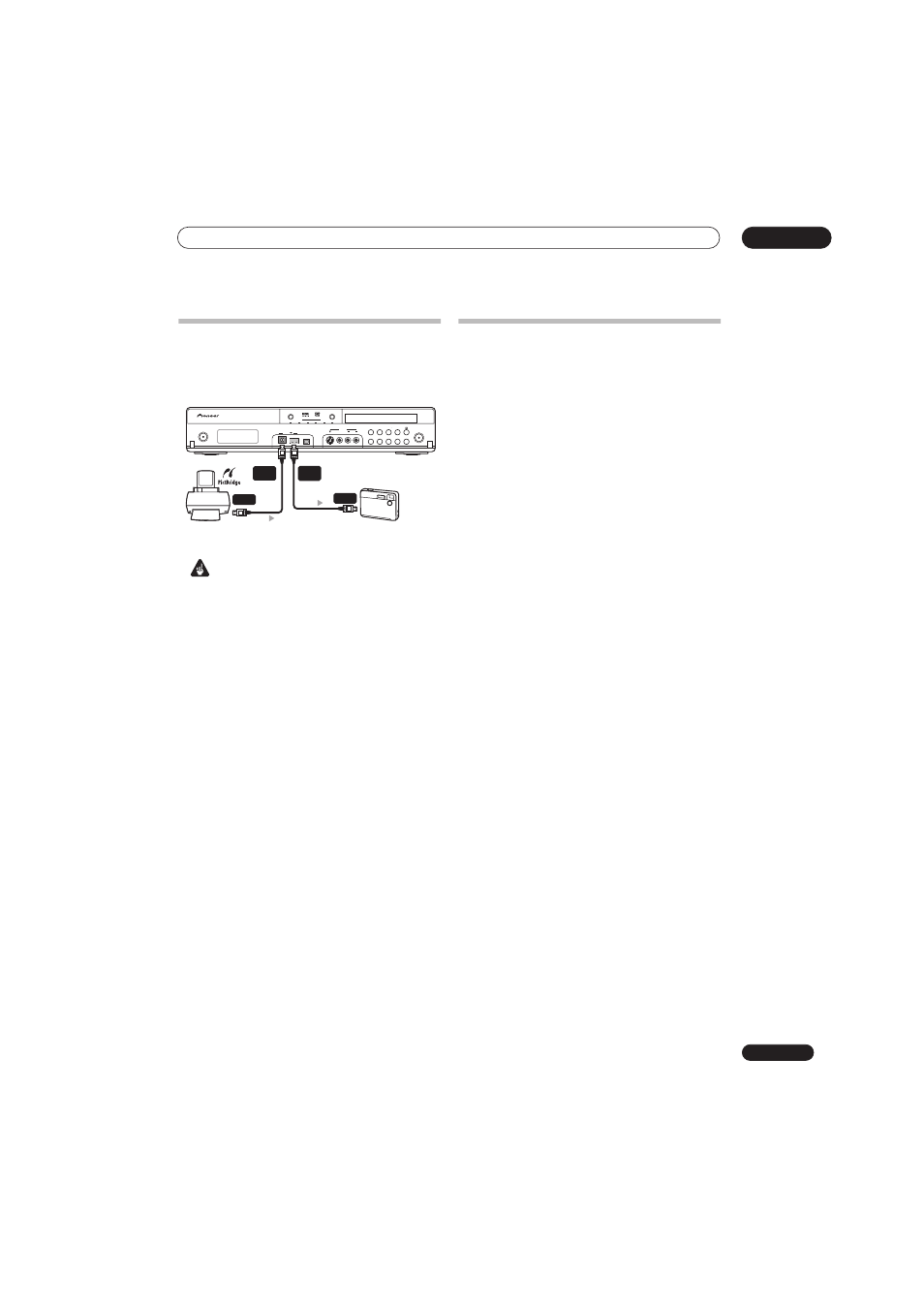

Connecting a USB device
Using the USB ports on the front of the recorder you can
connect USB devices such as digital cameras and
printers. Please also see the instructions that came with
the device you want to connect before using.
Important
• Some USB devices may not work with this recorder.
• Devices may not work reliably if connected to this
recorder via a USB hub.
JPEG file storage devices
• Digital still camera
• Memory card reader (any type of memory card)
• USB memory
The Mass Storage Class (MSC) device should be FAT-
compatible. Note that if the device is partitioned, this
recorder may not recognize it.
The Picture Transfer Protocol (PTP) can be used to
transfer up to about 4000 files.
WMA/MP3 file storage devices
• Memory card reader (any type of memory card)
• USB memory
The Mass Storage Class (MSC) device should be FAT-
compatible. Note that if the device is partitioned, this
recorder may not recognize it.
Note that although multi-slot card readers can be used,
the recorder will only recognize the first card inserted. To
read another card, remove all the cards and insert the
card to be read again.
Using a USB printer
• Use a PictBridge-compatible printer.
Plugging in
After checking all the connections, plug in the recorder.
• Use the supplied power cable to connect this
recorder to a power outlet.
Digital Camera
HDD/DVD OPEN/CLOSE
STANDBY/ON
S-VIDEO
COPY HDMI PLTV DivX D.TV A.TV
VIDEO L(MONO) R AUDIO INPUT 2
ONE TOUCH COPY
CH ì REC + –
A.TV/D.TV HELP INPUT SELECT PAUSE LIVE TV
DV IN USB
USB
USB
Type B
PictBridge-compatible
Printer
USB
USB
Type A
