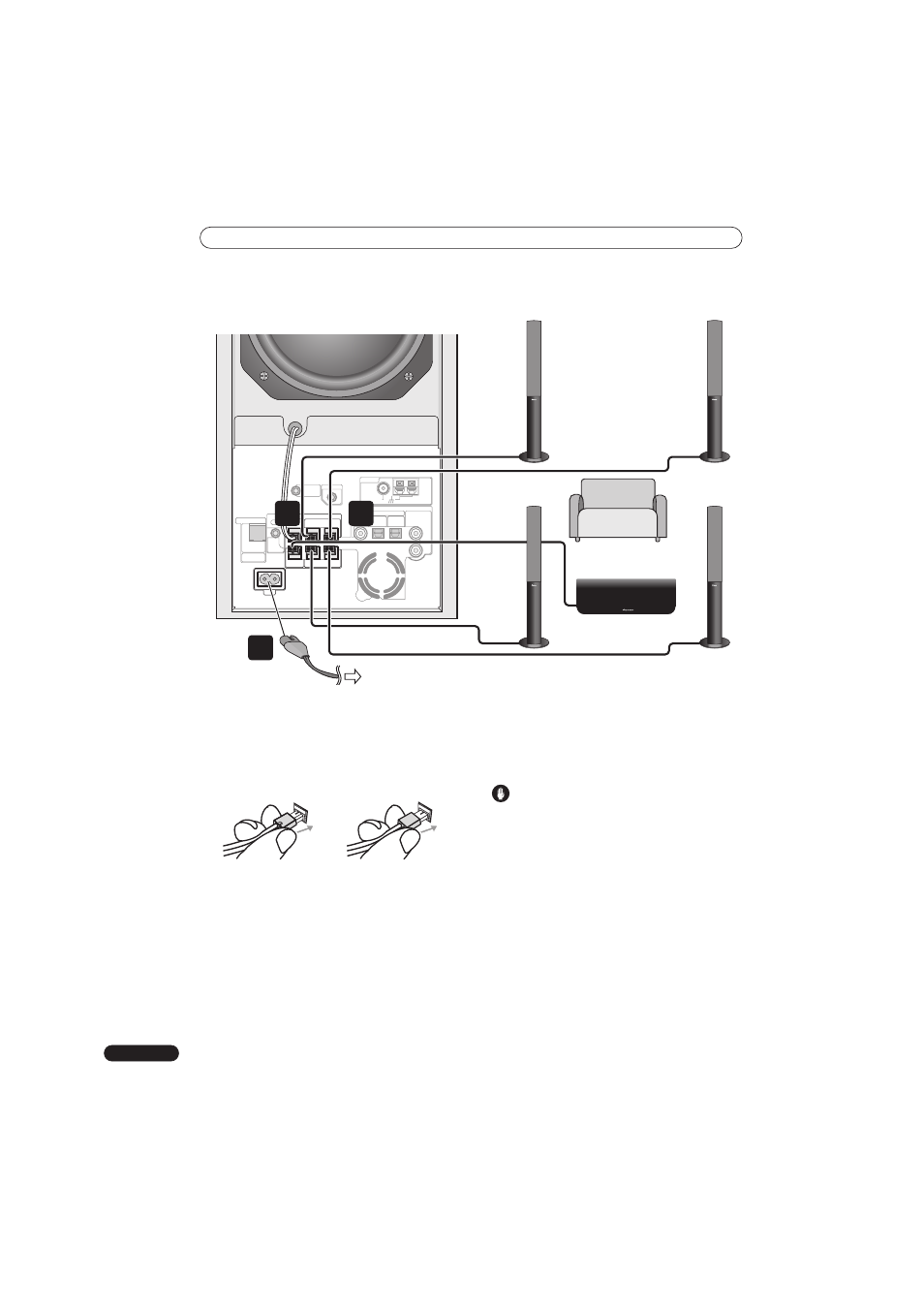

Connecting up
10
En
• Connect the other end to the color-coded speaker
terminals on the rear of the receiver subwoofer. Make
sure to insert completely.
The small lug at the wire-end of the speaker plug
should face up or down depending on whether it’s
being plugged into one of the upper or lower speaker
terminals. Please make sure to connect correctly.
6 Connect the subwoofer cable.
• Just below the subwoofer speaker, to the left of
center, you should see the subwoofer connecting
cable. Plug this into the
SUBWOOFER SPEAKER
terminal.
Caution
• These speaker terminals carry HAZARDOUS LIVE
voltage. To prevent the risk of electric shock when
connecting or disconnecting the speaker cables,
disconnect the power cord before touching any
uninsulated parts.
• Do not connect any speakers other than those
supplied to this system.
• Do not connect the supplied speakers to any
amplifier other than the one supplied with this
system. Connection to any other amplifier may result
in malfunction or fire.
SPEAKERS
SUB WOOFER
AC IN
CENTER
SURROUND DVD/DVR 1
DIGITAL
AUDIO INPUT
ANTENNA
FM
UNBAL
AM
LOOP ANTENNA 75 Ω
ANALOG
R L
R
L
FRONT R L
CONTROL
OUT
USE ONLY WITH
DISPLAY UNIT
SYSTEM CONNECTOR
CONTROL IN MCACC
SETUP MIC
DVD/DVR 2
(OPTICAL)
DIGITAL
(OPTICAL)
Front right
(Red)
Front left
(White)
Surround left
(Blue)
Surround right
(Gray)
Listening position
Center (Green)
8
6 5
To AC outlet
Receiver subwoofer (SX-SW505HX)
Speaker system (S-ST606)
Upper terminal Lower terminal
