Controls and displays 03
55
En

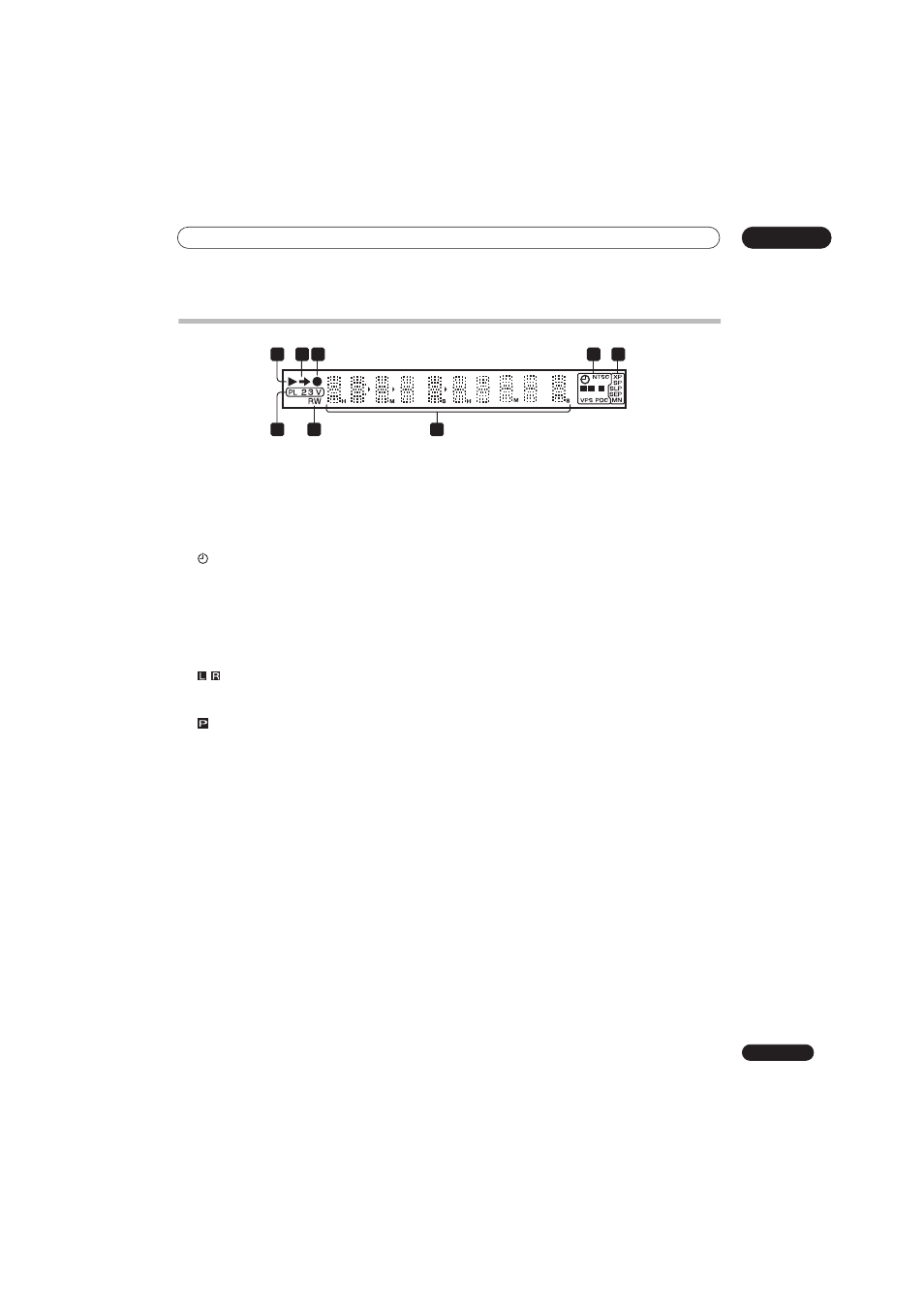

Display
1
Lights during playback; blinks when playback is paused.
2
Lights when copying.
3 ì
Lights during recording; blinks when recording is
paused.
4 (page 70)
Lights when a timer recording has been set.
(Indicator blinks if the timer has been set to DVD but
there isn’t a recordable disc loaded, or the timer has
been set to record to the HDD but the HDD is not
recordable.)
NTSC
Lights when the video output signal format is NTSC.
(page 133)
Indicates which channels of a bilingual broadcast
are recorded.
(page 132)
Lights when the component video output is set to
progressive scan (except in some cases when a
component is connected using HDMI).
VPS / PDC (page 70)
Lights when receiving a VPS/PDC broadcast during a
VPS/PDC-enabled timer recording.
5 Recording quality indicators (page 82)
XP
Lights when the recording mode is set to
XP (best
quality).
SP
Lights when the recording mode is set to
SP
(standard play).
LP / SLP
Lights when the recording mode is set to
LP (long
play) or SLP (super-long play).
EP / SEP
Lights when the recording mode is set to
EP
(extended play) or SEP (super-extended play).
MN
Lights when the recording mode is set to
MN
(manual recording level) mode.
6 Character display
7 R / RW
Lights when a recordable DVD-R or DVD-RW disc is
loaded.
8 PL (page 101)
Lights when a VR mode disc is loaded and the
recorder is in Play List mode.
2 3 (page 138)
Shows the remote control mode (if nothing is
displayed, the remote control mode is 1).
V
Lights when an unfinalized Video mode disc is
loaded.
