1. To check the input port configuration, type in the following – a question mark followed by the Input
Number (129, 130, 131 or 132):
Example: ? 129
2. Push Enter.
3. The following information will be displayed (FIG. 100);
The table below describes typical values returned when using the ? command on an input port.
User Outputs
1. To view a port’s properties, type a question mark before the port number.
Ensure there is a space between the question mark and the number. (FIG. 101)
For example ? 1 will display Port 1 properties.
2. Push Enter once the command has been entered.
3. The table below describes typical values returned when using the ? command on a Hub port.

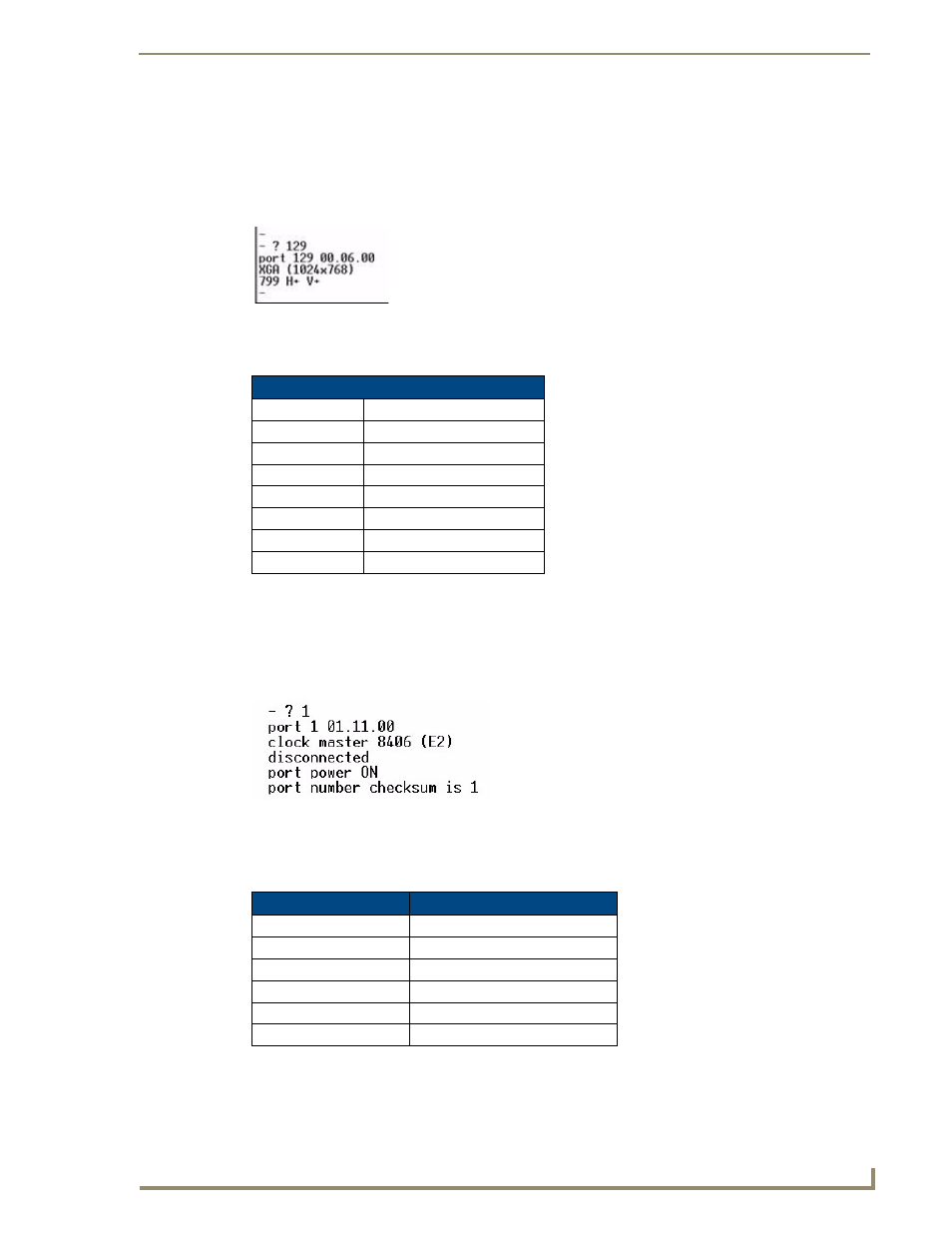

FIG. 100 Querying a multi format input port
Multi-Format Input Configuration
Value Description
129 Input A
00.06.00 Input Controller Version
XGA Extended Graphics Array
1024x768 Screen Resolution
799 Vertical lines on screen
H+ Horizontal polarity (+/-)
V+ Vertical polarity (+/-)
FIG. 101 Querying a port
Value Description
Port 1 Port number on UDM-0404
01.11.00 Port Controller version
Clock Master 8406 Master (version)
Disconnected / Connected Connected to RX
Port Power On or Off
Port Number Checksum Port in Master or Slave hub
