Configuration - Status Page
25
UDM-0404 4x4 Multi-Format Distribution Hub
Renaming Output Ports
1.
Click on the relevant Port hyperlink on the Status page (see FIG. 15 on page 23) to invoke the Port
Configuration options for the selected Port (see FIG. 16 on page 24).
2.
Type directly into the Name text field to rename the port.
Video Compensation
Options within the Port Configuration page (see FIG. 16 on page 24) allow you to compensate (tune)
outgoing video signals for optimum picture quality.
Basic Video Compensation
1.
On the Status page. click on a Port hyperlink to access the Port Configuration options (see
FIG. 16 on page 24).
2.
Adjust Brightness and Sharpness via the Up and Down links.
3.
To add skew delay into any of the video colors, click on the appropriate color hyperlink (FIG. 17).
The skew delay cycles through red, green and blue.
Each radio button is equivalent to 2ns delay.
Port Configuration Options (Cont.)
Red/Green/Blue skew: Use this set of radio buttons to manually add skew delay to any of the video colors.
See the Basic Video Compensation section on page 25 for details.
Protocol:
Select a control protocol to be used for this Port. See the Testing Serial Control
Commands section on page 63 for details.
LCD screens have a tendency to automatically try and compensate the video,
presenting issues when adjusting for skew. Using a CRT monitor to adjust video
quality is often the best way around this.

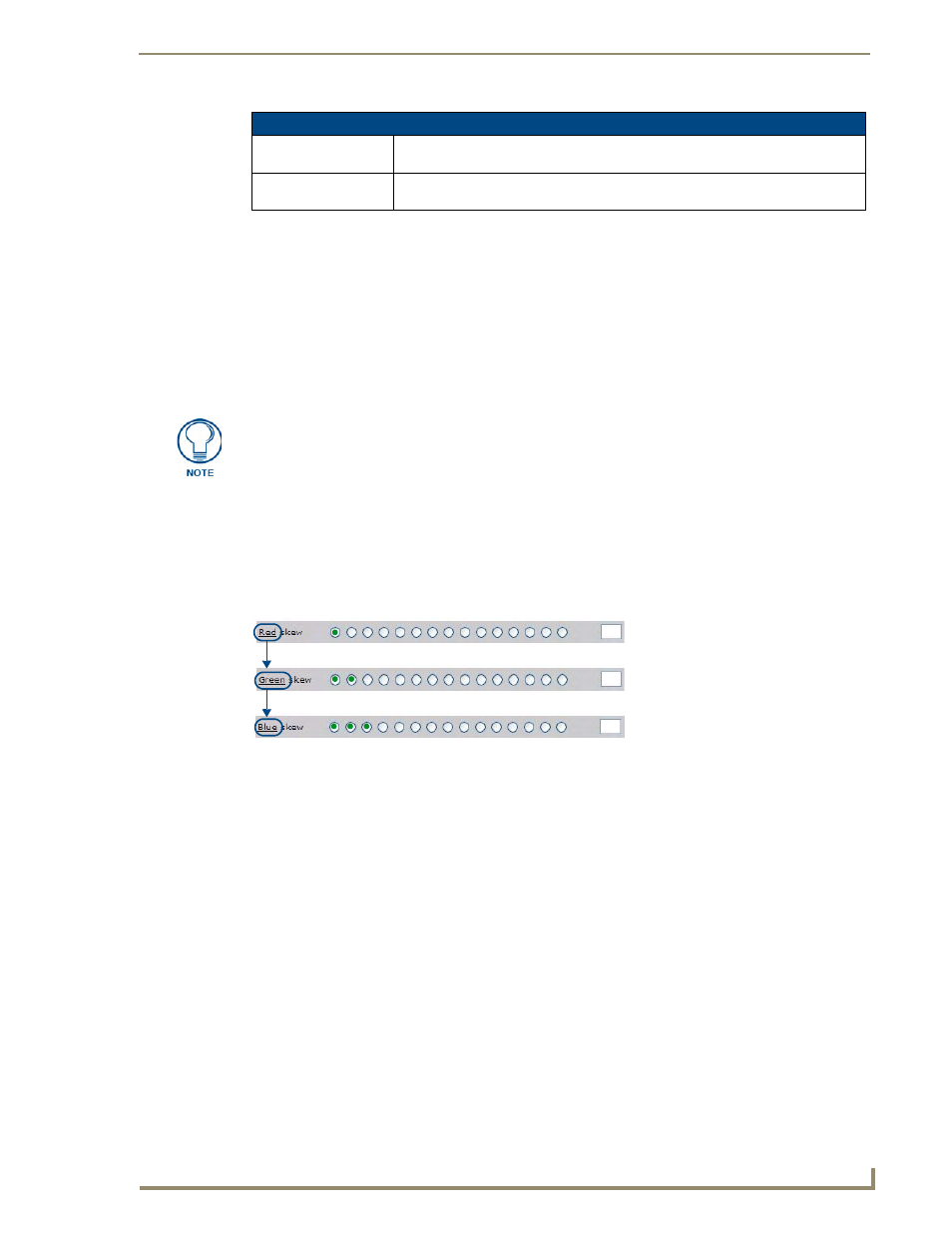

FIG. 17
Skew controls
1
2
3
