Configuration - Status Page
31 UDM-0404 4x4 Multi-Format Distribution Hub
Issuing Commands To a Selected Port
Control of the input is performed in a similar way to changing the input to be displayed. Commands can
either be issued per Input or issued across all or groups of ports.
1. For the Port that you want to issue a command, open the Control drop-down menu, as shown in
FIG. 28.
2. Select the required command from the Control drop-down menu.
3. Once selected, click on Execute (see FIG. 28) to execute the selected command for the relevant
port.
Ensure the device’s IR commands have been learned by the Hub first. Refer to the
Configuration - Protocols Page section on page 59.

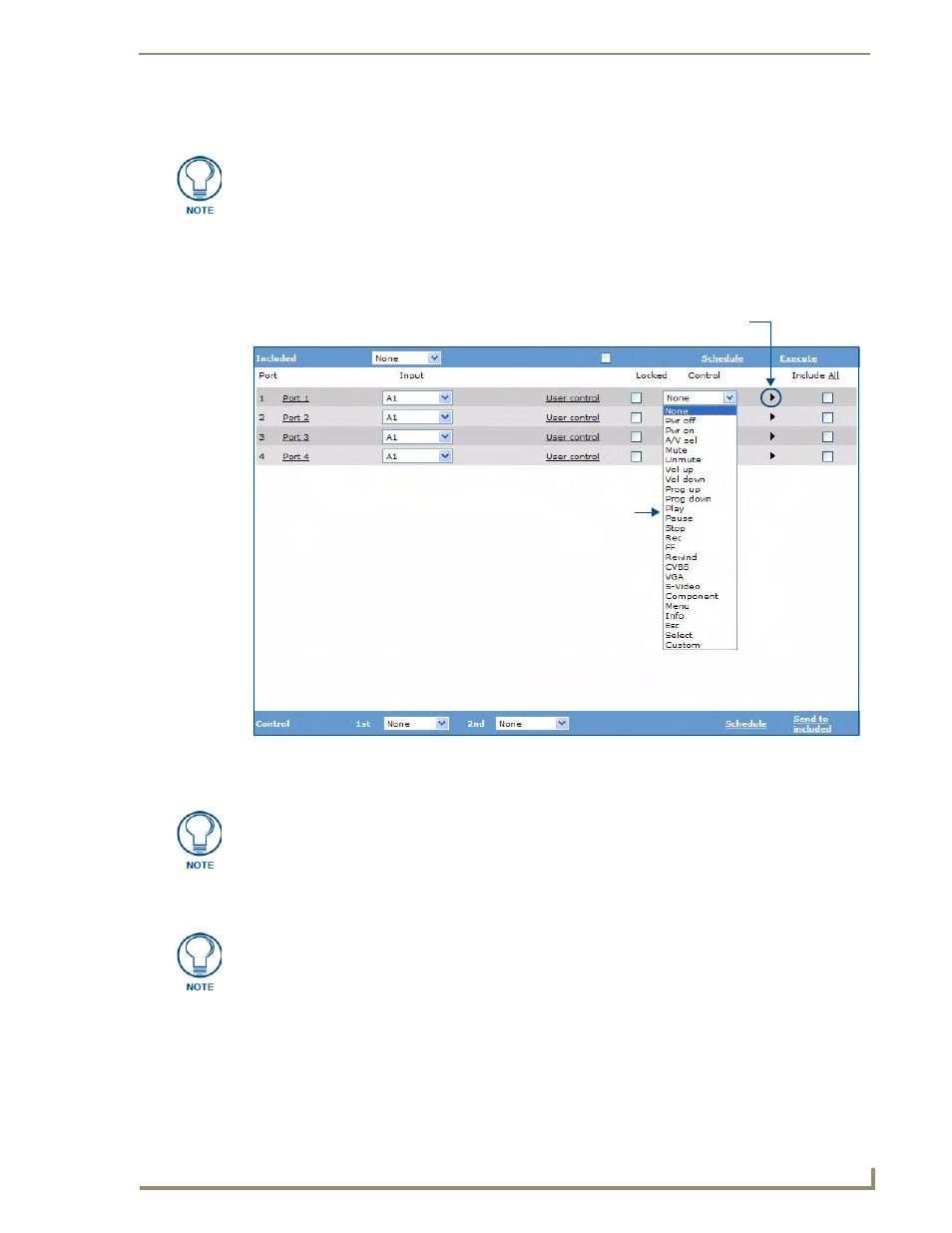

FIG. 28 Control drop-down menu
Click to execute the selected
Command on this Port
Control drop-down menu
Where a custom control is required, type in the IR code for the command. Refer to
the Endeleo IR Codes section on page 77.
Ensure that an (optional) IR01 Endeleo IR Emitter Module (FG-IR01) is connected to
the Receiver’s IRTX port. Attach it to the Device’s IR sensor before issuing a
command. The IR Emitter transmits the command from the Receiver directly to the
device’s IR sensor.
