Configuration - Devices Page
43
UDM-0404 4x4 Multi-Format Distribution Hub
Configuration - Devices Page
Overview
The system allows "centrally located" devices connected to the rear of the UDM-0404 (e.g. VCR, DVD,
DVR or Satellite Decoders) to be managed from the user port. Centrally located devices are connected
directly to the rear of the UDM-0404 via the UDM IR ports (Tx1 – Tx4) using an Endeleo IR Tx bud.
The IR Tx bud will then transmit the IR signal from the UDM-0404 to the device.This is performed
through the Devices page (FIG. 45).
An IR02 Endeleo IR Splitter Cable (FG-IR02) will be needed for each of the IR ports if using 2 devices
per IR port.
If only one device connected to IR TX port 1/2 it will by default be Device 1.
If only one device connected to IR TX port 3/4 it will by default be Device 3.

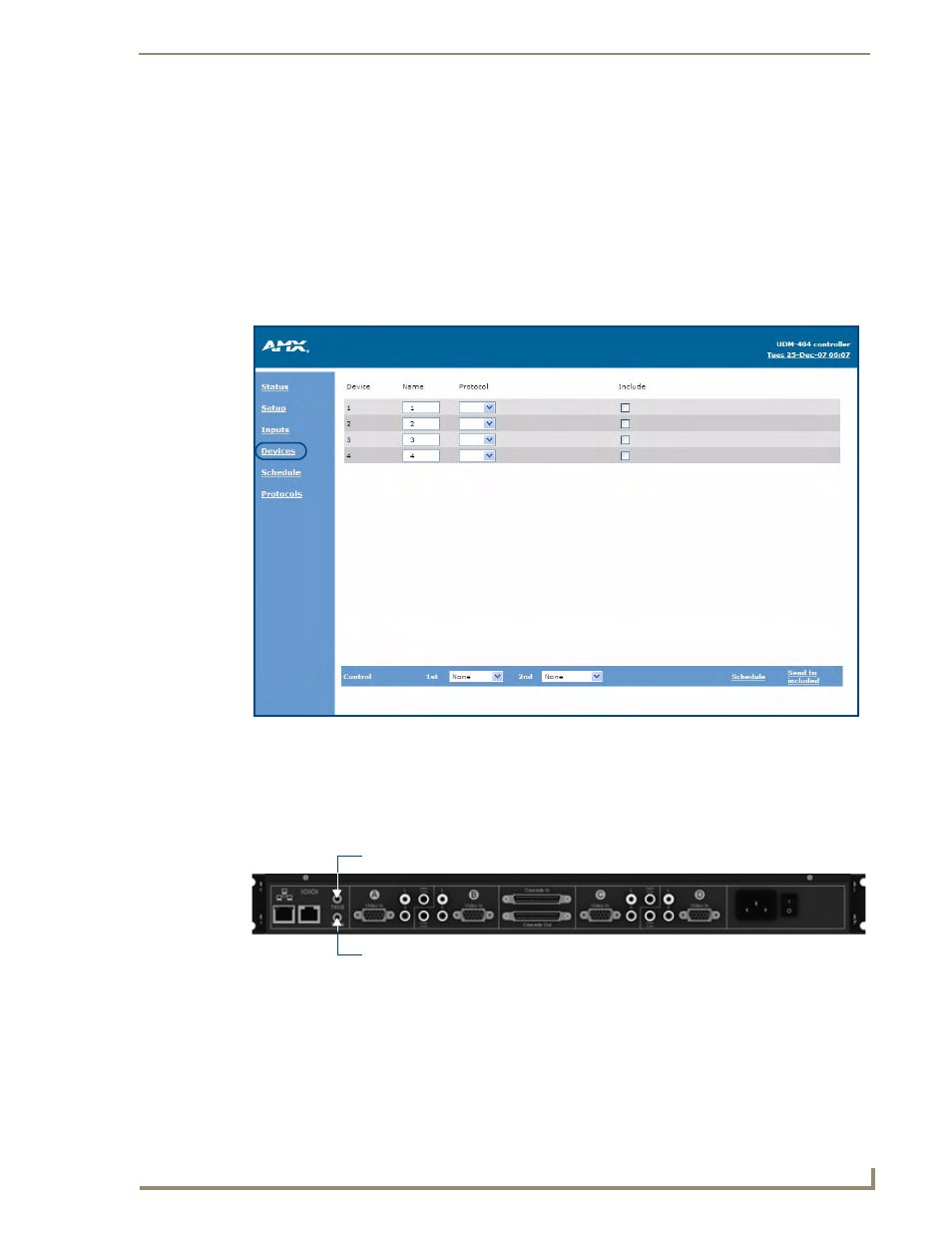

FIG. 45
Devices page
FIG. 46
IR TX ports for locally connected devices
IR TX Ports 1/2
IR TX Ports 3/4
