Page 55
Connecting
the
cables
Attention:
To
prevent
damage
to
equipment,
connect
the
power
cords
last.
If
the
server
cables
and
connector
panel
have
color-coded
connections,
match
the
color
of
the
cable
end
with
the
color
of
the
connector.
For
example,
match
a
blue
cable
end
with
a
blue
panel
connector,
a
red
cable
end
with
a
red
connector,
and
so
on.

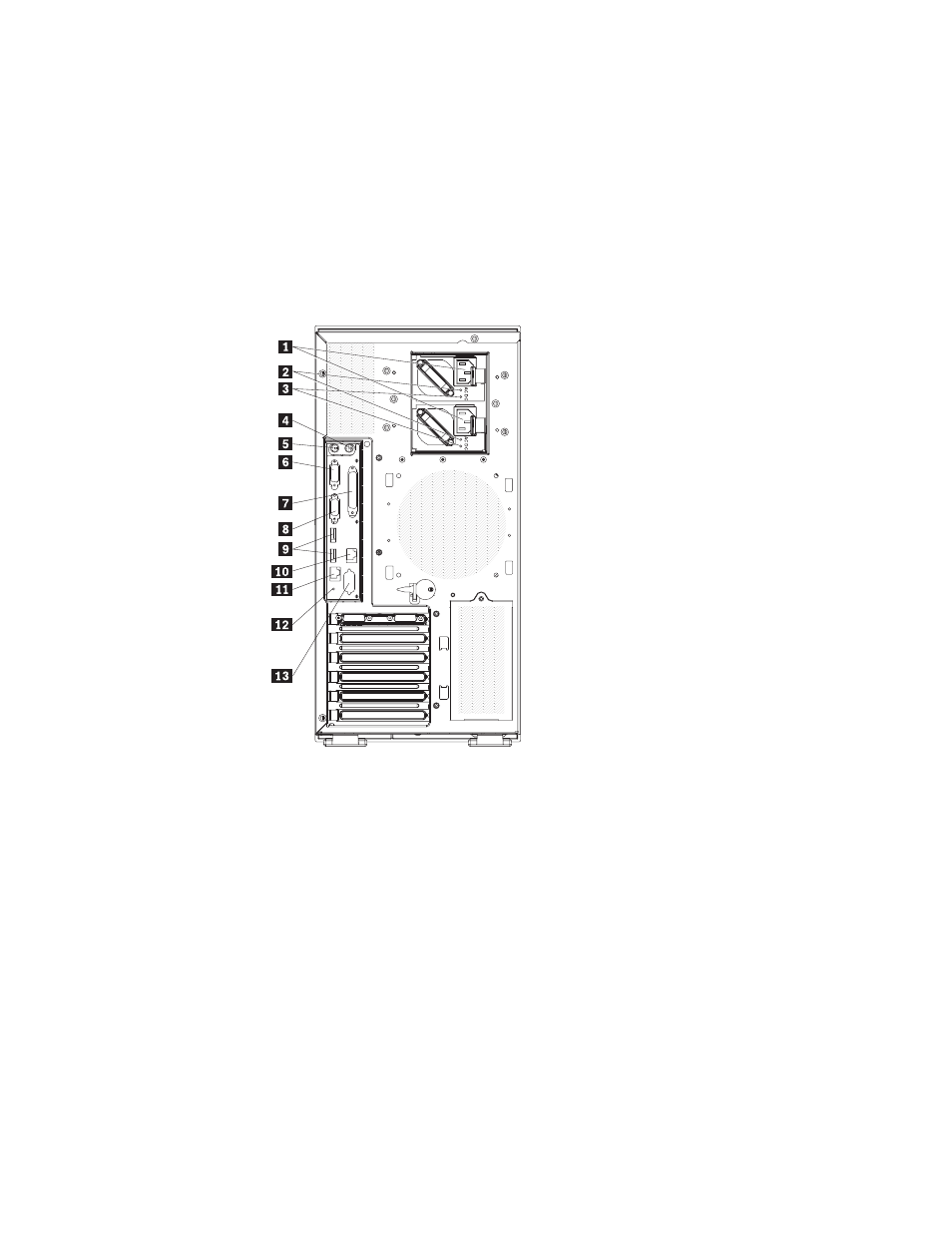

The
following
illustration
shows
the
input/output
(I/O)
connectors
on
the
rear
of
the
hot-swap
power
supply
models
with
optional
redundant
power.
1
Power
cords
8
Video
2
AC
power
LEDs
9
USB
3
and
4
3
DC
power
LEDs
10
(RJ45)
Ethernet
10/100/1000
4
Mouse
11
(RJ45)
Ethernet
10/100
(for
Remote
Supervisor
Adapter
II
SlimLine)
5
Keyboard
12
NMI
button
6
Serial
1
(COM
1)
13
Serial
2
(COM
2)
7
Parallel
Chapter
2.
Installing
options
39
