System-board LEDs

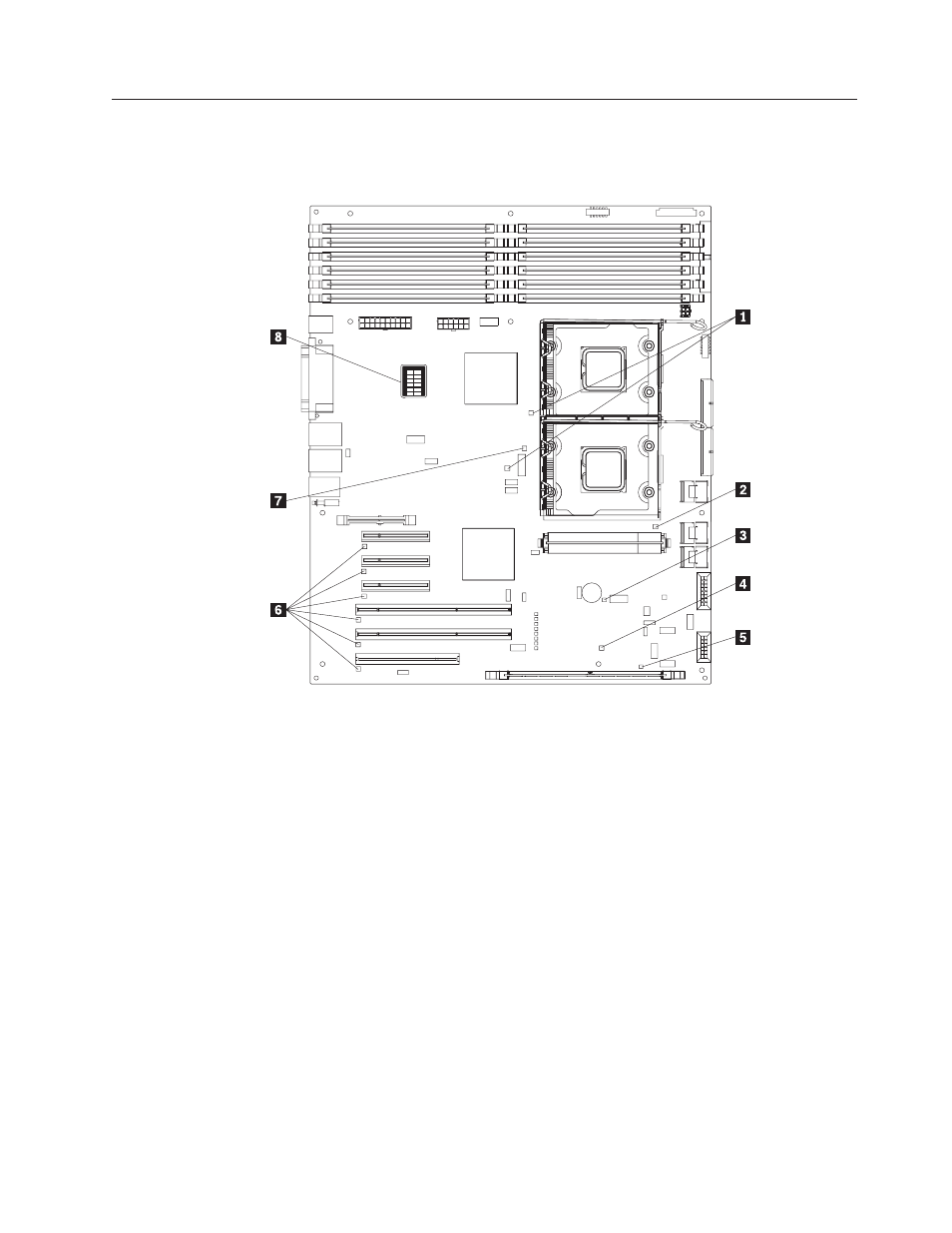

The following illustration shows the LEDs on the system board. You might have to
refer to this illustration when solving problems with the server.
1
2
3
4
5
6
7
8
9
10
11
12
DIMM LEDs
1 Microprocessor error LED (2) 5 ServeRAID error LED
2 VRM error LED 6 Error LED (6)
3 Battery LED 7 Microprocessor mismatch LED
4 BMC heartbeat LED 8 DIMM error LEDs 1 through 12
Use the system-board LEDs to diagnose system errors. An error LED is lit to
indicate a problem with a specific component. After a problem is corrected, the LED
will not be lit the next time that the server is restarted; if the problem remains, the
LED will be lit again. For additional information, see the Hardware Maintenance
Manual.
Chapter 5. Solving problems 85
