Major components of the server
Note: The major components of the server vary, depending on the machine type
and model.
Blue on a component indicates touch points, where you can grip the component to
remove it from or install it in the server, open or close a latch, and so on.
Orange on a component or an orange label on or near a component indicates that
the component can be hot-swapped, which means that if the server and operating
system support hot-swap capability, you can remove or install the component while
the server is running. (Orange can also indicate touch points on hot-swap
components.) See the instructions for removing or installing a specific hot-swap
component for any additional procedures that you might have to perform before you
remove or install the component.

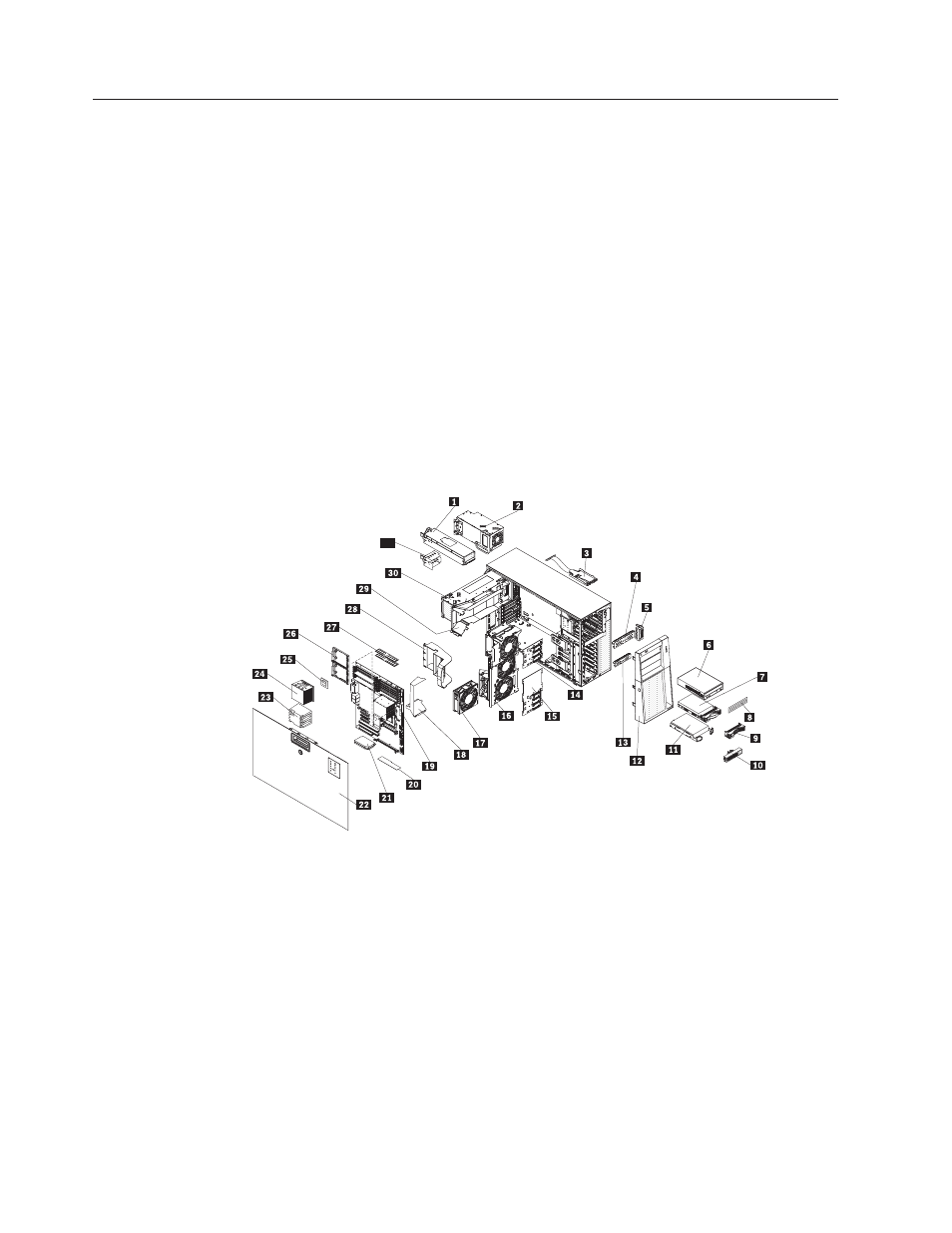

The following illustration shows the major components in the server.
Note: The illustrations in this document might differ slightly from your hardware.
31
1 Hot-swap power supply (some
models)
17 Hot-swap fan
2 Fixed power supply (some models) 18 Processor baffle
3 Control panel assembly 19 System board
4 Drive bay EMC shield 20 ServeRAID 8k-l (TD100) or
ServeRAID 8k (TD100x)
5 USB cable assembly 21 VRM
6 DVD drive 22 Cover
7 Hot-swap drive 23 Heat sink filler
8 DVD drive trim piece 24 Heat sink
9 Hot-swap drive trim piece 25 Microprocessor
10 Simple-swap drive trim piece 26 Heat sink retention bracket
11 Simple-swap drive 27 DIMMs
12 Bezel 28 Rear adapter retention bracket
13 Hard disk drive EMC shield 29 DIMM air duct
