8.
Carefully
grasp
the
adapter
1
by
the
top
edge
or
upper
corners,
and
align
it
with
the
expansion
slot
guides;
then,
press
the
adapter
firmly
into
the
expansion
slot.
Move
the
adapter
directly
from
the
static-protective
package
to
the
expansion
slot.
Note:
If
any
adapters
in
the
server
are
large
or
have
heavy
cables
attached
to
them,
you
can
remove
the
rear
adapter-retention
bracket
1
and
secure
all
of
the
adapters
with
expansion-slot
screws
(the
expansion-slot
screws
are
located
on
the
side
of
the
optical
drive
cage).

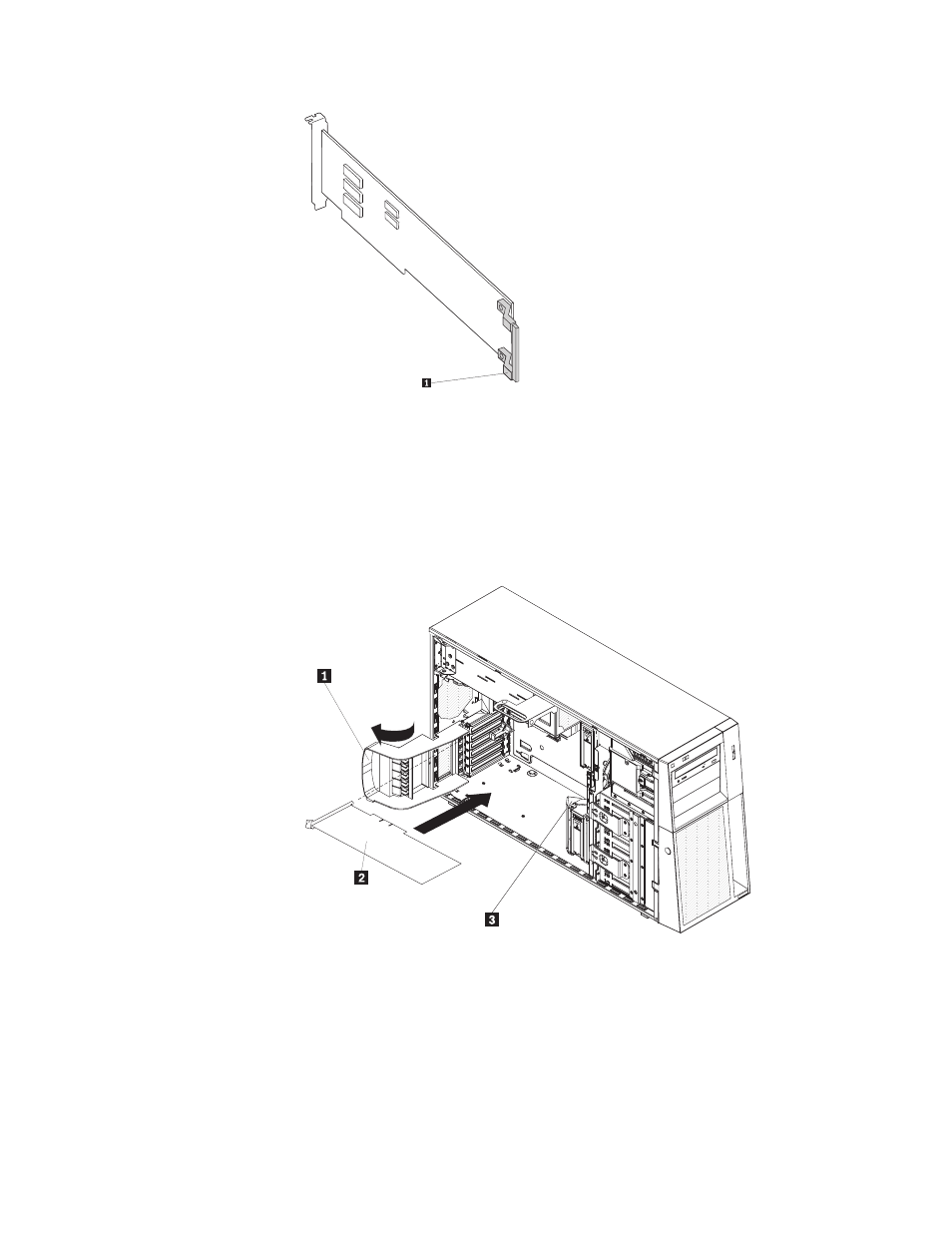

1
Rear
adapter
retention
bracket
2
Adapter
3
Front
adapter
retention
bracket
9.
Connect
required
cables
to
the
adapter.
Route
cables
so
that
they
do
not
block
the
flow
of
air
from
the
fans.
10.
Rotate
the
front
and
rear
adapter-retention
brackets
to
the
closed
(locked)
position.
