Vector 3D User Guide
Connecting the power/data cable:
Note: This procedure is for connecting the serial 12-pin power/data cable to the 3D. To connect the
serial-to-NMEA 2000 adapter to the 3D, connect in a similar manner. See “NMEA 2000 Port” on page 14
for more information on the adapter.
1.

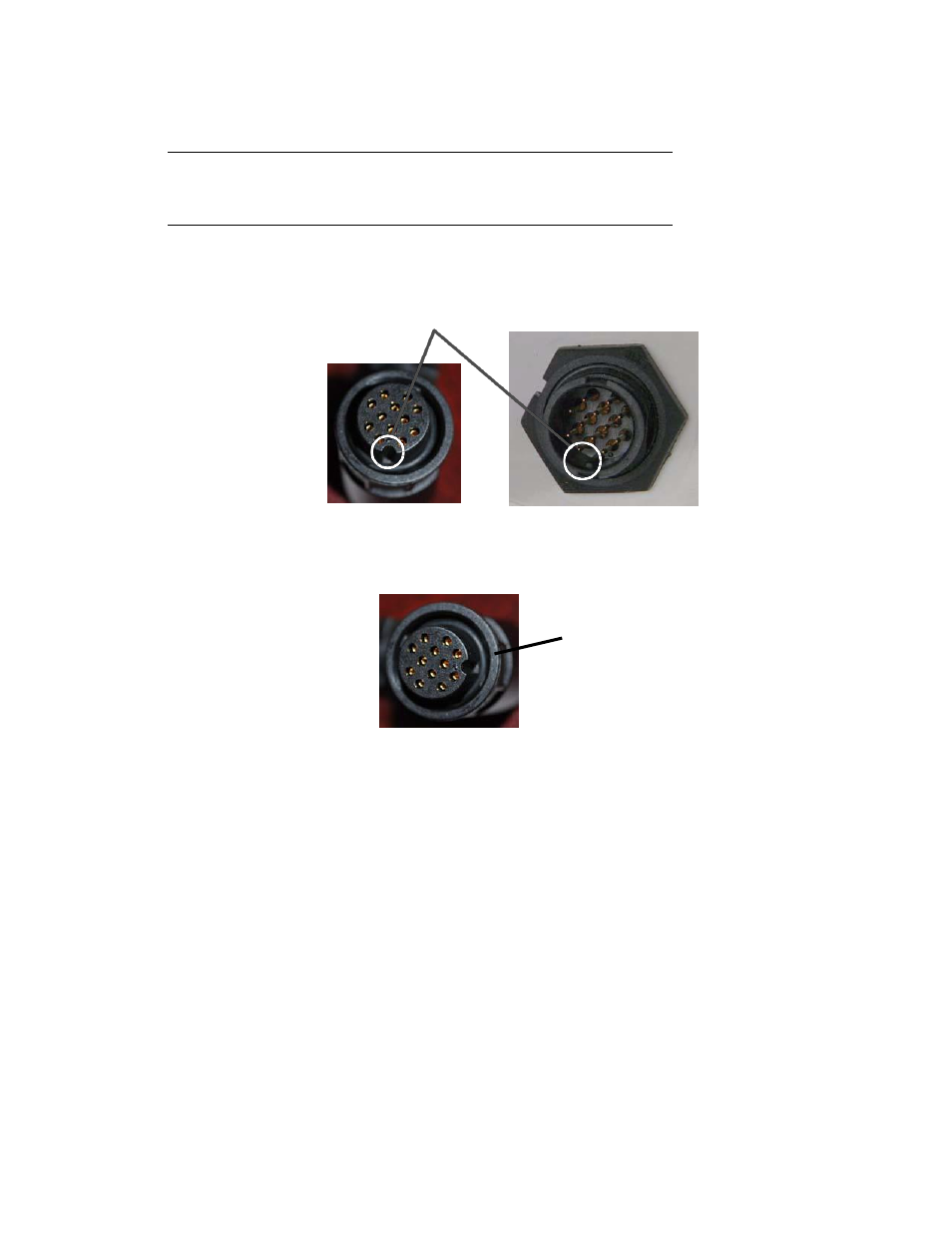

Align the cable connector keyway with the 3D connector key
.
Make sure the connector keyway
on the cable matches up with the
connector key on the 3D
Cable connector keyway
3D connector key
2.
Rotate the cable ring clockwise until it locks. The locking action is firm, but you will feel a positive
“click” when it has locked
.
Cable ring
