Chapter 2: Installation
Mounting Options
The 3D allows for two different mounting options: flush mount and pole mount.
• Flush mount - The bottom of the 3D contains four M8 holes for flush mounting the unit to a flat
surface (see Figure 2-6).
• Pole mount - The bottom of the 3D contains a mounting hole (1" thread, 0.9" depth) for easy pole
mounting. Hand tighten until snug (do not overtighten). The set screws on the long sides of the base
(see diagram below) allow you to secure the 3D in place (3/16" Allen wrench not included).
3D Dimensions

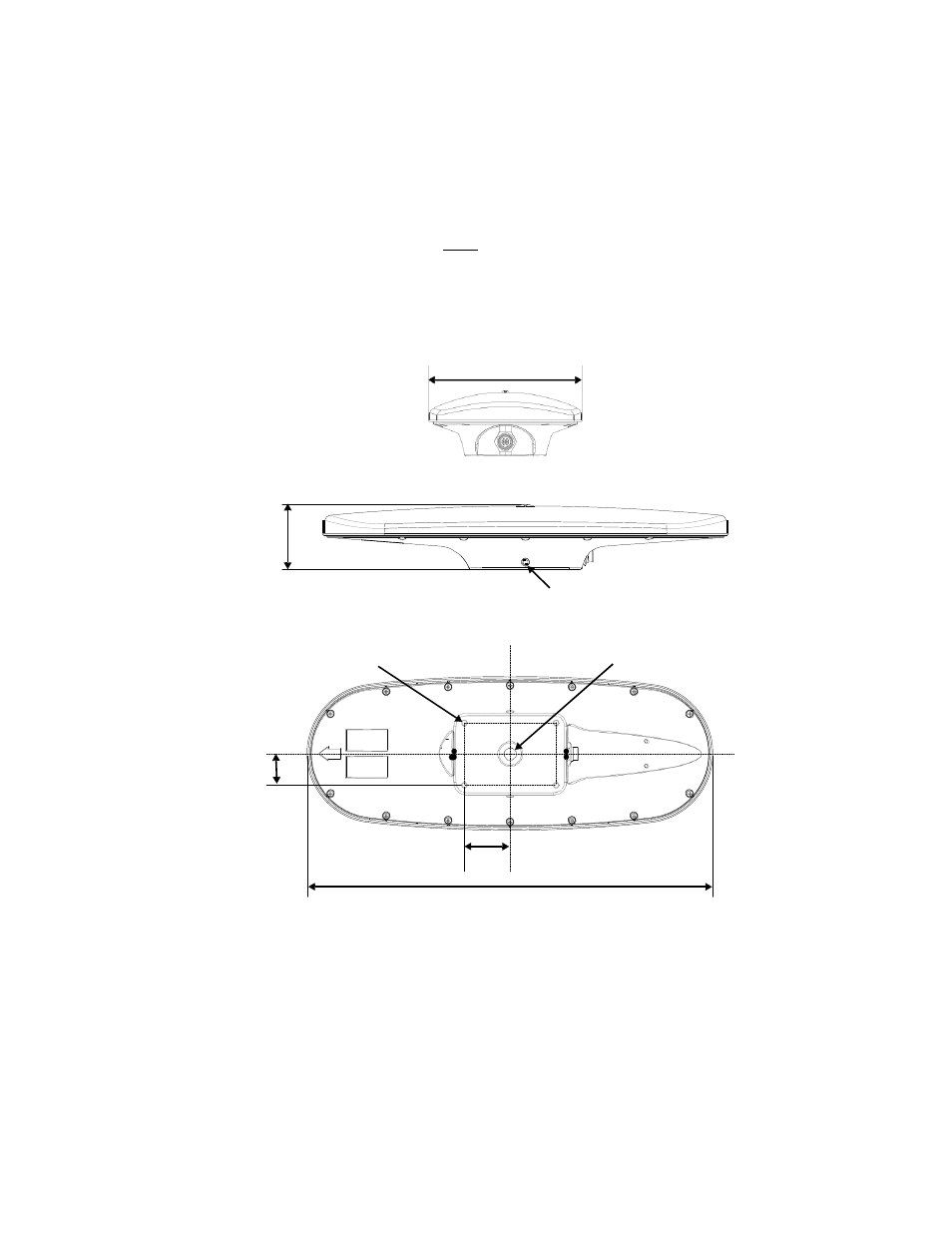

Figure 2-6 illustrates the physical dimensions of the 3D .
157.89 mm (6.21”)
66.90 mm
(2.63”)
SET SCREW
3/8-16 THREAD SIZE
2 PLACES
CL
MOUNTING HOLE
M8 THREAD SIZE
4 PLACES MOUNTING HOLE
1-14 UNS-2B THREAD SIZE
CL
31.75 mm
(1.25”)
46.99 mm
(1.85”)
416.93 mm (16.41”)
Figure 2-6: 3D dimensions
