2 Quick-Start Guide

2 Quick-Start Guide

This section describes a basic setup procedure for the CDB53L30. After completing the steps in

Fig. 2-1

, the CDB53L30

will be configured to accept eight single-ended or differential analog line inputs and will output four two-channel I

2

S

streams at a sample rate of 48 kHz.

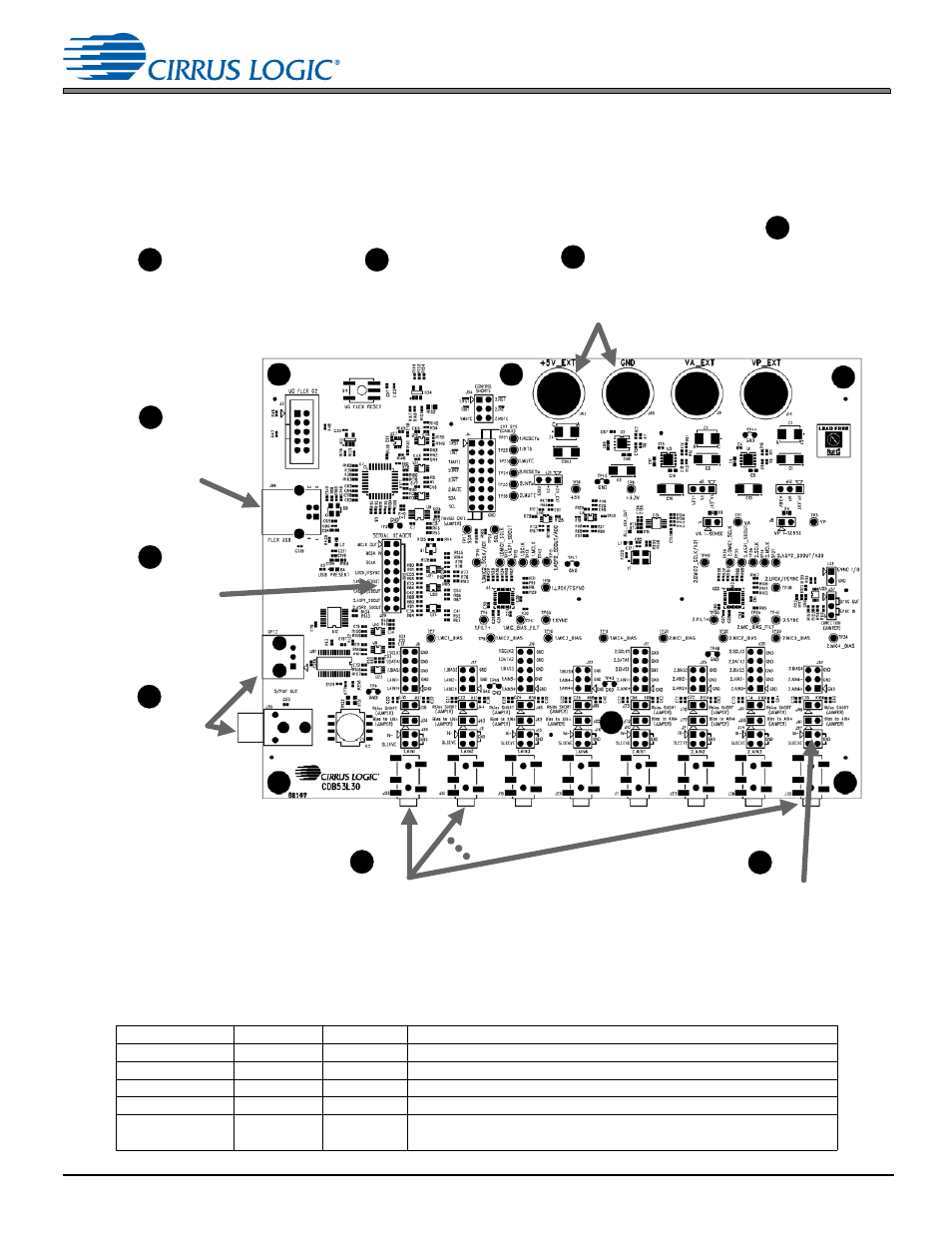

Figure 2-1. CDB53L30 Factory Default Jumper Settings

Table 2-1. Quick-Start Serial Header Signal Descriptions

Header Pin

Direction

Frequency

Description

MCLK IN

N/A

N/A

Not used

MCLK OUT

Output

12.288 MHz Master clock

SCLK

Output

3.072 MHz

I

2

S bit clock

LRCK/FSYNC

Output

48 kHz

I

2

S left/right clock

1.ASP1_SDOUT

Output

N/A

ASP1_SDOUT I

2

S data from CS53L30 #1;

Left channel corresponds to 1.AIN1, right channel corresponds to 1.AIN2

6

1

2

3

4

5

Return all jumpers to the

default factory settings. See

Table 3-2 and Figure 3-1.

Install the FlexGUI

software. See Section 4.1.

Connect a +5 V power
supply to the +5V_EXT
and GND binding posts .

Connect a USB cable
from a Windows-
compatible PC .

Start the FlexGUI software. Using
the “Quick -Setup” drop -down list on
the “Board Config” tab , restore the
factory register configuration called
“2. Analog in – I2S – 48k FS –
12.288M MCLK – Master mode” .

7

Connect differential or single -
ended signals to any of the
eight 1/8" input jacks. Full-
scale input corresponds to a
differential voltage of 1.48 Vpp.

When using a single -ended
source, shunt IN

to ground by

placing a jumper at the “IN

position (Pins 1 and 2) on the
Sleeve/IN- jumper pin block .

8

Connect a serial audio
analyzer to the Serial
Header . The header
signals are described
in Table 2-1.

9

Optional : Connect
an audio analyzer to
the S/PDIF RCA or
optical output . The
stereo pair at these
outputs corresponds
to analog input pair
1.AIN1 and 1.AIN2.

Return all jumpers to default
factory settings. See

Table 3-2

and

Fig. 3-1

.

Install the FlexGUI software.
See

Section 4.1

.

Connect a serial audio
analyzer to the Serial
Header. The header
signals are described
in

Table 2-1

.
