13 DS963DB1
CDB53L30
4.3 Using the FlexGUI Tabs
4.3.2 CS53L30 Config Tab
The “CS53L30-1 Config” and “CS53L30-2 Config” tabs contain the controls for configuring the CS53L30 power down state,
serial port settings, DMIC, mic bias, input pin bias, MUTE pin power down behavior, and multichip synchronization.
•
Power—Configures the power down controls and supply settings.
•
MCLK—Controls for MCLK configuration.
•
ASP—Settings for Audio Serial Port configuration.
•
DMIC—Settings for digital mic configuration.
•
Multichip Sync—Enables the multichip synchronization protocol (see the CS53L30 data sheet for details on using
the sync protocol).
•
Mic Bias—Power down and output voltage controls for the mic bias outputs.
•
MUTE—Configures the polarity of the MUTE input pin and the associated power down states which are active while
MUTE is asserted.
•
Input Pin Bias—Configures the bias for each input pin.
•
Refresh—Reads all registers in all devices and updates the values in the FlexGUI.
•
Reset CS53L30-1—Sends a reset pulse to CS53L30 #1.
•
Reset CS53L30-2—Sends a reset pulse to CS53L30 #2.

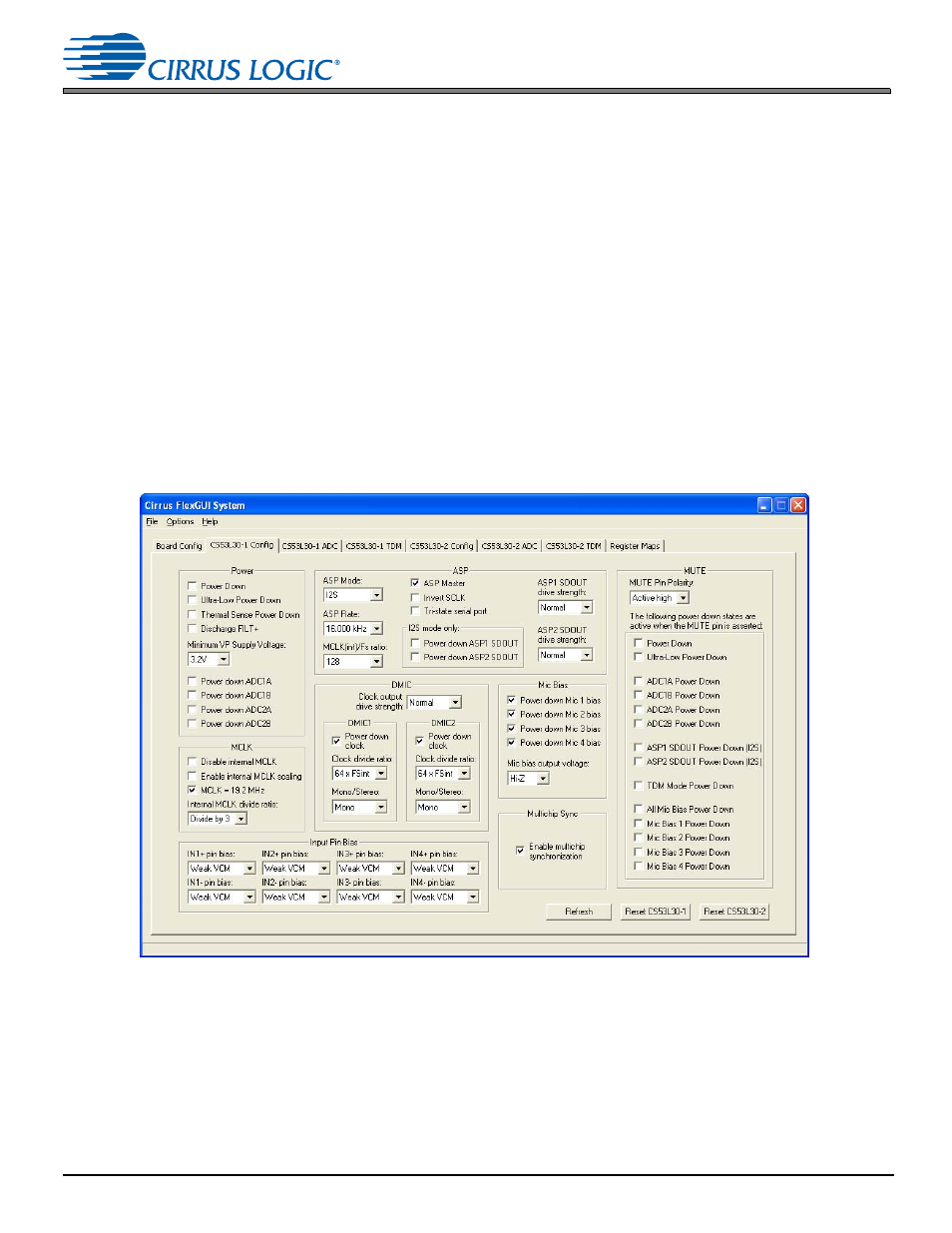

Figure 4-5. The “CS53L30 Config” Tab
