4.3 Using the FlexGUI Tabs
4.3.1 Board Config Tab
The “Board Config” tab contains the controls for configuring the MCLK source, S/PDIF transmitter, serial header, and
CS53L30 mute signals. The individual functions of this tab are described below.
•
Quick Setup—Drop-down box for selecting a factory preset register configuration.
•
MCLK—Settings for onboard MCLK frequency and MCLK routing.
•
S/PDIF Transmitter—Settings for the CS8406 S/PDIF transmitter. See
Section 1.5 for more information.
•
Mute Control—Configures the state of the microcontroller I/O pins which drive the CS53L30 MUTE inputs. To
enable these controls, jumper pin block J4 must have the corresponding “FlexGUI CNTL” jumpers placed.
•
Serial Header Direction—Configures the SCLK and LRCK/FSYNC signal direction for the serial audio header, J29.
When configured as Master, SCLK and LRCK/FSYNC are outputs from the CDB53L30. When configured as Slave,
SCLK and LRCK/FSYNC are inputs to the CDB53L30.
•
Device and Revision I.D.—Displays the CS53L30 revision information.
•
Refresh—Reads all registers in all devices and updates the values in the FlexGUI.
•
Reset CS53L30-1—Sends a reset pulse to CS53L30 #1.
•
Reset CS53L30-2—Sends a reset pulse to CS53L30 #2.

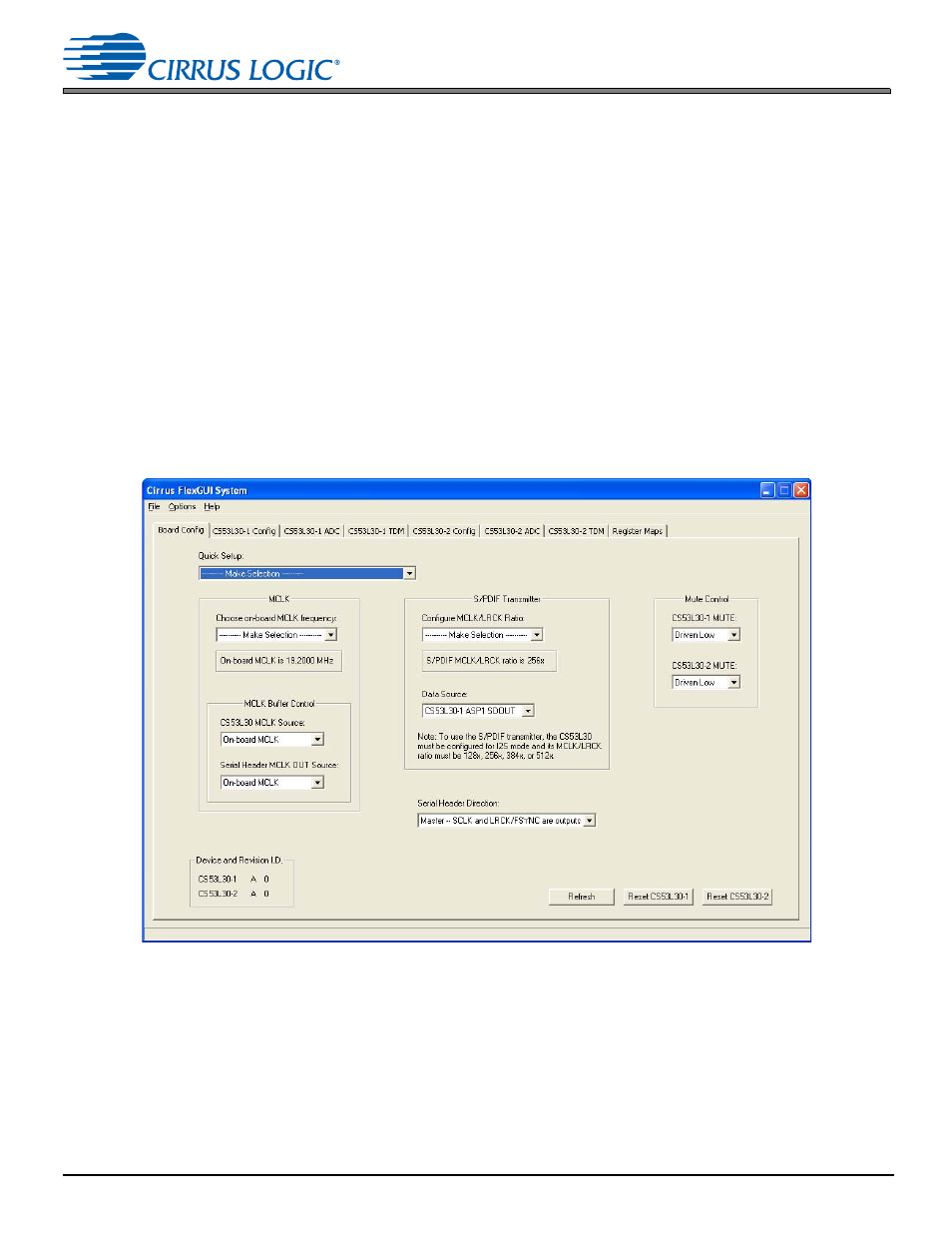

Figure 4-4. The “Board Config” Tab
