Cirrus Logic CDB53L30 User Manual

Cdb53l30, Evaluation board for the cs53l30, Features

background image

Copyright

Cirrus Logic, Inc. 2012

(All Rights Reserved)

http://www.cirrus.com

DS963DB1

DEC '12

Evaluation Board for the CS53L30

Features

• Analog or digital Inputs

— Analog microphone or line inputs via TRS 1/8” jacks

— Digital microphone inputs via stake headers

• Two CS53L30 devices support up to eight channels of

phase-aligned audio

• Onboard master clock generator

• S/PDIF transmitter interface via RCA and optical jacks

• External digital I/O via stake headers

— Serial audio port I/O

— Control signal I/O

— External I²C

control port I/O

• Flexible power-supply configuration

— USB or external power supply

• FlexGUI software control

— Windows

®

compatible

— Predefined and user-configurable scripts

Description

The CDB53L30 board is a dedicated platform for testing
and evaluating the CS53L30, a low-power, quad-channel
microphone ADC with TDM output.

To allow comprehensive testing of CS53L30 features and
performance, extensive software-configurable options are
available on the CDB53L30.

Software options, such as register settings for the
CS53L30, are configured with the FlexGUI software, which
communicates with the CDB53L30 via USB from a
Windows

®

-compatible computer. In addition, digital I/O

headers on the CDB53L30 allow external control signals
(from a host processor, for example) to configure and
interface with the CS53L30 directly without the use of
FlexGUI.

The CDB53L30 also serves as the component and layout
reference for the CS53L30.

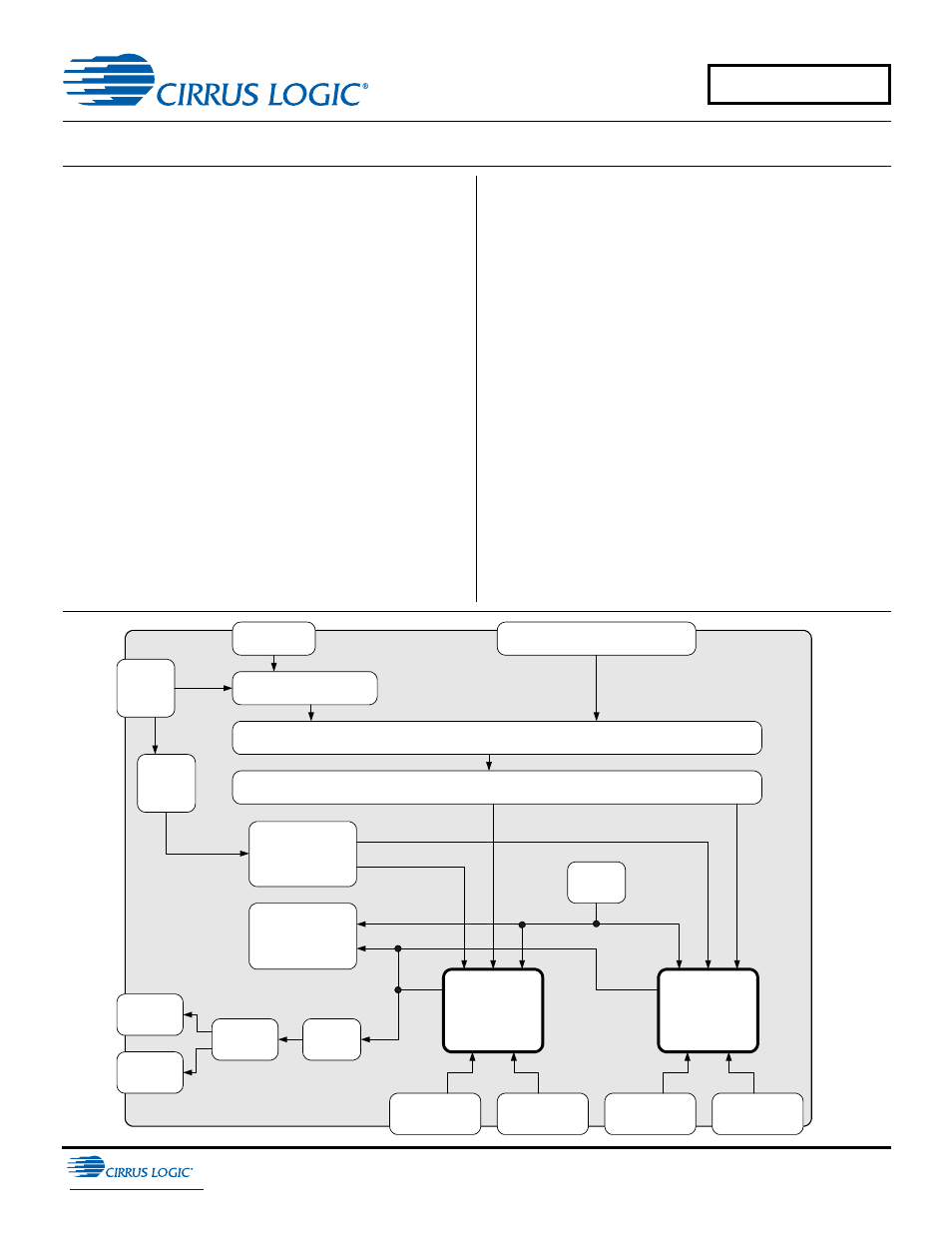

Ordering information

CDB53L30 Evaluation Board

USB

+5V, GND

(Binding Post)

VA, VP

(Binding Post)

Regulators

Power Source Selection (Headers)

CS53L30

#1

Current Sense Resistors for Power Measurement (Bypassable)

S/PDIF Out

(Optical)

S/PDIF Out

(RCA)

CS8406

Serial Audio I/O

(Header)

Micro-

Controller

Analog In

(1/8" TRS,

Header)

Digital Mic In

(Header)

MCLK

Generator

CS53L30

#2

Analog In

(1/8" TRS,

Header)

Digital Mic In

(Header)

Mux

I2C and Control I/O

(Header)

Serial Audio

Control

Control

Po
w

e

r

Po
w

e

r

MCLK

Control

VBUS

CDB53L30
