Cdb53l30, 6 schematics, Figure 6-2. inputs – Cirrus Logic CDB53L30 User Manual

Page 23: Dc blocking capacitors, Input 2 (analog), Input 1 (analog/digital), Input 4 (analog), Input 3 (analog/digital)

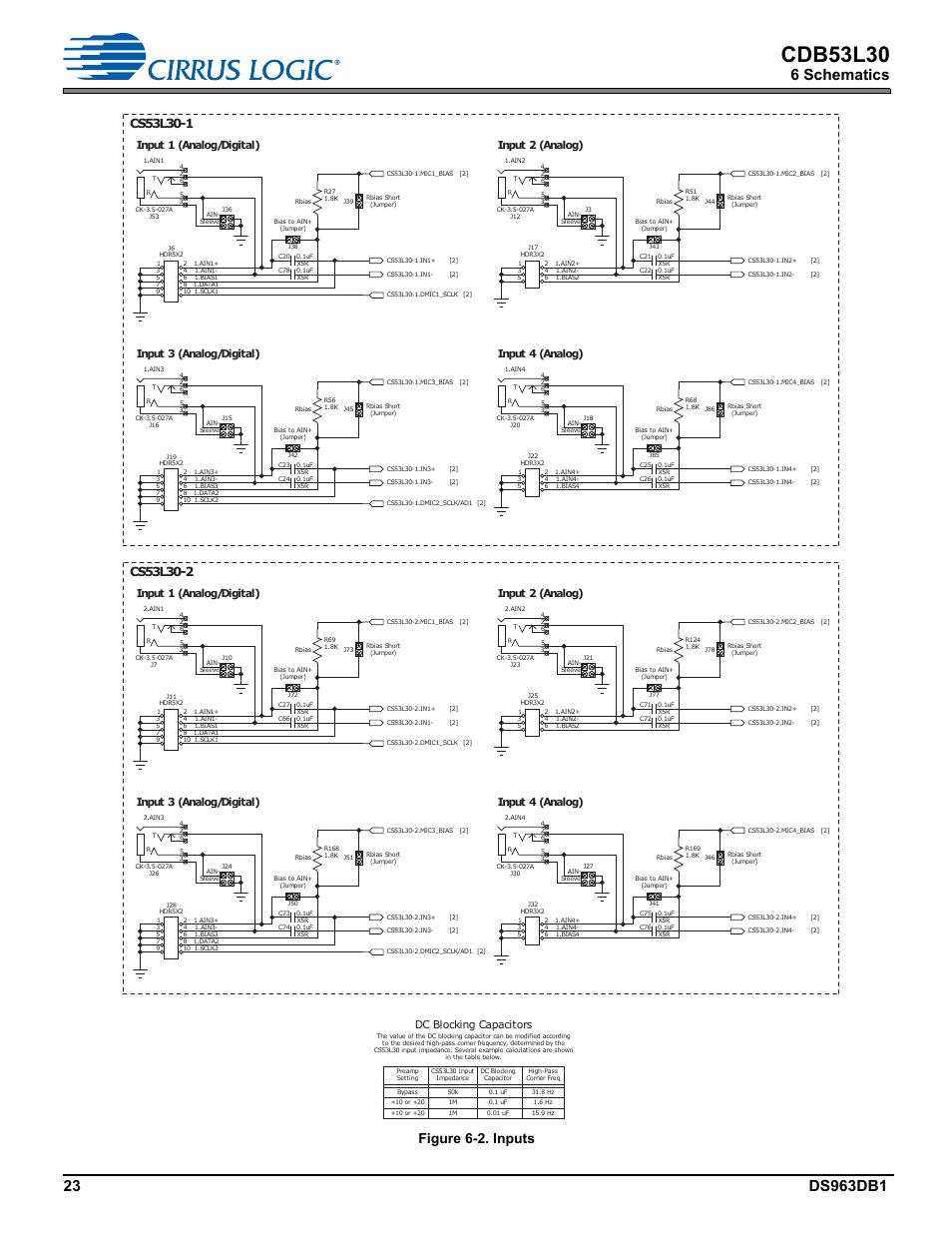

Cdb53l30, 6 schematics, Figure 6-2. inputs | Dc blocking capacitors, Input 2 (analog), Input 1 (analog/digital), Input 4 (analog), Input 3 (analog/digital) | Cirrus Logic CDB53L30 User Manual | Page 23 / 37 Cdb53l30, 6 schematics, Figure 6-2. inputs | Dc blocking capacitors, Input 2 (analog), Input 1 (analog/digital), Input 4 (analog), Input 3 (analog/digital) | Cirrus Logic CDB53L30 User Manual | Page 23 / 37
