CS5378
DS639F3 85
22.PACKAGE DIMENSIONS
INCHES MILLIMETERS NOTE
DIM MIN NOM MAX MIN NOM MAX
A -- -- 0.084 -- -- 2.13
A1 0.002 0.006 0.010 0.05 0.15 0.25
A2 0.064 0.069 0.074 1.62 1.75 1.88
b 0.009 -- 0.015 0.22 -- 0.38 2,3
D 0.390 0.4015 0.413 9.90 10.20 10.50 1
E 0.291 0.307 0.323 7.40 7.80 8.20
E1 0.197 0.209 0.220 5.00 5.30 5.60 1
e 0.022 0.026 0.030 0.55 0.65 0.75
L 0.025 0.0354 0.041 0.63 0.90 1.03
∝ 0° 4° 8° 0° 4° 8°
JEDEC #: MO-150
Controlling Dimension is Millimeters

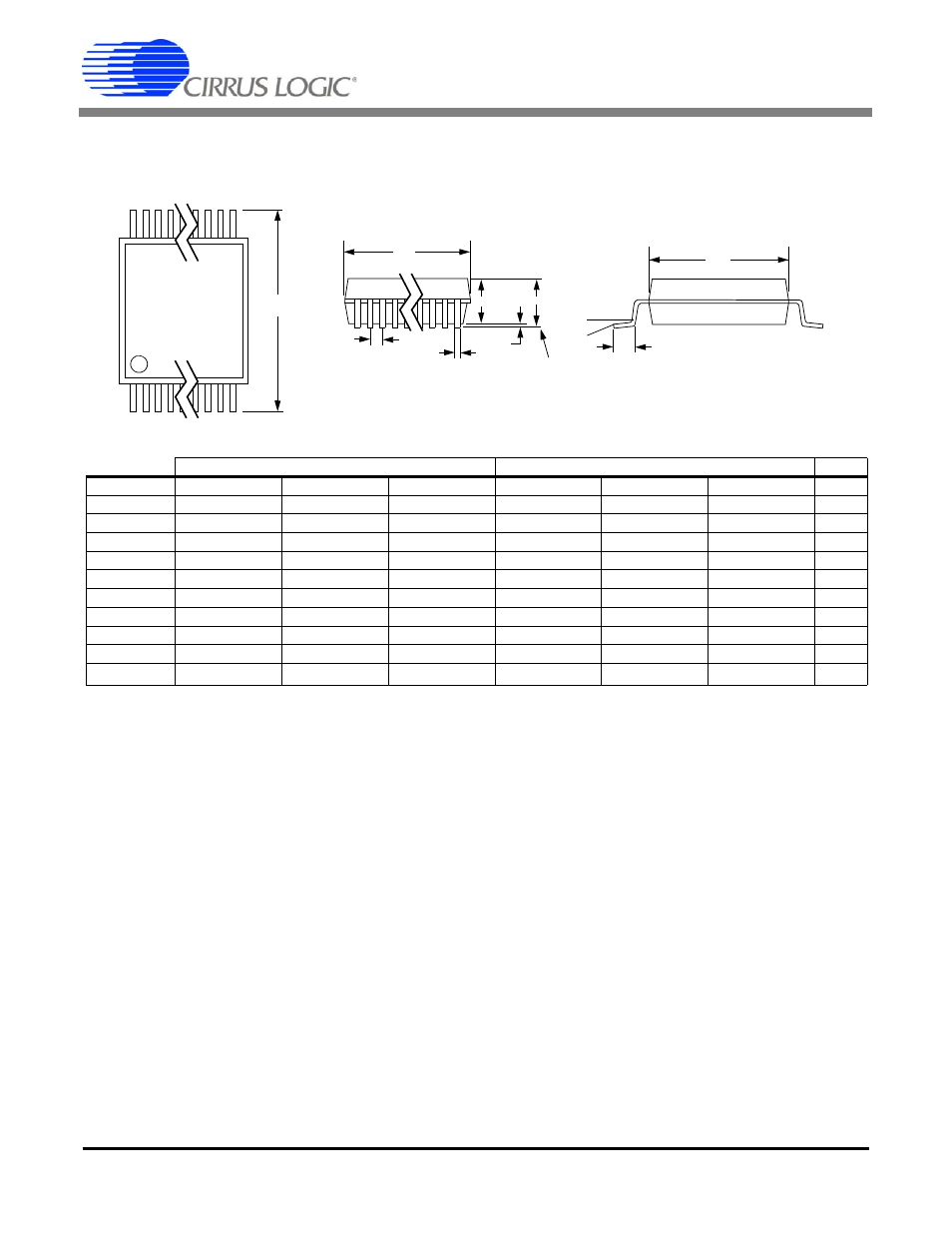

28L SSOP PACKAGE DRAWING
E
N
1 2 3
e b
2
A1
A2 A
D
SEATING
PLANE
E1 1
L
SIDE VIEW
END VIEW
TOP VIEW
∝
