CS4205

DS489PP4

3. DIGITAL SIGNAL PATHS

The CS4205 includes a number of internal digital

signal path options. Figure 9 shows the principal

signal flow options through one channel of the de-

vice. Four commonly used signal flow modes are

detailed in the following sections. The signal flow

modes are controlled through the bits in the AC

Mode Control Register (Index 5Eh). The bit config-

uration for each detailed mode is listed in Table 1

on page 17.

3.1

Analog Centric Mode

Analog centric mode is detailed in Figure 10 on
page 18. In this mode, all the digital sources are
pre-mixed in the digital mixer and sent to the
DACs. The DAC outputs are mixed with the analog
sources in the analog mixer. The ADCs send cap-
tured data directly to the host. The ADC mux is
used to select a single source or the output of the in-
put mixer for capture. In the analog centric mode,
effects processing is only available on digital
sources.

Signal Processing Engine

SRC

DAC

LINE_OUT

MONO_OUT

ADC

½ ADC

SRC

½ SRC

I²S

IN1

I²S

IN2

I²S

IN3

ASRC

VOL

DIG

EFX

I²S

OUT1

S/PDIF

OUT

I²S

OUT2

VOL

DACS

CAPS

MICS

DDM

SDOS

SPDS

AC-Link

front

L/R

cap

mic

cap

surr

c+lfe

MIXER

LINE

VIDEO

AUX

MIC

mux out

mix out

mic out

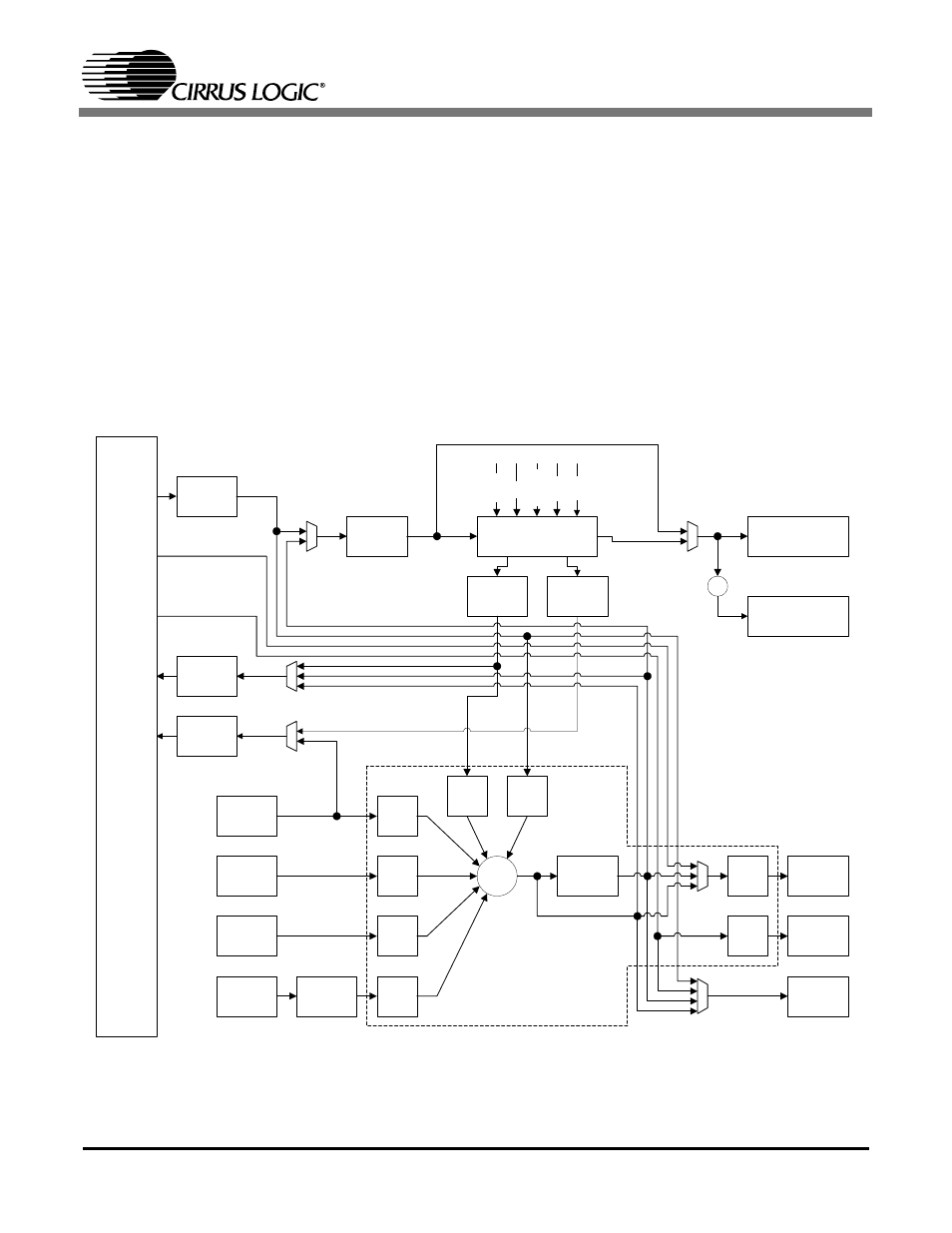

Figure 9. Digital Signal Path Overview
