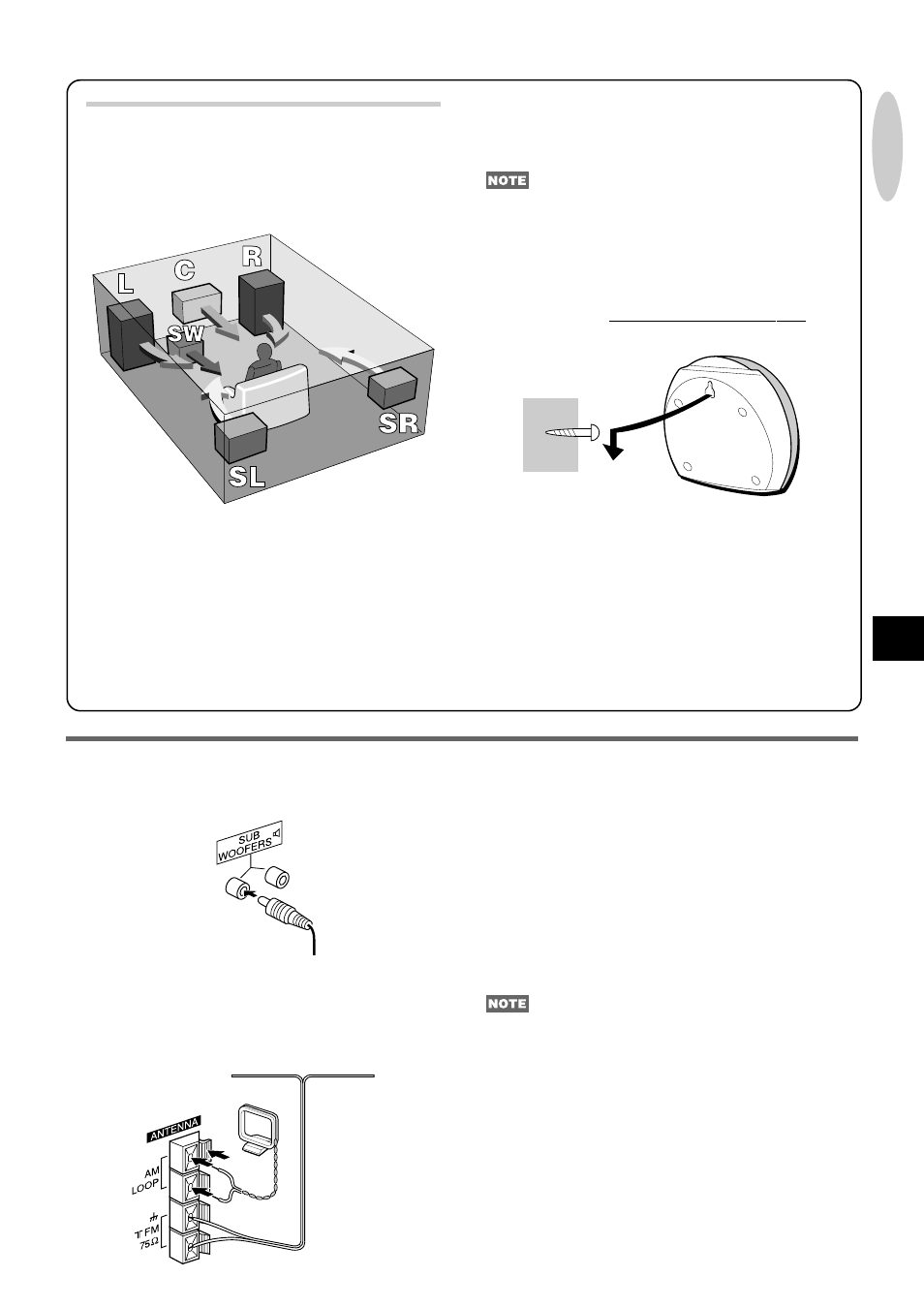

POSITIONING THE SPEAKERS
To achieve the optimum effects obtainable with the DOLBY
PRO LOGIC system, it is important to position the speakers
properly. Refer to the following illustration to find out the best
location in your room.
L&R: Front speakers
C: Center speaker
Position in the center of the two front speakers. In addition,
position on or below the TV set, if connecting a TV set to
the unit.
SL&SR:
Surround speakers
Place the surround speakers directly to the side of or
slightly behind the listening area. Align them horizontally,
about 1 meter (3.2 feet) above ear height.
SW: Subwoofer (for NSX-HMT76 only)
Place the subwoofer on the floor close to a wall or in a corner
of the room.
• No sound is heard from the center and surround speakers
when the DOLBY PRO LOGIC, the SURROUND system
and the 5.1 CH (page 29) are set to off.
• The center speaker sounds when the DOLBY PRO LOGIC
or the 5.1 CH (page 29) is set to on.
To mount the surround speakers on the wall
Mount each speaker on a spot that can hold its weight.
5 5 5 5 5
Connect the subwoofer (only for NSX-HMT76).
Connect the subwoofer cord to SUBWOOFERS terminal.
You can connect to either of the two terminals.
• Refer to the Operating Instructions of TS-W45 for details.
6 6 6 6 6
Connect the supplied antennas.
Connect the FM antenna to FM 75 Ω terminals and the AM
antenna to AM LOOP terminals.
7 7 7 7 7
Connect the video equipment.
Connect VIDEO/AUX jack of this unit to the audio output
jack of the video equipment with an optional audio connecting
cord.
8 8 8 8 8
Connect the television to the video equipment.
Refer to the Operating Instructions of the connected
equipment for details.
9 9 9 9 9
Connect the AC cord to an AC outlet.
The DEMO will begin when the AC cord is plugged into an
AC outlet for the first time. To deactivate the DEMO, set the
clock.
• Do not leave objects generating magnetism, such as credit
cards, near the speakers, as these objects may be damaged.
• Do not bring the FM antenna near metal objects or curtain rails.
• Do not bring the AM antenna near other optional equipment,
the stereo system itself, the AC cord or speaker cords, since
noise will be picked up.
• Do not unwind the AM antenna wire.
