Kramer Electronics TP-107AV - Manual (Page 29)

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Flash Memory Upgrade
26
stage becomes colored green
1
.
When the operation is completed, all 4 check-boxes will be colored green
and the status bar message: Memory Verify Pass appears
2
:
TP107.hex

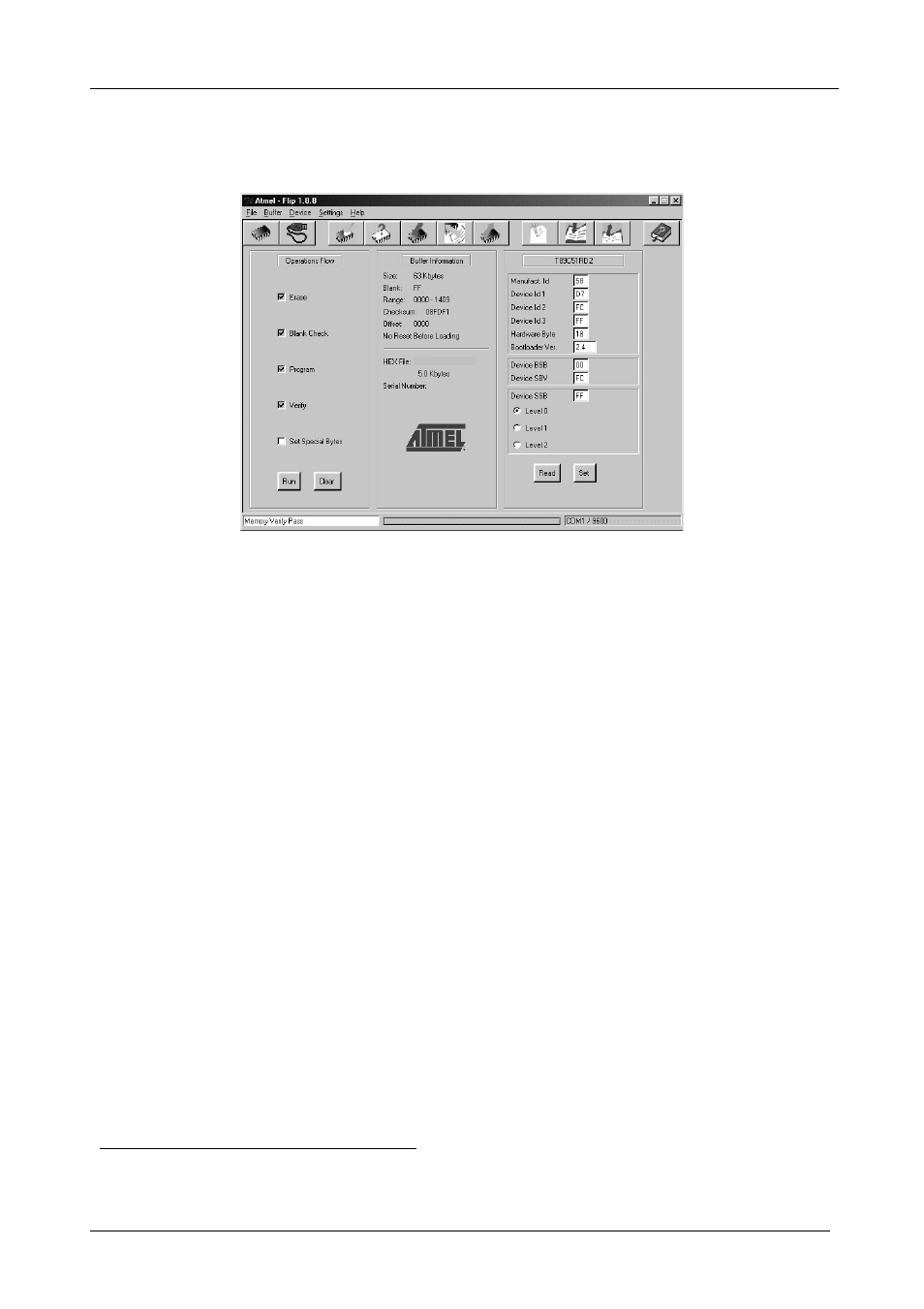

Figure 26: Atmel – Flip Window (Operation Completed)
10. Close the “Atmel – Flip” window.
11. Disconnect the power on the
TP-107V.
12. If required, disconnect the RS-232 rear panel port on the TP-107V unit
from the Null-modem adapter.
13. Slide the underside PROGRAM switch to the normal position.
14. Connect the power to the
TP-107V.
1 See also the blue progress indicator on the status bar
2 If an error message: “Not Finished” shows, click Run again
