KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your Line Transmitters and Presentation Controllers
14

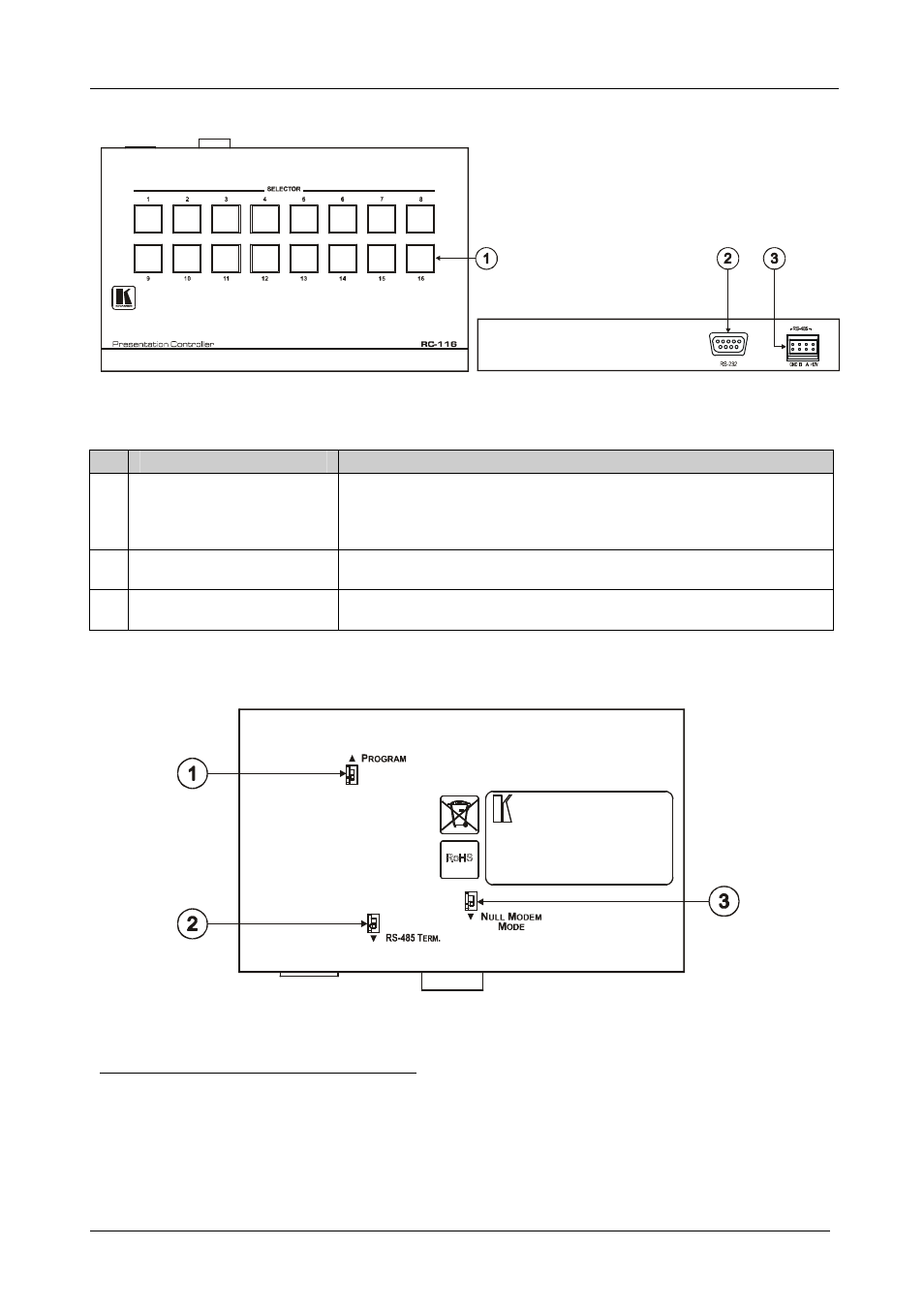

Figure 10 and Table 9 define the RC-116:
Figure 10: RC-116 Presentation Controller
Table 9: RC-108/RC-116 Presentation Controller Features
# Feature Function
1 SELECTOR Button 1 Press to give priority to a TP-107V/TP-107AV unit, according to its
machine number
Press and hold 2 to toggle between releasing control 3 over the TP-107V
/ TP-107AV and regaining control
2 RS-232 9-pin D-sub
Connector
Connects to a PC or a Remote Controller, and also for upgrading the
firmware (see section 6)
3 RS-485 and 12V DC PINs PIN GND is for the Ground connection; PIN B (-) and PIN A (+) are for
RS-485, and PIN +12V is for powering the unit
Figure 11, Figure 12 and Table 10 define the underside of the RC-108 and the
RC-116:
Figure 11: RC-108 Underside Panel
1 From 1 to 8 for the RC-108, and from 1 to 16 for the RC-116
2 For about 2 seconds
3 For example, to let unit 6 gain control, press the selector button 6 (button 6 illuminates). To let unit 7 gain control, press the
selector button 7 (button 7 illuminates and button 6 no longer illuminates). To release control over the units, press and hold
the selected button (button 7 in this example) until it no longer illuminates
