Upgrading Firmware
27
VS808YC.hex
A

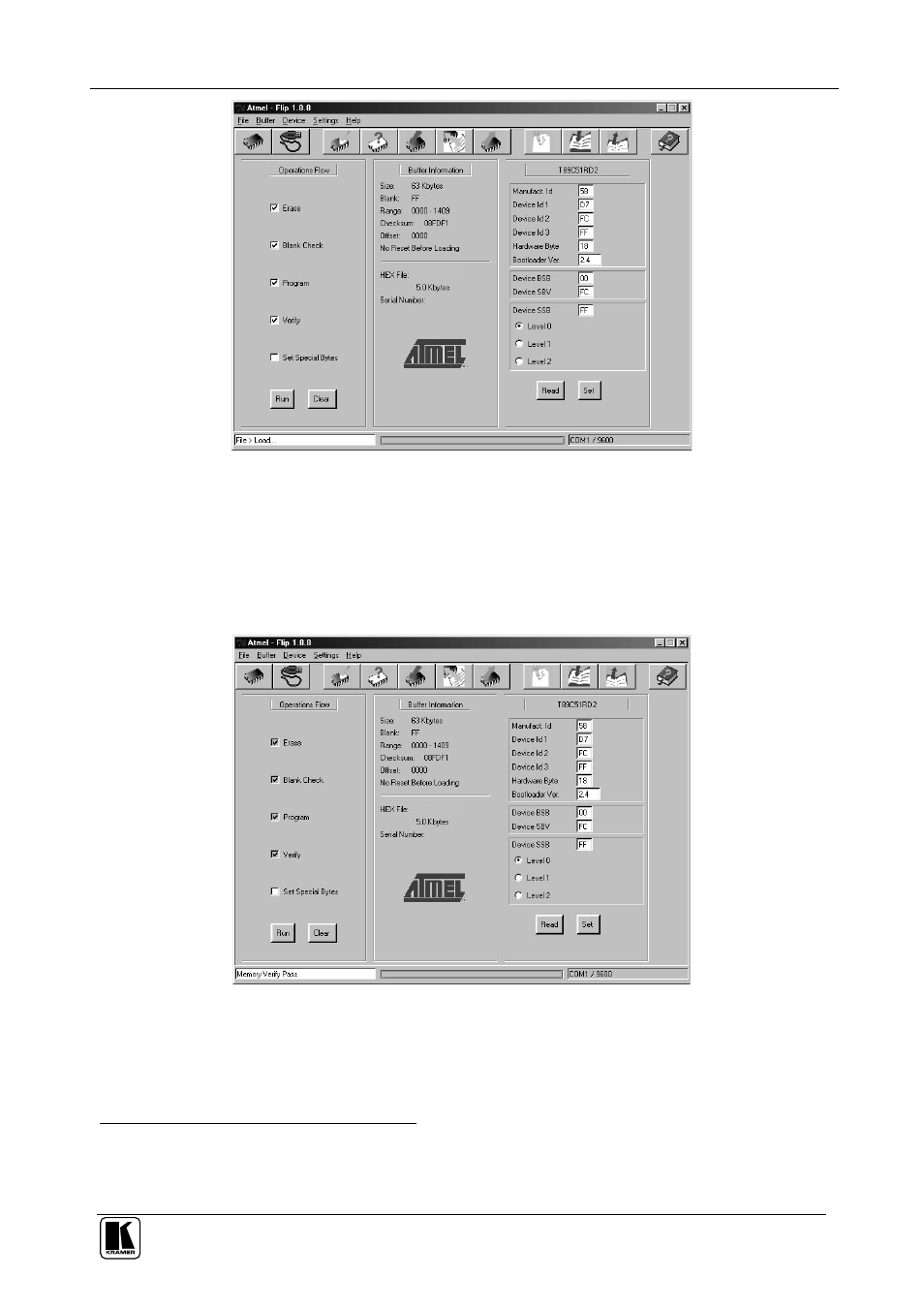

Figure 19: Atmel – Flip Window (Connected)
9. Click Run.
After each stage of the operation is completed, the check box for that
stage becomes colored green1.
When the operation is completed, all 4 check boxes will be colored green
and the status bar message: Memory Verify Pass appears2:
VS808YC.hex
A
Figure 20: Atmel – Flip Window (Operation Completed)
10. On the rear panel, release the Flash Program button
3
(to Normal), using a
screwdriver.
1 See also the blue progress indicator on the status bar
2 If an error message: “ Not Finished” shows, click Run again
3 Item 7 in Table 2
