Connecting the VS-808YC
13
6.4 Connecting the Balanced/Unbalanced Stereo Audio Input/Output

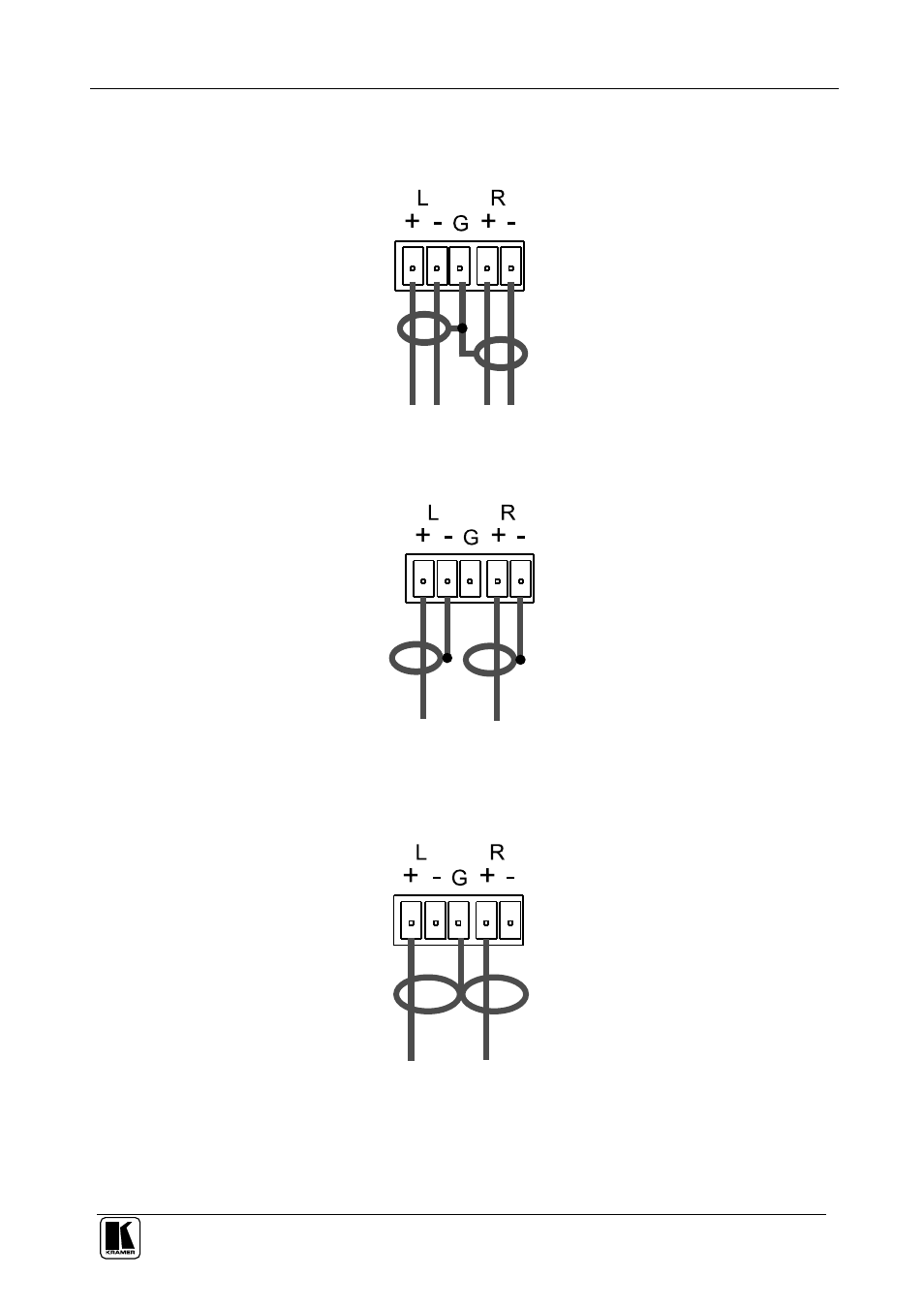

Figure 6 illustrates how to wire a balanced input/output connection:
Figure 6: Connecting the Balanced Stereo Audio Input/Output
Figure 7 illustrates how to wire an unbalanced input:
Figure 7: Connecting the Unbalanced Stereo Audio Input
Figure 8 illustrates how to wire an unbalanced acceptor to the balanced output
of the unit:
Figure 8: Connecting the Unbalanced Stereo Audio Output
