Firmware Upgrading

36

6. The Open File window opens. Select the correct HEX file that contains

the updated version of the firmware for

VP-1201 (for example

1201M_V1p2.hex) and click Open.

7. Press the keyboard shortcut key F3 (or select the “ Communication /

RS232” command from the Settings menu, or press the keys: Alt SCR).

The “ RS232” window appears. Change the COM port according to the

configuration of your computer and select the 9600 baud rate:

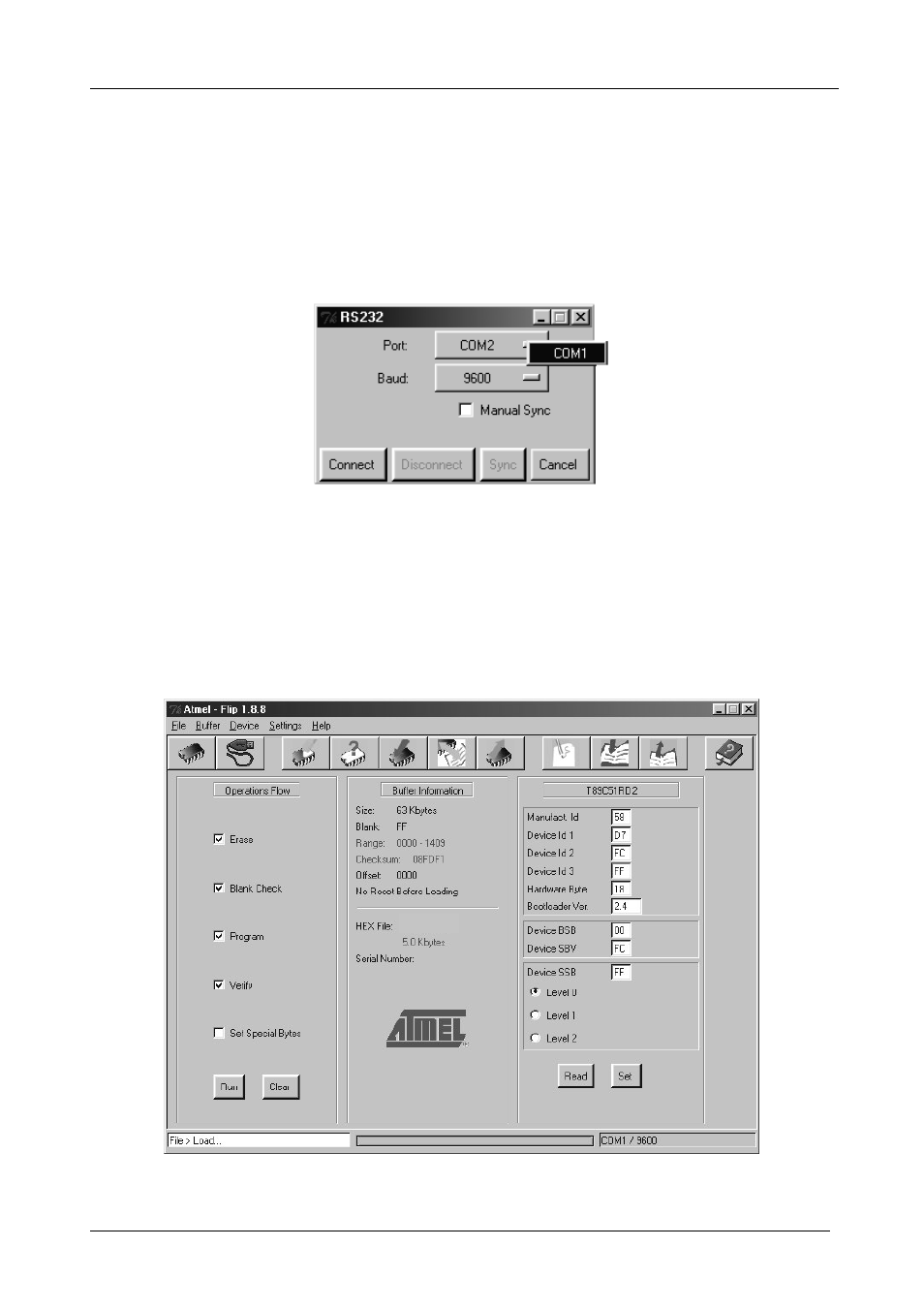

Figure 35: RS-232 Window

8. Click Connect.

In the “ Atmel – Flip” window, in the Operations Flow column, the Run

button is active, and the name of the chip appears as the name of the

third column: AT89C51RD2.

Verify that in the Buffer Information column, the

HEX File: VP1201.hex” appears.

A

VP1201.hex

Figure 36: Atmel – Flip Window (Connected)
