61200290L1-1G

5-1

ECTION

5, S

TATISTICS

Section 5

Statistics

1. INTRODUCTION

To access Statistics menu, select

Statistics

from the Main Menu. See

Figure 5-1

. Alarm information and

performance parameters are available for both the near and far ends of the network. Information is also
given for the individual DS2s and T1/E1 lines.

2. VIEWING STATISTICAL INFORMATION

Statistical information is given in screens based on these time periods:

• The current 15-minute interval

• A 24-hour history (divided into 96 15-minute intervals)

• The totals for the previous 24 hours

• A cumulative alarm count is given (this count continues indefinitely until reset by the user)

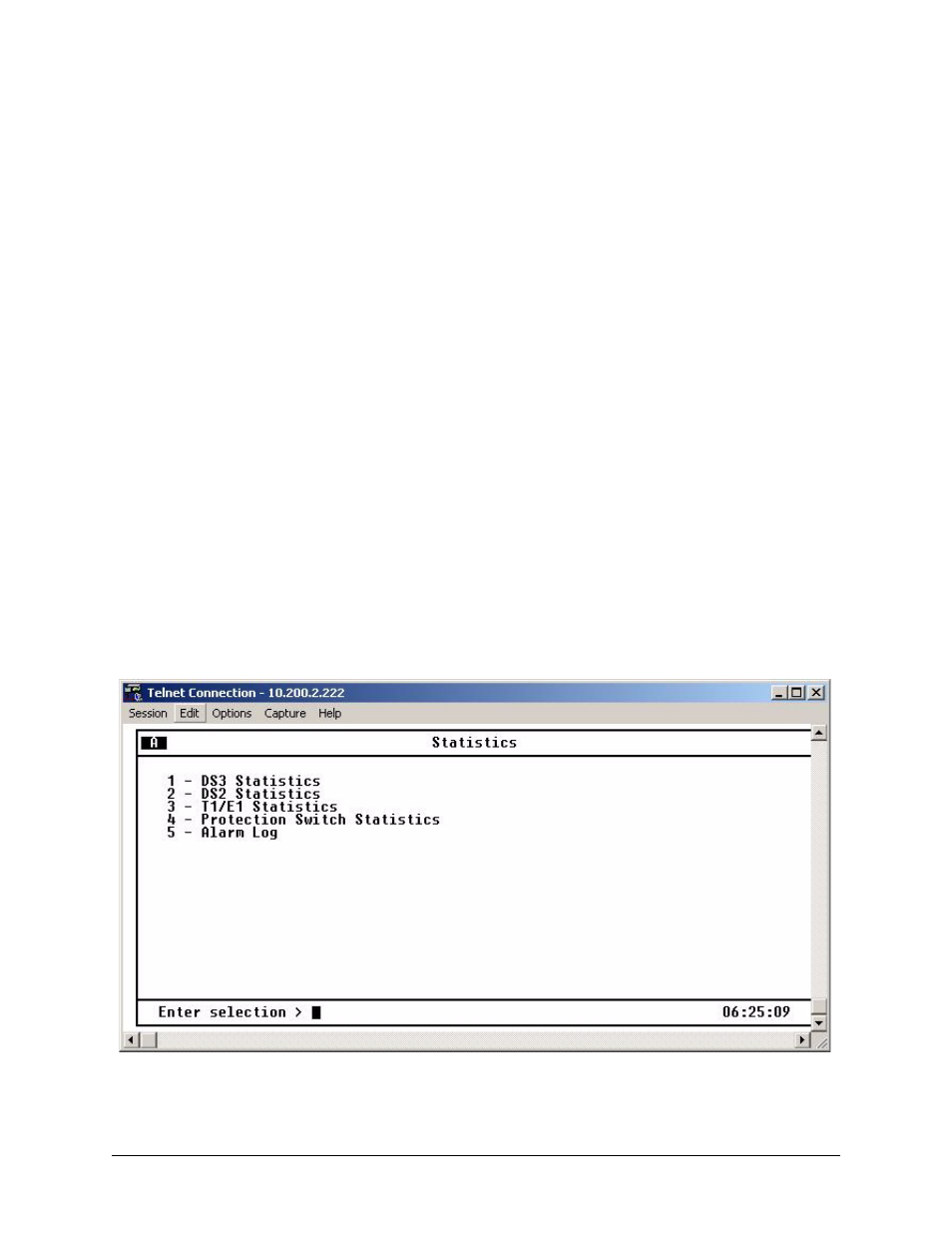

Figure 5-1. Statistics Menu
