1. INTRODUCTION
The Loopback menu initiates loopback tests from the MX2800.
shows the main Loopback
menu. To initiate a loopback, select
Loopback Menu.
To locate descriptions of the types of loopback tests that are available, find
T1/E1
,
DS2
, or
DS3 Loopback
descriptions
.
Next, select by number the type of loopback for a description.
Descriptions and testing diagrams of the loopback tests are provided in the following subsections:
•
•
•

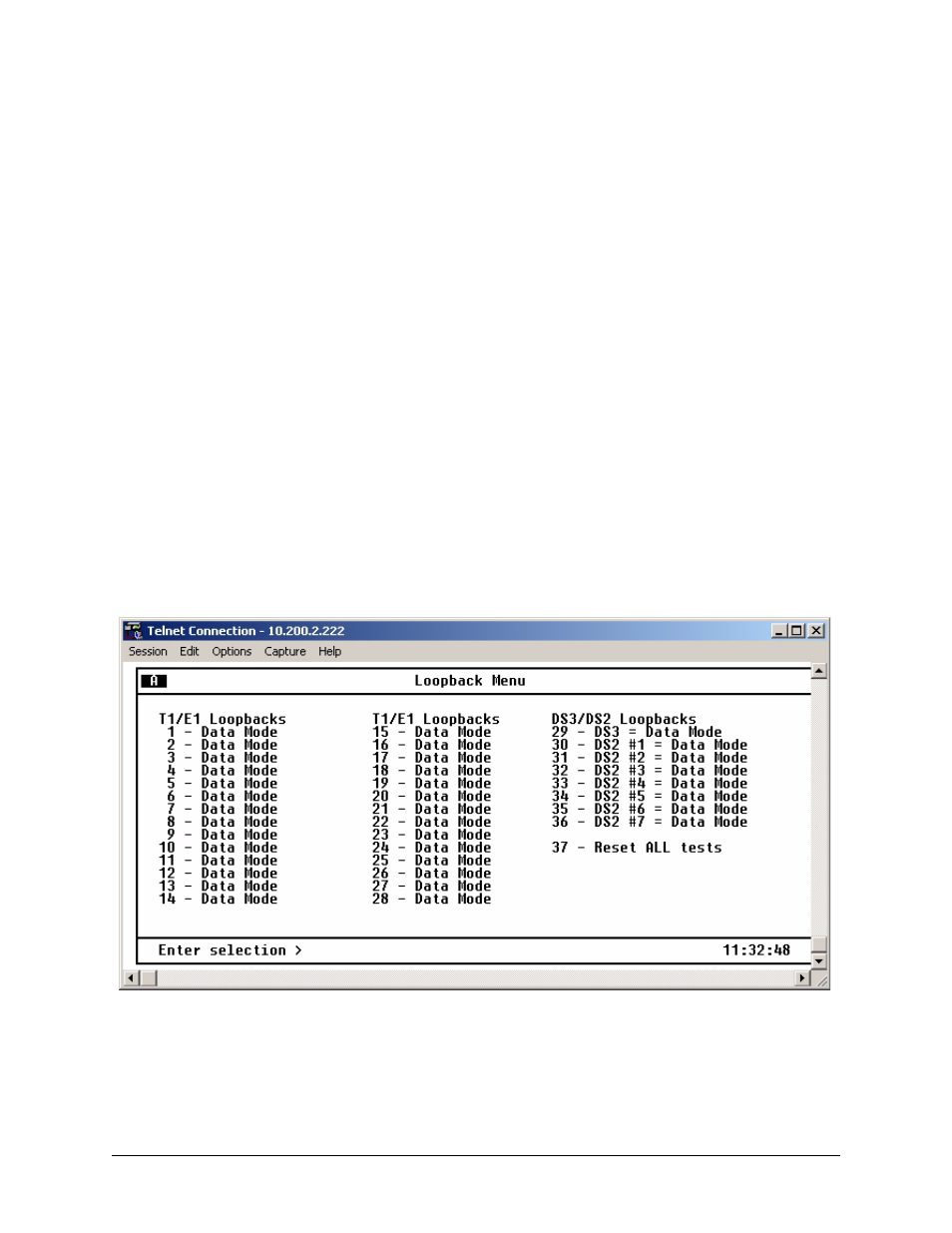

Figure 6-1. Loopback Menu
