MX2800 M13 Multiplexer User Manual
Installation and Operation, Section 2
61200290L1-1G
2-5
Connecting the Breakout Panel
The optional breakout panel (P/N 1200291L1) connects to the MX2800 via the
IN
and
OUT
amphenol
connectors located on the back of the unit and provides 28 RJ connectors for the individual T1s/E1s.
Shipment includes two six-foot, 64-pin to 64-pin amphenol cables for direct cabling to the MX2800.
Connect the breakout panel’s
IN
amphenol connector to the MX2800’s
IN
amphenol connector and the
breakout panel’s
OUT
amphenol connector to the MX2800’s
OUT
amphenol connector. See

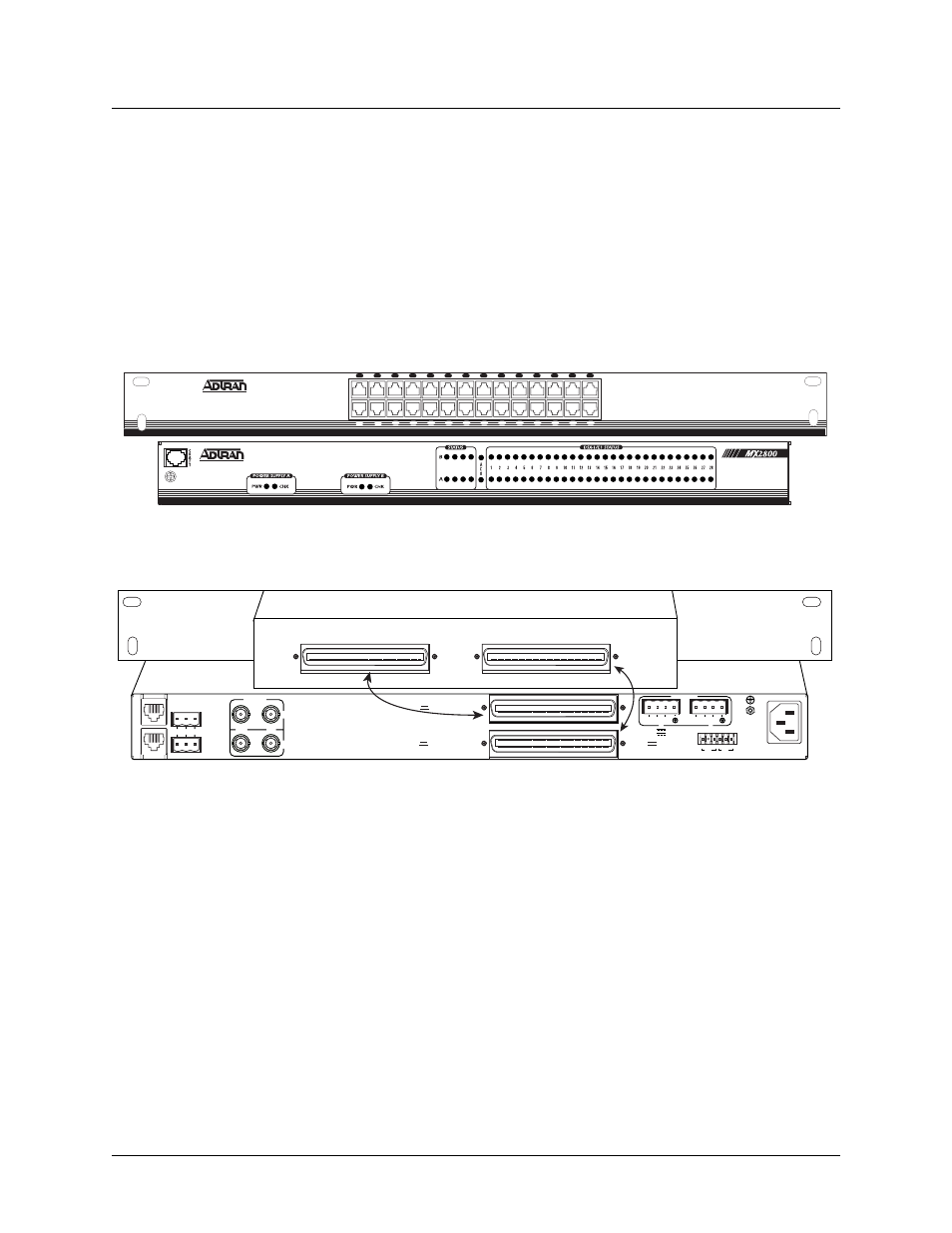

Figure 2-2. The Breakout Panel
Connecting the E1 Patch Panel
The optional E1 patch panel (P/N 1200291L5) connects to the MX2800 via the
TX
and
RX
amphenol
connectors located on the back of the unit and provides 28 pairs of BNC connectors for the individual
T1/E1s. Shipment includes two 6-foot, 64-pin to 64-pin amphenol cables for direct cabling to the MX2800.
Connect the E1 patch panel’s
TX
amphenol connector to the MX2800’s
IN
amphenol connector and the E1
patch panel’s
RX
amphenol connector to the MX2800's
OUT
amphenol connector.
N
E
T
A
L
M
P
R
F
A
C
T
1
3
5
7
9
11
13
15
17
19
21
23
25
27
2
4
6
8
10
12
14
16
18
20
22
24
26
28
IN
OUT
Cable 2
Cable 1
NET
DC POWER
115 AC 50/60Hz
0.8A
PWR
FAIL
+
T
R
S
T
R
CLK
A
CLK
B
S
–
L
A
N
NONCRITICAL
DSX-1/E1
(OUT)
DSX-1/E1
(IN)
NO COM NC
CRITICAL
M
O
D
E
M
OUT
IN
A
B
A
B
DS3/STS-1
PWR
FAIL
+
–
USE COPPER
CONDUCT
ORS ONLY!
-48V 0.7A
+24V 1.5A
FRONT VIEW
REAR VIEW
