3-38 61200290L1-1G
Section 3, Configuration MX2800 M13 Multiplexer User Manual
Auto Save
Enable this function to save the configuration every five minutes and upon logout. Disable this option if
the configuration is not to be saved. The configuration may be saved manually from the Configuration
menu.
Craft Baud Rate
This value sets the rate at AUTO, 9600, 19200, 38400, and 57600 baud rate.
5. UTILITIES
The System Utilities menu, see Figure 3-17 , is used to view MX2800 system information for both control-
ler cards:
• Self-test results
• Revert to default configuration settings
• Flash-load a new version of software
• Transfer configuration information to and from a Trivial File Transfer Protocol (TFTP) server
• Reset the system

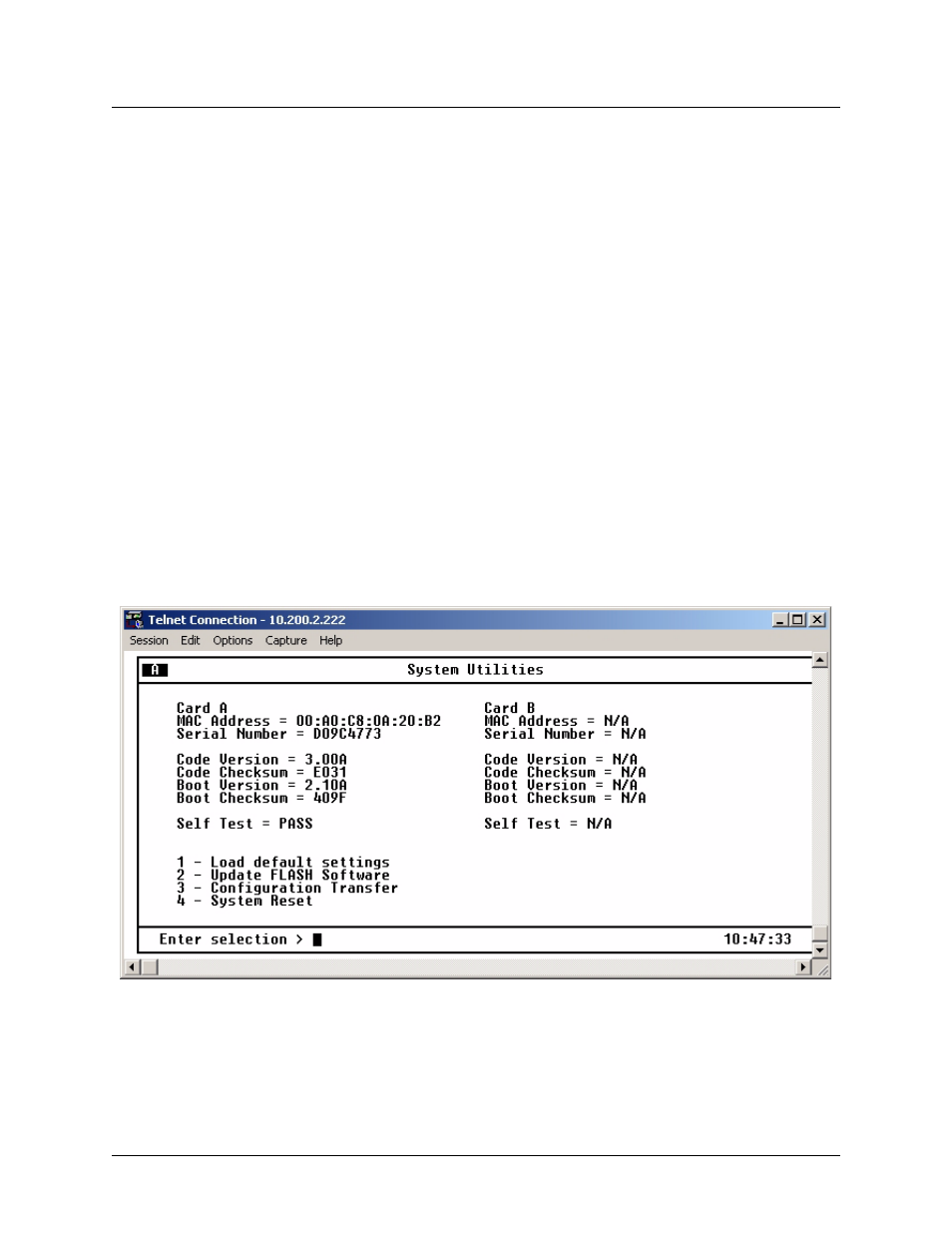

Figure 3-17. System Utilities Menu
Possible results for the self-test are listed in Table 3-7 on page 3-39.
