Commissioning, Startup, Operation, and Shutdown

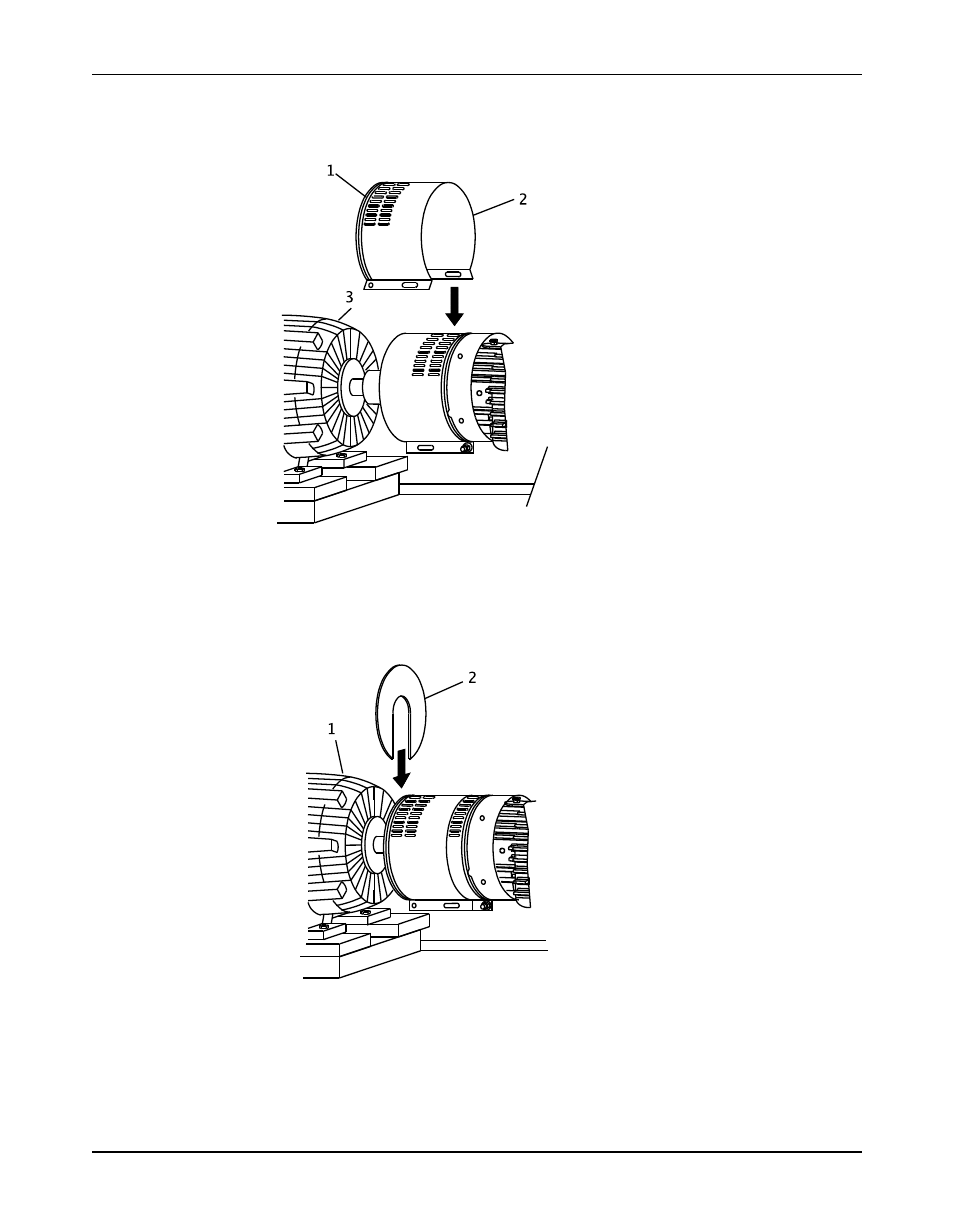

8. Slightly spread the opening of the remaining coupling guard half and place it over the
installed coupling guard half so that the annular groove in the remaining coupling guard half
faces the driver.
1. Annular groove
2. Coupling guard half
3. Driver
9. Place the end plate over the driver shaft and locate the end plate in the annular groove at
the rear of the coupling guard half.
1. Annular groove
2. End plate
10. Repeat steps 5 through 7 for the rear end of the coupling guard half, except that you hand
tighten the nut.
