Commissioning, Startup, Operation, and Shutdown

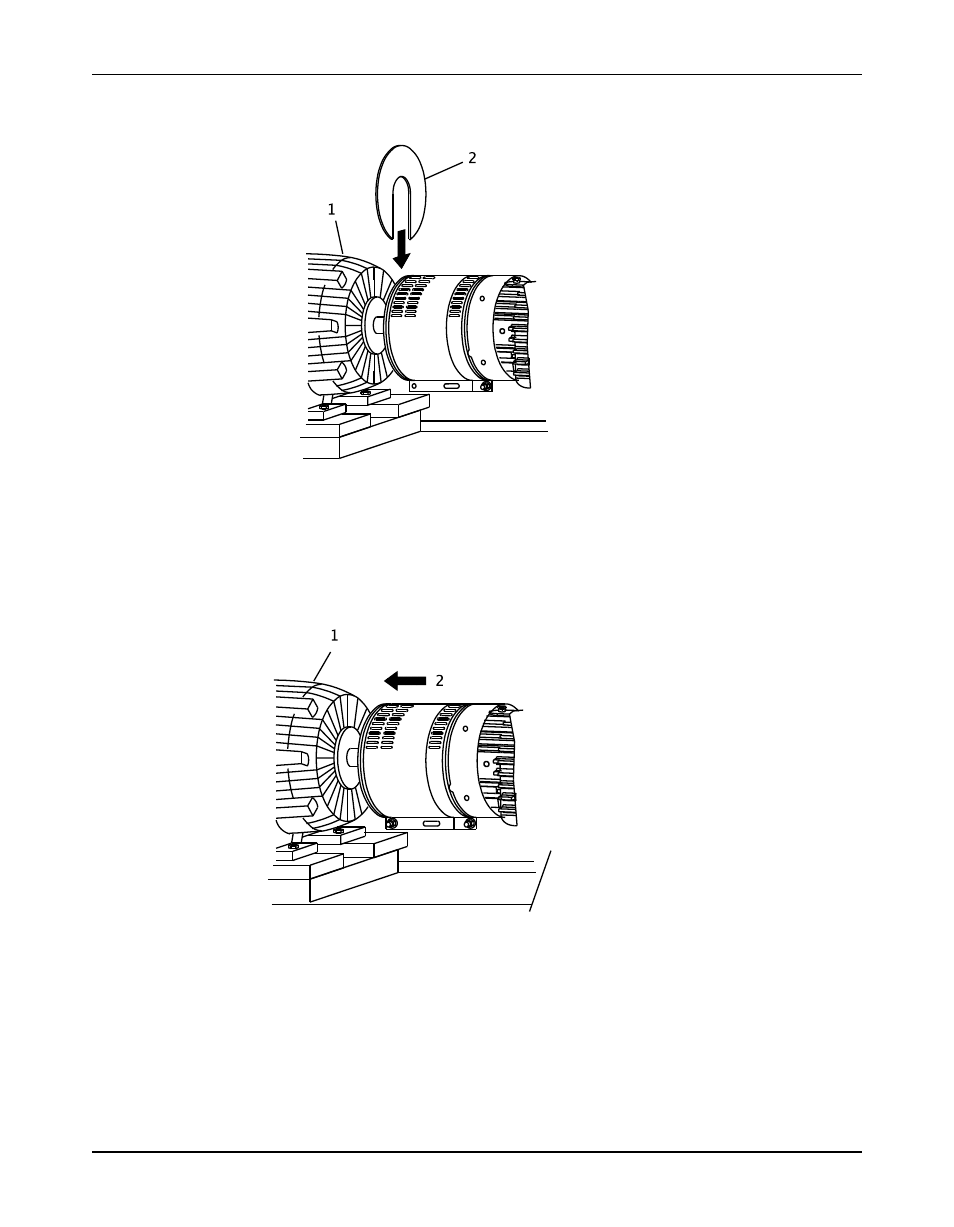

7. Place the end plate over the driver shaft and locate the end plate in the annular groove at

the rear of the coupling guard half.

1. Annular groove
2. End plate

8. Repeat steps 3 through 5 for the rear end of the coupling guard half, except that you hand

tighten the nut.

9. Slide the rear coupling guard half towards the motor so that it completely covers the shafts

and coupling.

1. Driver
2. Slide to fit

10. Repeat steps 3 through 5 for the center slots in the coupling guard.
11. Firmly tighten all nuts on the guard assembly.

Install the coupling guard with the optional air cooling package

1. Is the deflector-fan guard support installed?

• If yes: Make any necessary coupling adjustments and then proceed to step 2.

• If no: Complete the following steps:
