Product Description
Nameplate types
Nameplate
Description
Pump casing
Provides information about the hydraulic characteristics of the pump.
The formula for the pump size is: Discharge x Suction - Nominal Maximum Impeller
Diameter in inches.
(Example: 2x3-8)
ATEX
If applicable, your pump unit might have an ATEX nameplate affixed to the pump, the
baseplate, or the discharge head. The nameplate provides information about the
ATEX specifications of this pump.
IECEx
If applicable, your pump unit might have the following IECEx nameplate affixed to the
pump and/or baseplate. The nameplate provides information about the IECEx
specifications of this pump.

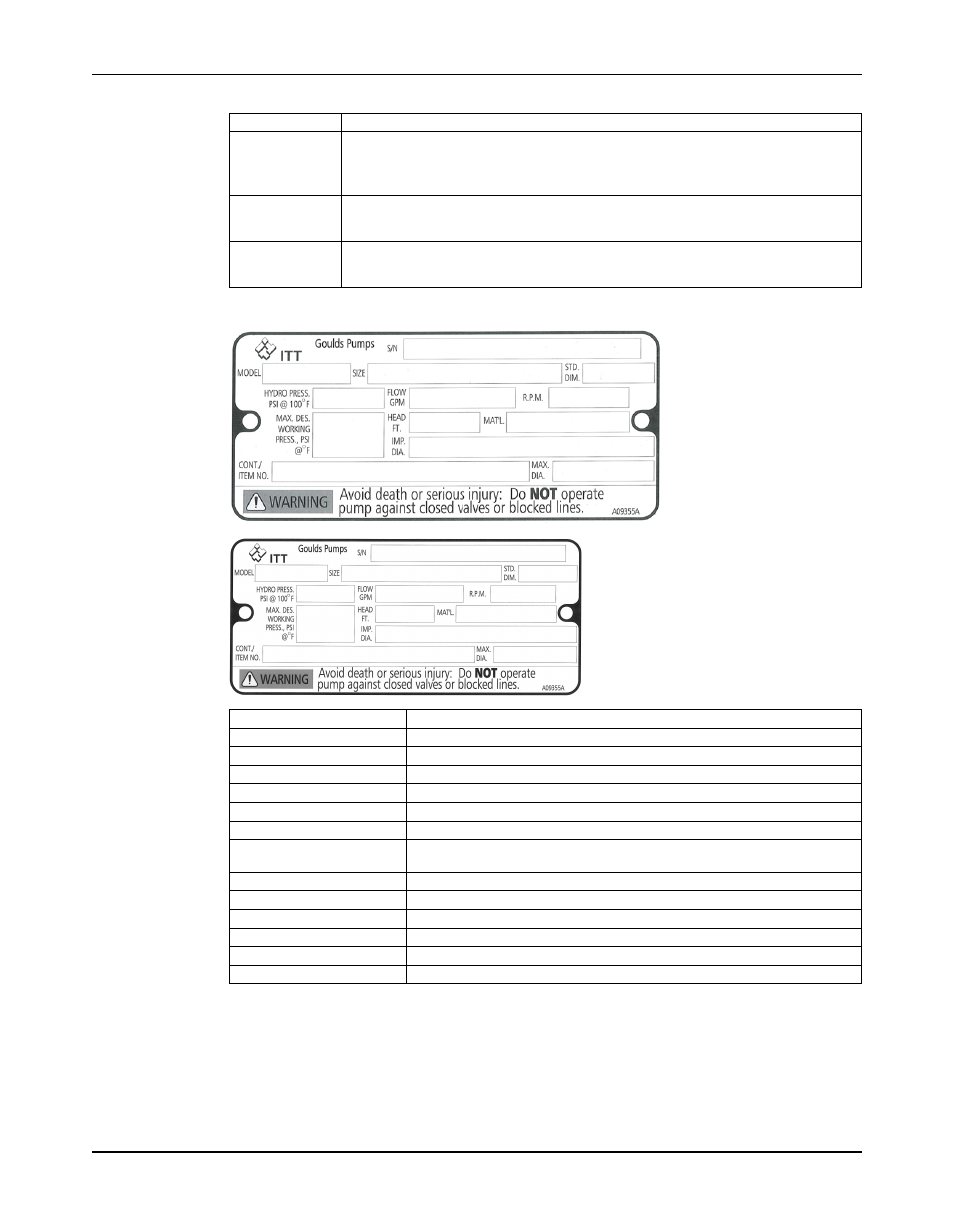

Nameplate on the pump casing using English units
Nameplate field
Explanation
MODEL
Pump model
SIZE
Size of the pump
FLOW
Rated pump flow, in gallons per minute
HEAD
Rated pump head, in feet
RPM
Rated pump speed, in revolutions per minute
HYDRO PRESS
Hydrostatic pressure at 100°F, in pounds per square inch
MAX. DES. WORKING
Maximum working pressure at temperature °F, in pounds per square inch
PRESS
S/N
Serial number of the pump
CONT./ITEM NO.
Customer contract or item number
IMP. DIA.
Rated impeller diameter
MAX. DIA.
Maximum impeller diameter
STD. DIM.
Standard ANSI dimensional code
MAT'L
Material of construction
