3. Use the Two 1 1/2” wrenches to
remove the Grip Cylinder Cap
side
Bolt (CB) and Flex Lock
Nut.
4. Use the 1 1/2” wrench to remove
the Grip Cylinder Rod side Bolt
(RB).
5. Slide out the Grip Cylinder (C).
6. Place the new Grip Cylinder
into the Cap side Eye (CE) and
Rod
side Eye (RE).
7. Use the Two 1 1/2” wrenches to
replace
the Grip Cylinder Cap
side Bolt (CB) and Flex Lock
Nut.
8. Replace the Grip Cylinder Rod
side
Bolt (RB).
9. Use the Two 11/16” wrenches to
connect
the Cap side Hose
(CH).
10. Use the Two 11/16” wrenches to
connect
the Rod side Hose
(RH).
Part Numbers
Part Name Part #
Grip Cylinder Cap Bolt (CB) 999-806628
Flex Lock Nut 999-806594-500
Grip Cylinder Rod Bolt (RB) 061-20270
Lock Washers 061-91074A038
Grip Cylinder (C) 061-H18S
Maintenance & Repair 63

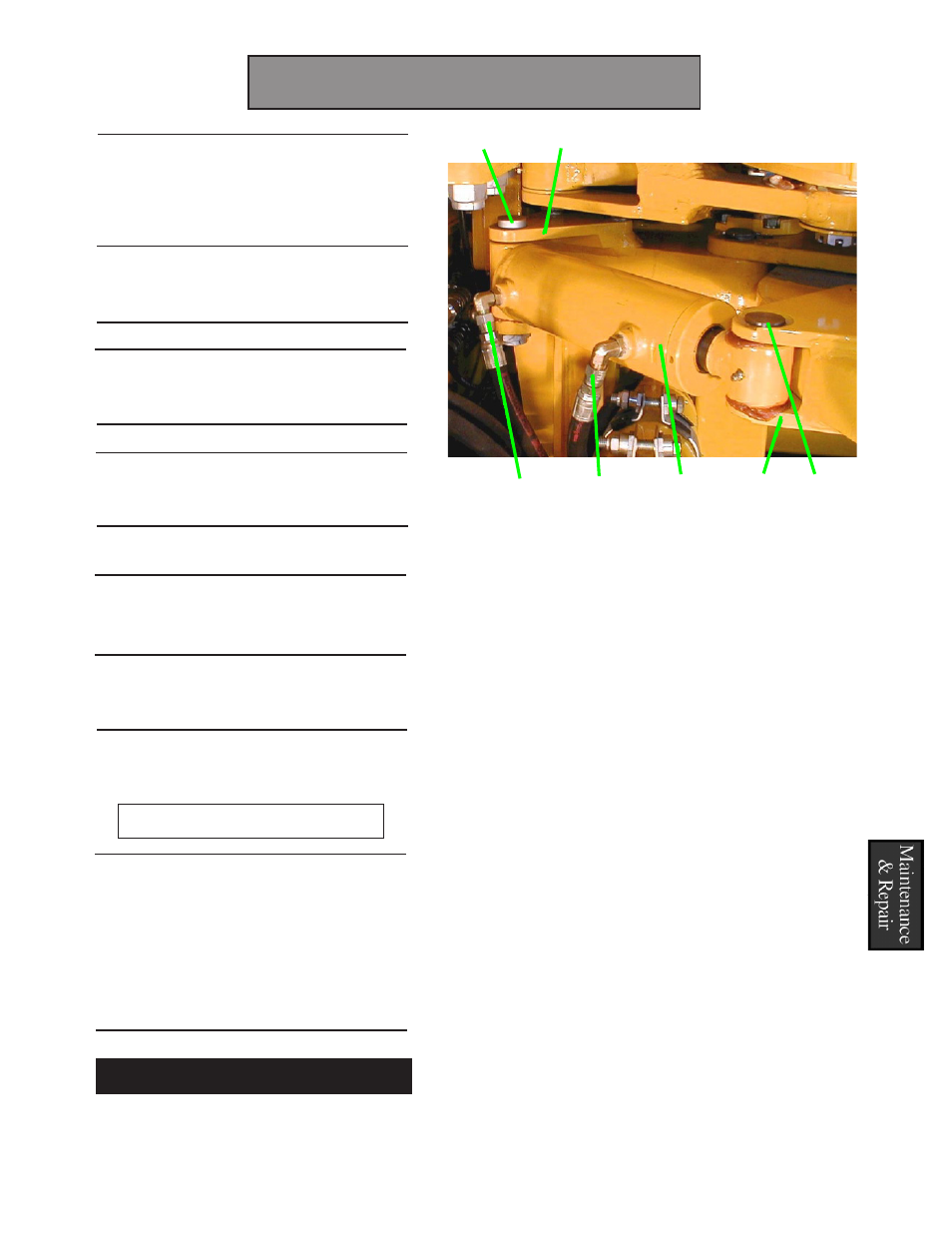

Changing the Grip Cylinder
WARNING
Make sure the Grip Cylinder Rod
and Cap side Hoses are properly
connected. See Drawings.
Grip Cylinder Seals
RH
RP RE
CE CB
C CH
Changing the Grip Cylinder
