3. Use the Two 1 1/2” wrenches to
remove the Grip Cylinder Cap
side
Bolt (CB) and Flex Lock
Nut.
4. Use the 1 1/2” wrench to remove
the Grip Cylinder Rod side Pin
(RP).
5. Slide out the Grip Cylinder (C).
6. Place the new Grip Cylinder into
the
Cap side Eye (CE) and Rod
side Eye (RE).
7. Use the Two 1 1/2” wrenches to
replace
the Grip Cylinder Cap
side Bolt (CB) and Flex Lock
Nut.
8. Replace the Grip Cylinder Rod
side
Bolt (RB). Assemble with
cotter pin.
9. Use the Two 11/16” wrenches to
connect
the Cap side Hose (CH).
10. Use the Two 11/16” wrenches to
connect
the Rod side Hose (RH).
Part Numbers
Part Name Part #
Grip Cylinder Cap Bolt (CB) 999-806628
Flex Lock Nut 999-806594-500
Grip Cylinder Rod Bolt (RB) 061-20270
Cotter Pin
061-98401A446
Lock Washers 061-91074A038
Grip Cylinder (C) 061-H18
Maintenance & Repair 59

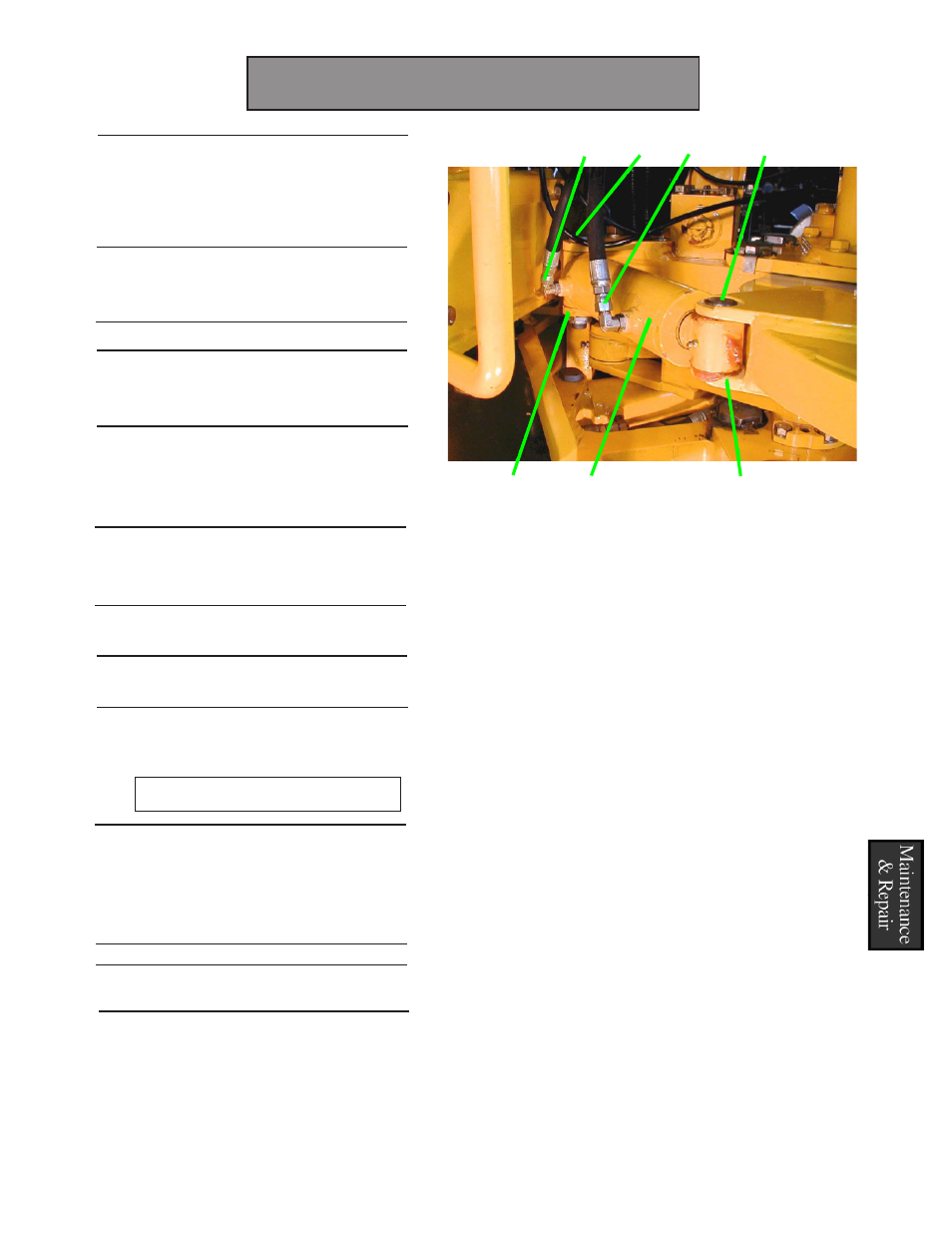

Changing the Grip Cylinder
RE C CE
RB RH CB CH
WARNING
Make sure the Grip Cylinder Rod
and Cap side Hoses are properly
connected. See Drawings.
Changing the Grip Cylinder
