7. Make sure the back and sides of
the
new Die are clean.
8. Grease the back of the new Die.
9. Insert the new Die into the Die
Holder (DH) with the teeth of
the Die facing out.
10. Replace
the Top Die Retainer
(DR).
11. Insert the Heel Die Pin (P).
12. Replace
the Heel Die Rollers
(R).
13. Replace
the Roller Bushings
(RB).
38 Maintenance & Repair

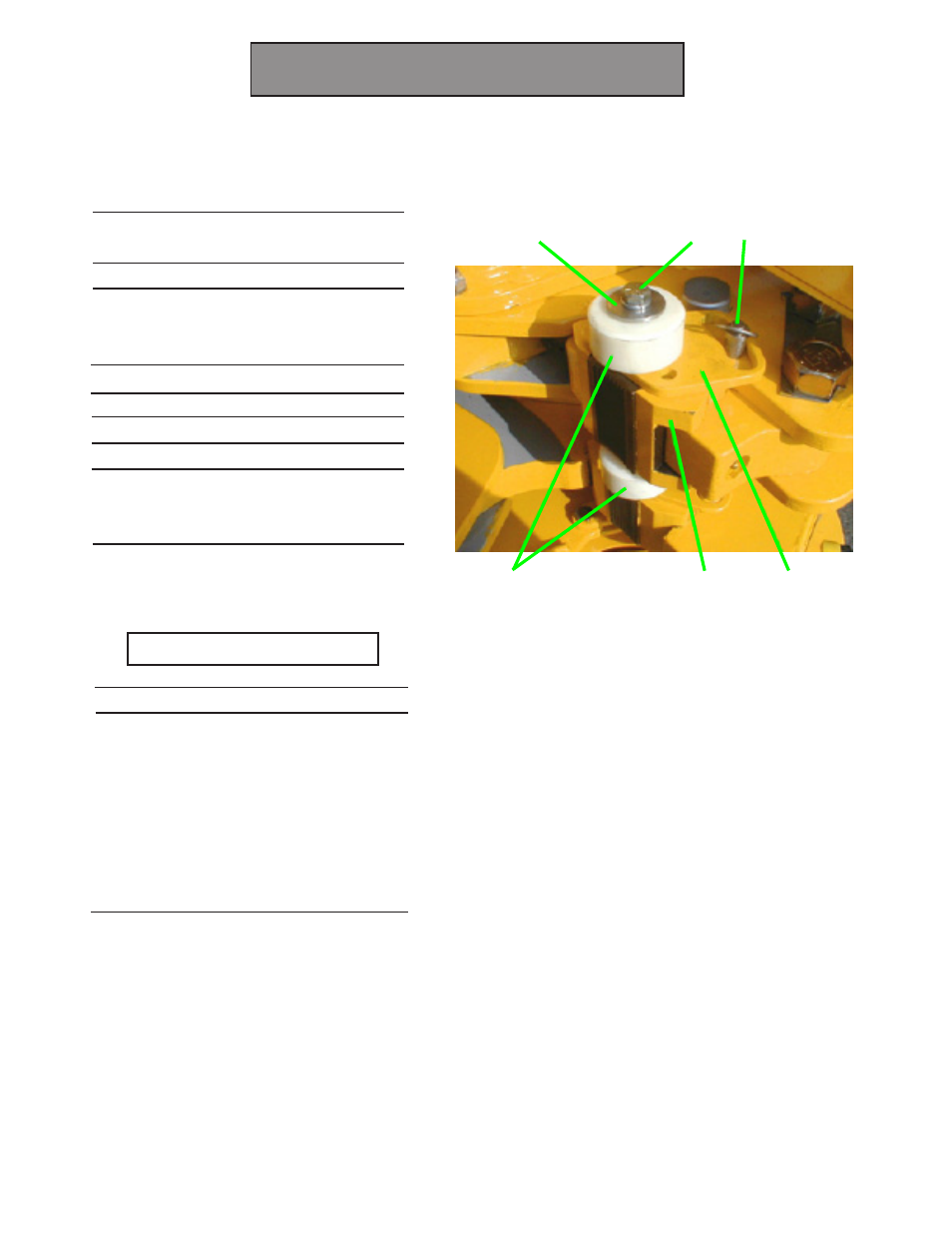

Changing the Heel Dies Changing the Heel Dies
RB B
R DH
Part Numbers
Part Name Part #
Spirol Lock Washer 999-810703
Die Roller Bolt (B) 999- 806307
Die Roller (R) 061-20210
Die Roller Bushing (RB) 061- 20208A
Die (D)
061-20194
Die Holder (DH) 061- 20192-1A
Heel Die Pin (P) 061-92384A092
