Change Every 2 Months

Initial Steps

1. Depress the Red button (RB)
located under the See-through
rubber weather cap (SC).
2. Operate the HawkJaw.
3. If the Red button pops up, proceed
with Step 4.
4. Make sure the HawkJaw is off
the drill pipe connection and in
the

rest position on the derrick.

5. Shut down the Hydraulic
power

unit.

6. Press the Grip button repeatedly
to bleed hydraulic pressure.
7. Disconnect the Air power supply.
8. Push in the “E” stop.
9. Assume that there is still pressure
in the Pressure Line. Proceed with
caution.

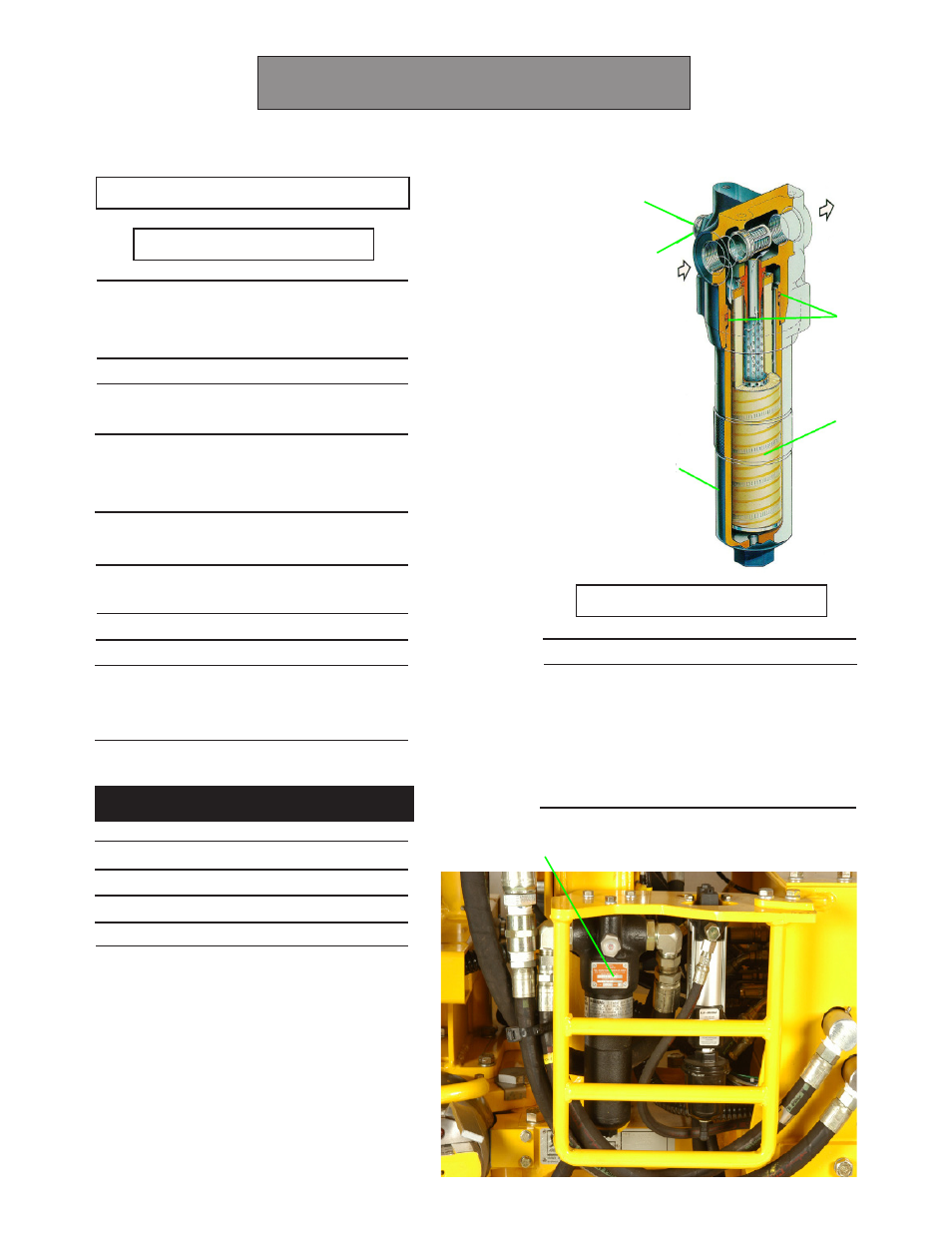

Hydraulic Filter

1. Remove the Filter Cannister (C).
2. Remove the Filter Element (E).
3. Insert the new Filter Element.
4. Replace the Filter Cannister (C).

Filter Maintenance

34 Maintenance & Repair

WARNING
Running the HawkJaw

without a Hawk approved

pressure-side filter element

(Part # 061-H25A) voids

the warranty and severely
shortens component life.

NOTE
If the Cannister (C)

leaks, change the “O”
ring and back-up (S).

Part Numbers

Part Name

Part #

Filter

061-H25

Filter Element (E)

061-H25A

Filter Cannister/Body (C) 061-H25B
Weather Cap (RB)

061-H25RC

Filter Seal Kit (S)

061-H25SK

Hydraulic Filter
