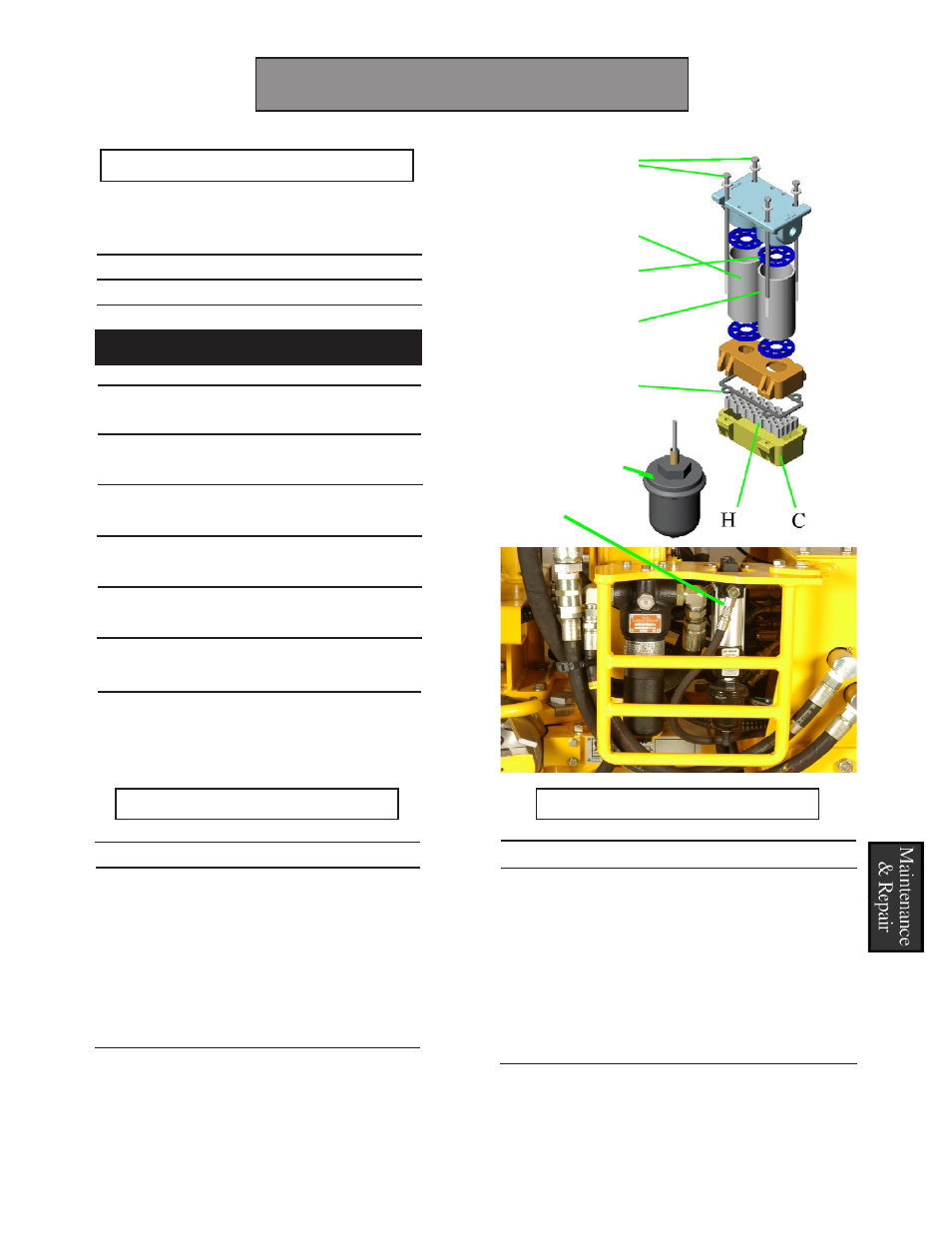

Filter Maintenance Filter Maintenance
CB
SC
G
D
WARNING
Running the HawkJaw without Hawk approved air filters (Part # 061-J29,
061-A22) voids the warranty and shortens component life.
Part Numbers
Part Name Part #
In-line Air Filter (not shown) 061-J29
Float Drain (D)
061-J29A
Filter Cartridge Kit (FC&SC) 061-J29B/C
Gasket (G)
061-J29D
Base Core (C) 061-J29E
Corner Bolt Kit (CB) 061-J29F
Maintenance & Repair 35
Part Numbers
Part Name Part #
On-board Air Filter 061-A22
Float Drain (D) 061-A22A
Filter Cartridge Kit (FC&SC) 061-A22B/C
Gasket (G)
061-A22D
Base (C) 061-A22E
Corner Bolt Kit (CB) 061-A22F
Base Core (H) 061-A22G
Change Every 2 Months
INITIAL STEPS
1. Disconnect the Air power supply.
2. Bleed Air Pressure.
Air Filters
1. Remove the two right Corner bolts
(CB).
2. Slide out the Second stage filter
cartridge
(SC) and Star spacers (S).
3. Slide out the First stage filter car-
tridge
(FC) and Star spacers (S).
4. Slide in the new First stage filter
cartridge
and Star spacers (S).
5. Slide in the new Second stage filter
cartridge
and Star spacers (S).
6. Replace the two right Corner Bolts
FC
S
Air Filter
