Maintenance & Repair 43
Notice
Spinner chain lubrication must be done
during normal operation of the Hawkjaw.
Do not run the spinner when the Hawkjaw
is not on the pipe.
Initial Steps

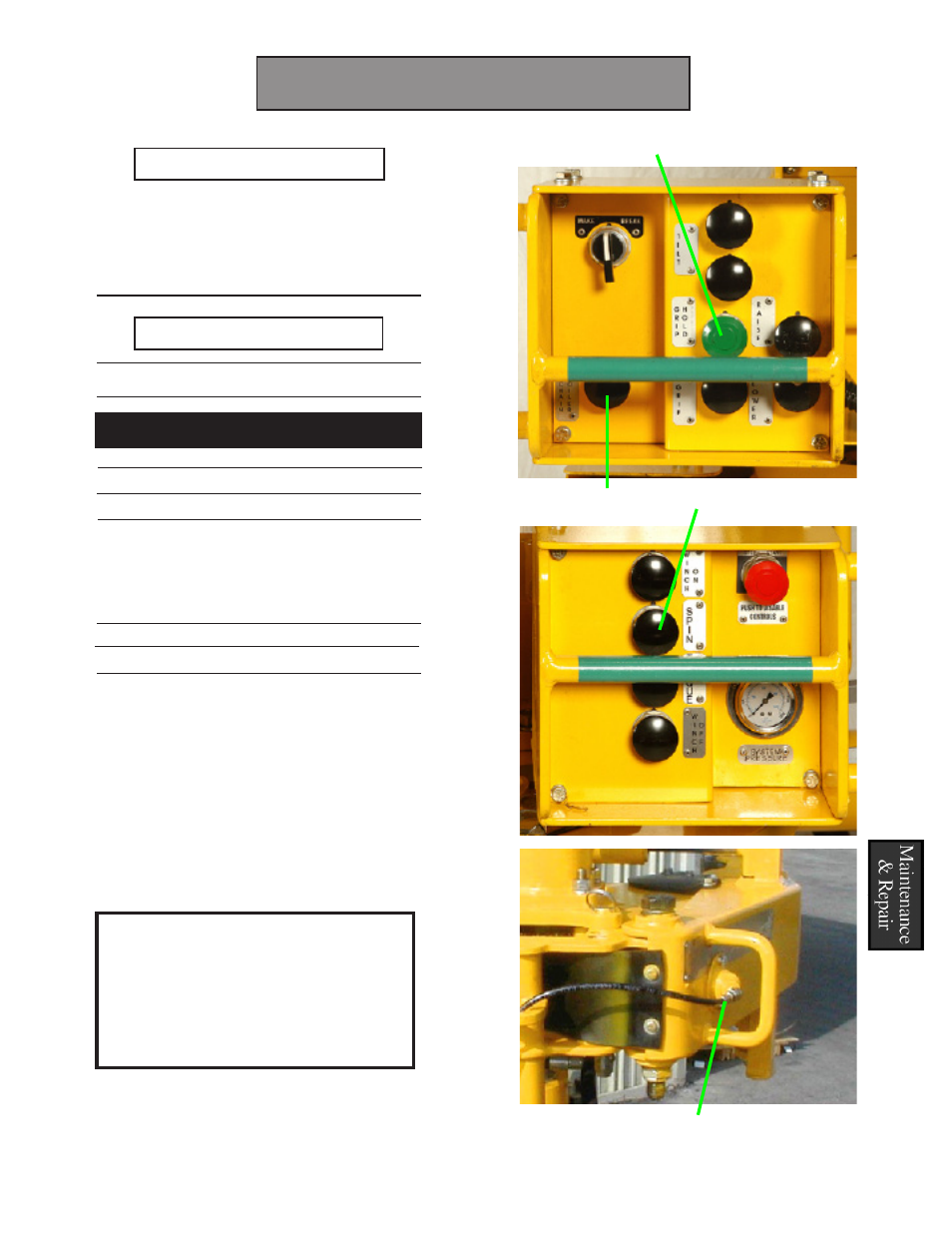

1. Position the Hawkjaw for breakout.
Chain Lubrication
1. Pull the Hawkjaw onto the pipe.
2. Press in the Grip Hold (GH) button.
3. Press and hold the Spin (S) button.
While holding down the Spin (S)
but ton, press and hold the Chain
Oiler
(CO) button for 3 seconds.
4. Release the Spin (S) button.
5. Pull out the Grip Hold (GH) button.
Spinner Maintenance Spinner Maintenance
CAUTION:
This chain oiling system uses minimal
amount of hydraulic oil from power
unit - we suggest you monitor hydraulic
oil level accordingly.
Chain oiler nozzle
NOTE: Clean nozzle screen as required
GH
CO S
