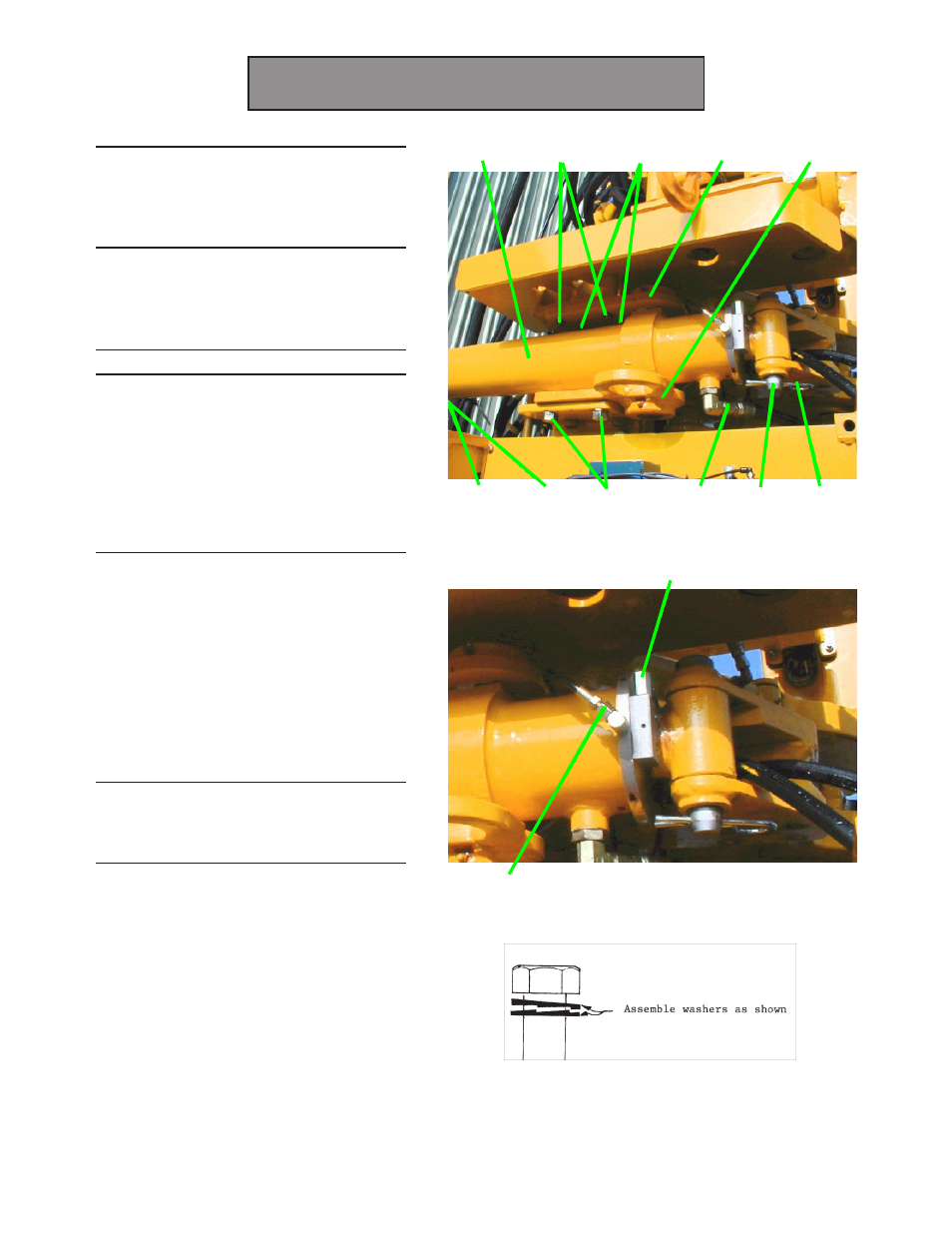

15. Use air pressure or manual force
to
extend the new Torque
Cylinder Rod to the length of the
old Torque Cylinder Rod.
16. Place the Bottom Trunion Mount
Plate
(BMP) and Top Trunion
Mount Plate (TMP) on the new
Torque Cylinder.
17. Slide in the new Torque Cylinder.
18. Use the 1 1/8” wrench to replace
the
Bottom Torque Cylinder Mount
Bolts (BB). Use new Lock Washers
and red loctite when replacing the
Bottom Torque Cylinder Mount Bolts
(BB). Assemble the Lock Washers as
shown.
19. Use the 1 1/8” wrench and 5/8” Allen
wrench to replace the Top Torque
Cylinder
Mount Bolts (TBH),
(TBA). Use new Lock Washers
and red loctite when replacing the
Top Torque Cylinder Mount Bolts
(TBH), (TBA).
Assemble the Lock Washers as
shown.
20. Connect the Low Torque Warning
System
Hydraulic Hoses (HH &
HH1).
56 Maintenance & Repair
Changing the Torque Cylinder
HH
C
BB RH P SC
Changing the Torque Cylinder
