1. Center the Suspension Ring (SR)
on the Lateral tilt screw (LTS).
2. Push and hold down Winch On
(WOn) to move the HawkJaw onto
the drill pipe connection.
3. Use Raise (R) and Lower (L) to
center the Middle wrench dies (MD)
and the Bottom wrench dies
(BD)
between
the shoulder (S).
4. Keep the Bottom wrench dies (BD)
away
from the Hard banding (HB).
5. Keep the Middle wrench dies
(MD)
and Bottom wrench
dies (BD) away from the
shoulder (S).

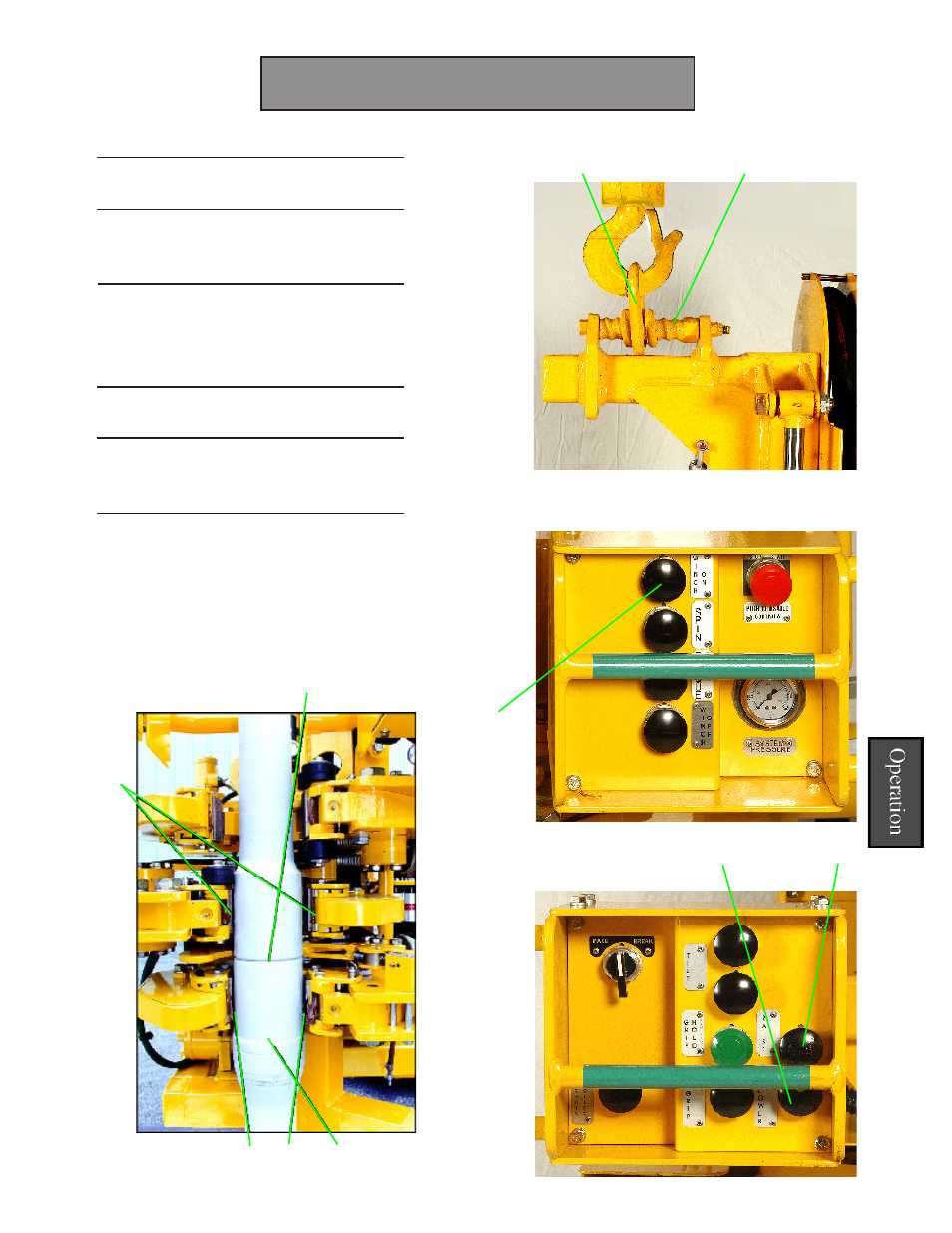

Position for Break Out Position for Break Out
BD HB
S
WOn
SR LTS
L
R
MD
Operation 27
