Adjust for break out – Hawk Industries Hawkjaw Sr. 100K-2GSR M100K Serial Numbers 141 to 200 User Manual

Page 27

Operation 25

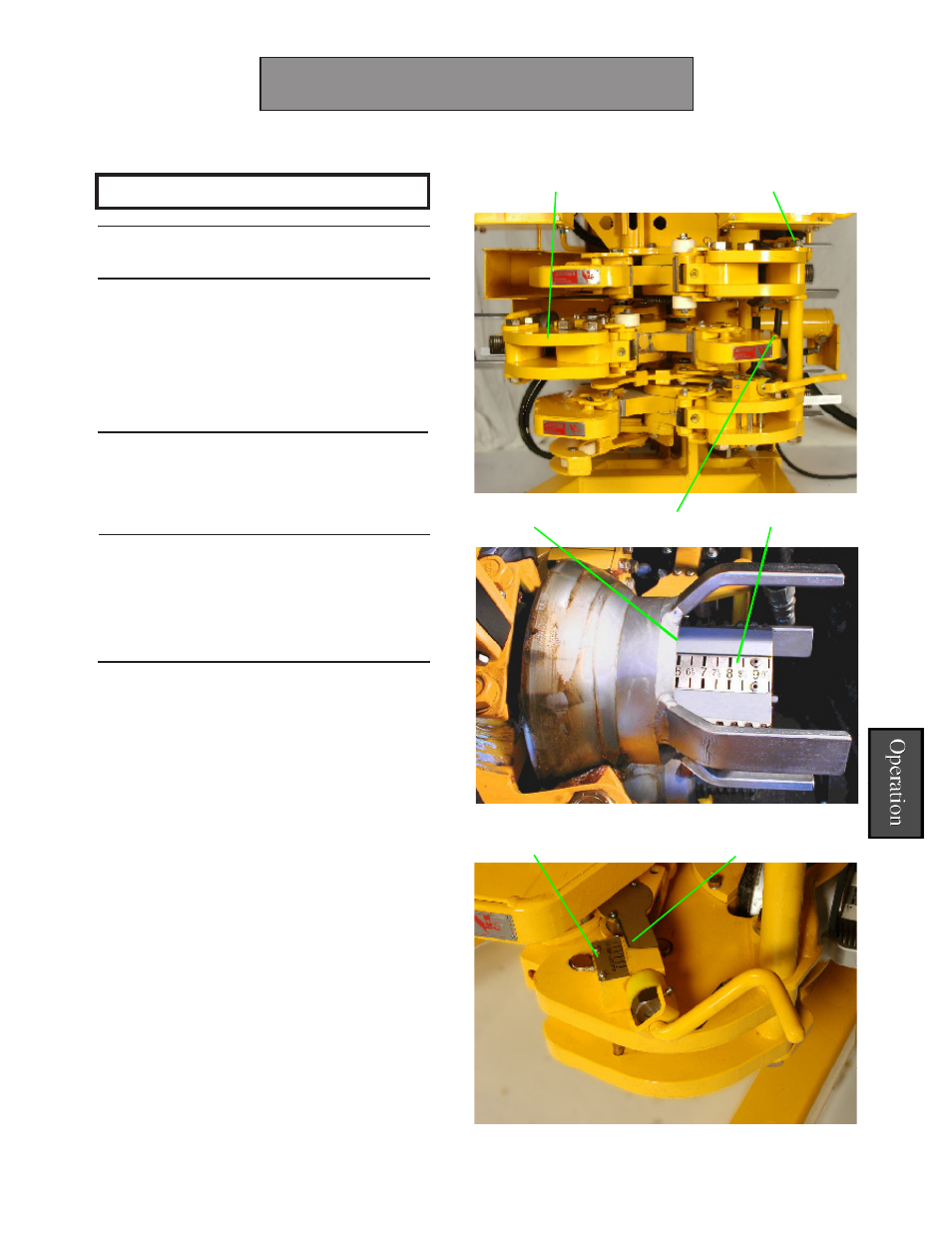

Adjusting the Wrenches

1. Measure the tool joint with OD
calipers.
2. Use the 1 1/4” wrench to adjust the
Pointer

(P) on the Pipe stop index

(PI) to the OD tool joint size. It’s

always better to adjust the pointer
1/4” larger than the measured

diameter

of the tool joint.

3. For safety, adjust the Top wrench nut
(TN) 1” larger than the Middle

wrench nut (MN) and the Bottom

wrench nut (BN).

4. Rotate the Middle wrench nut (MN)
and the Bottom wrench nut (BN) to
the

OD tool joint size. Visually align

the end face (F) of the wrench nut with
the

scale (S) on the wrench.

Adjust for Break Out

F BN S

MN TN

Shown set for 6” OD tool joint

PI P
