1. Clean, dry air at 100 psi @ a negligible
volume.

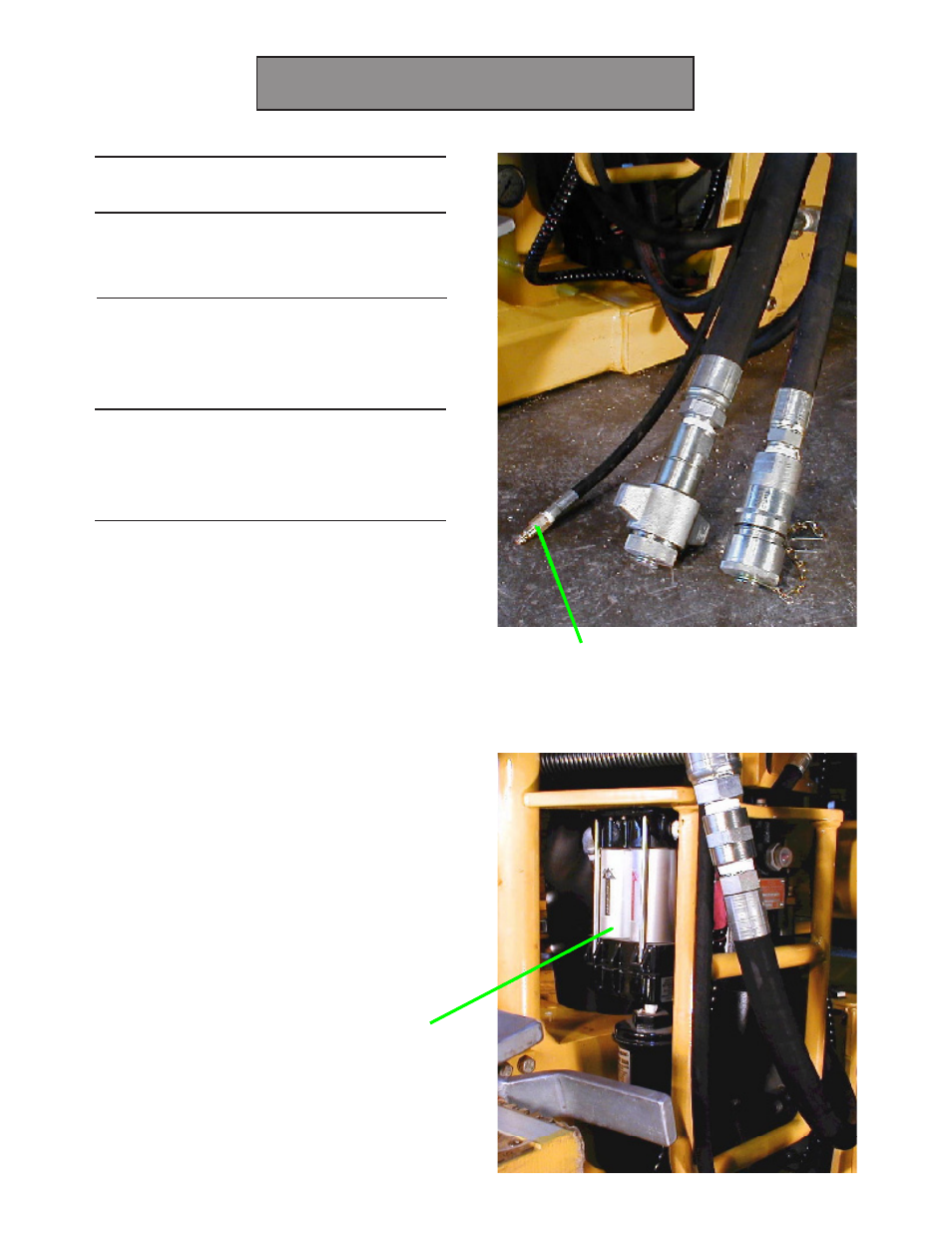

2. On-board auto-dump air filter (Part #
061-A22).
Initial on-board filter (OF)
supplied with the HawkJaw.
3. Auto-dump air filter (Part # 061-J29)
located between the air source and the
HawkJaw air supply line (A). Initial inline
filter supplied with the HawkJaw.
4. Enough slack in the line for the
HawkJaw to move from its rest position
to the drill pipe connection to the
mouse hole connection.
WARNING
The HawkJaw must receive clean, dry air. Run-
ning the HawkJaw without a Hawk approved
air filter (Part # 061-J29) voids the warranty and
shortens component life.
NOTE
Make sure the larger air filter (Part # 061-J29)
is mounted vertically with the red and black
arrows on the cannisters pointing up.
NOTE
The smaller air filter (OF) is located on board
the HawkJaw. (Part # 061-A22)
A
OF
12 Installation
Air Requirements Air Requirements
