Hanging Cable Requirements
1. 5/8” diameter steel cable.
2. Appropriate hanging cable hardware for
5/8”
diameter steel cable.
3. Enough cable length to suspend the
Hanger Eye (HE) 20’ ft. above the rig floor.
4. Enough cable length to allow the HawkJaw
to rest on the rig floor 3’- 5’ ft. away from the
rotary table with the lift cylinder completely
stroked out. The lift cylinder is 13’ ft. long when
completely stroked out.
10 Installation

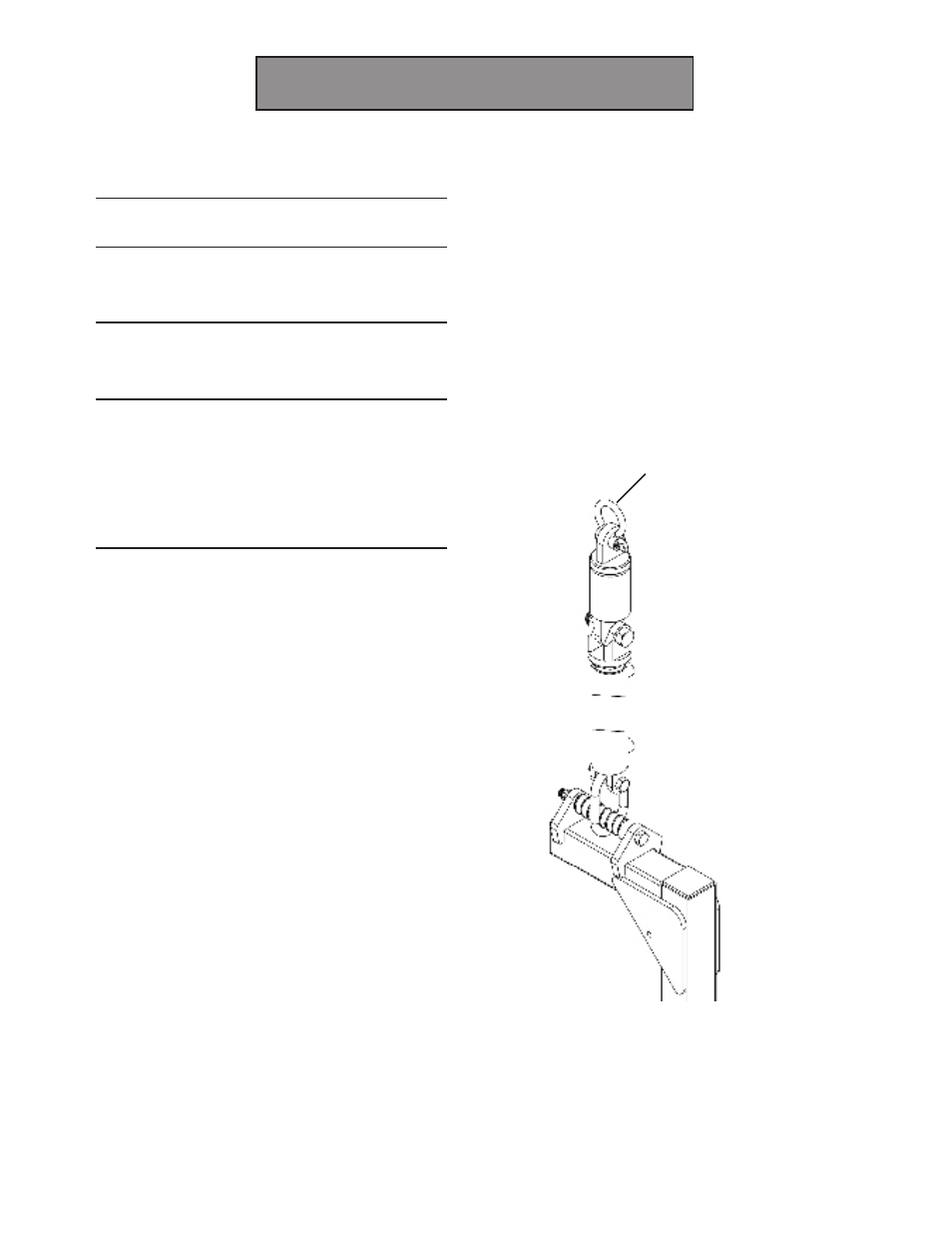

HE
Hanging Cable Requirements
