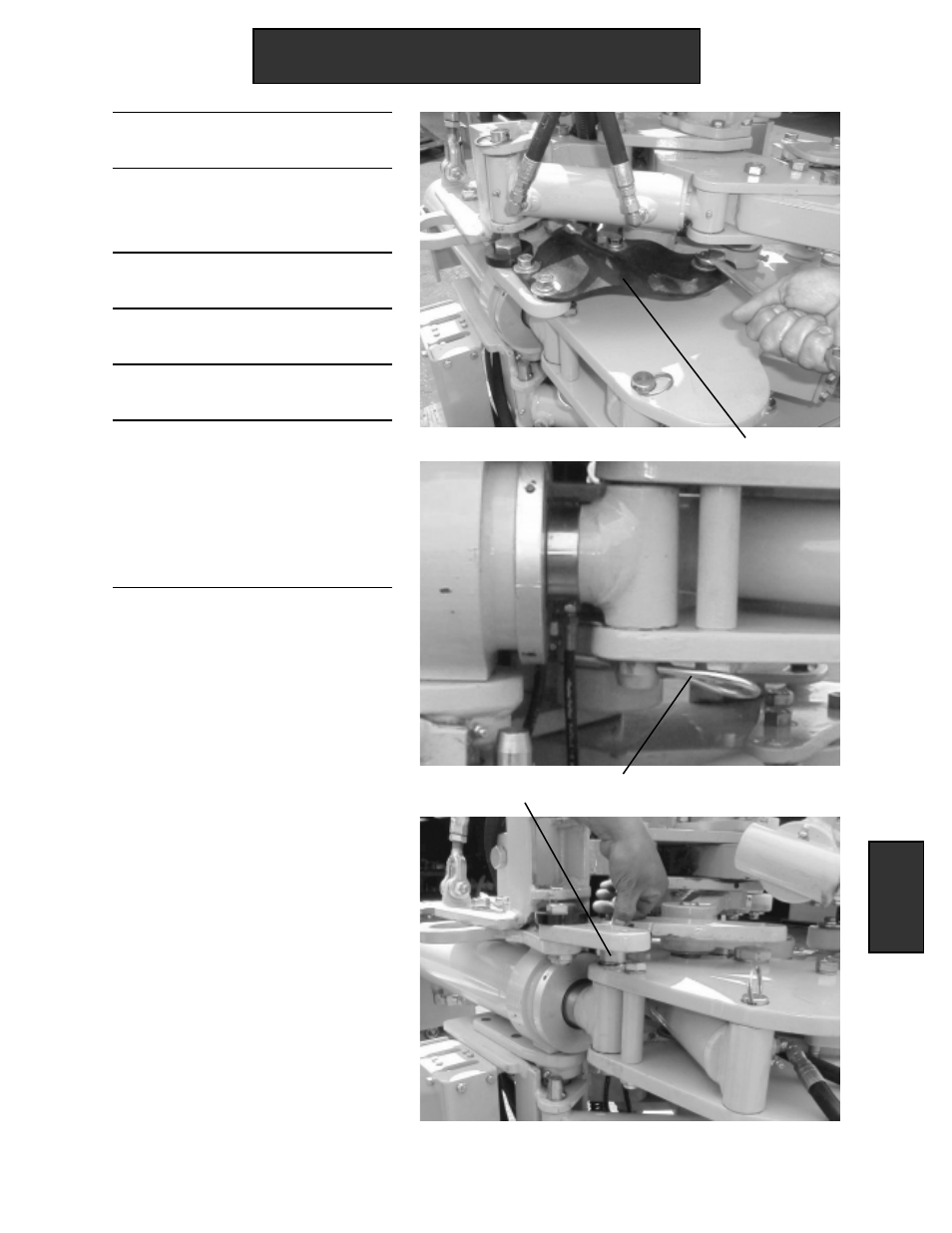

4. Pull out the Top Grip Cylinder

Rod side Pin (TGP).

5. Pivot out the Top Grip

Cylinder (TC) to expose the
Torque Cylinder Rod Pin (P).

6. Remove the Torque Cylinder Rod

Pin Rubber Safety Cover (S).

7. Pull out the Torque Cylinder

Safety Clip (SC).

8. Pull out the Torque Cylinder Rod

Pin (P).

9. Use the 1 1/8" wrench to slowly

loosen the Rod side Hose (RH)
on the rod side of the torque
cylinder. Check for fluid flow.
Bleed any pressure. Disconnect
the Rod side Hose (RH).

Changing the Torque Cylinder (cont.)

Maintenance & Repair 57

Maintenance

Repair

Continued on next page.
