Changing the Drive Roller Sprocket Bearings (cont.)
pushed out. Tighten the Hex Tap
screws evenly, or the bearing (4)
will tilt and lodge in the bearing cap
(3).

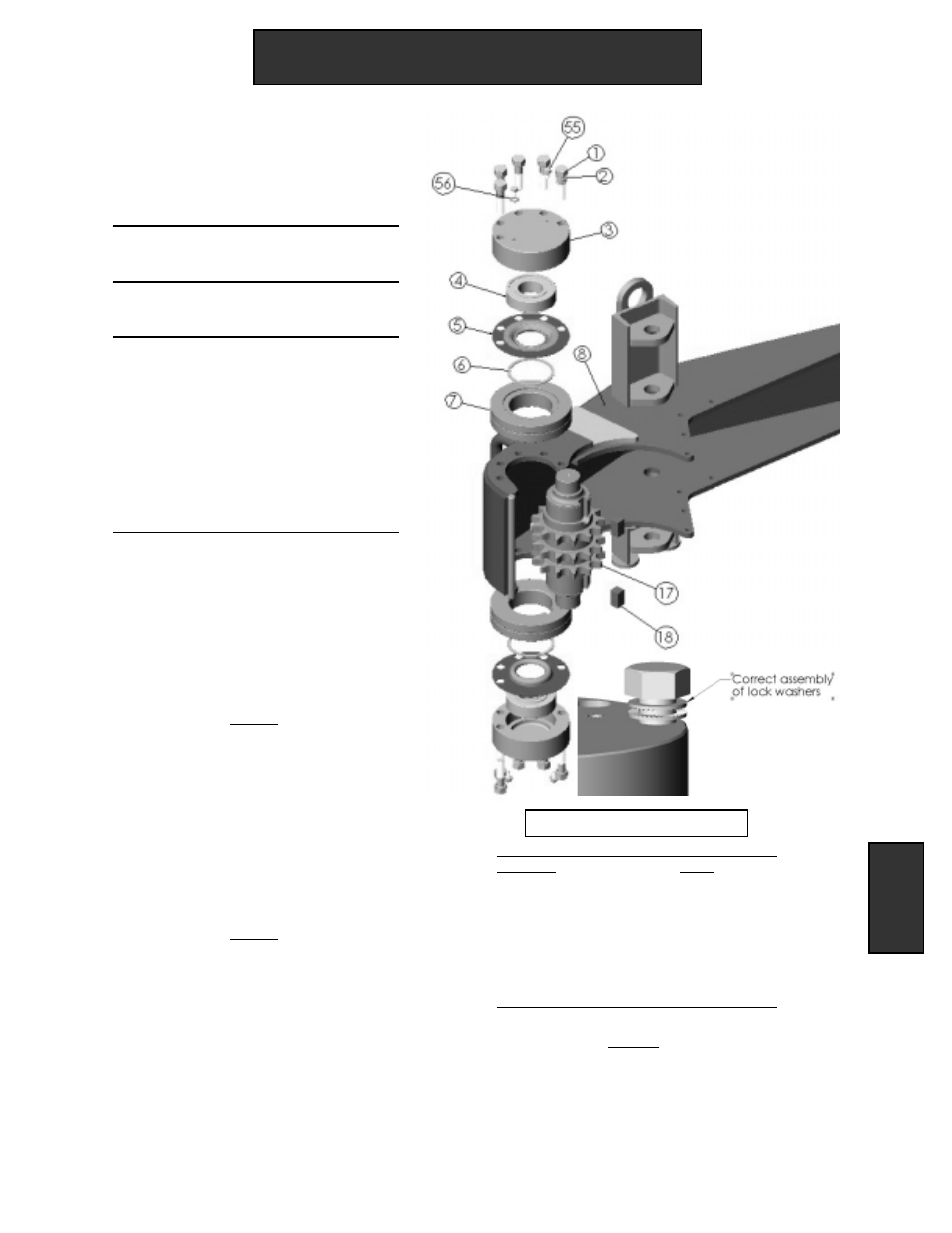

5. Insert the new bearings into the
Bearing Caps (3).
6. Replace the Bearing Caps (3) and
Bearing Seals (5).
7. Use the 3/4" wrench to replace all
Bearing Cap Bolts (1). Use new
Lock Washers (2) and Red Loctite
when replacing the Bearing Cap
Bolts (1). Assemble the Lock
Washers (2) as shown. Torque
Bearing Cap Bolts (1) to 75 lb. ft.
NOTE
If the bearing (4) is stuck in the bearing
cap (3), and no Hex Tap screws are
available, remove the Hex Tap screw
(54) on the spinner. Use the Hex Tap
Screw (54) to push out the bearing
(4). Replace the Hex Tap Screw (54)
in the Spinner case (8) after removing
the bearing (4).
Part Numbers
Part Name Part #
Bearing Cap Bolt (1) 999-806373
Lock Washers (2) 031-91074A033
Bearing Seal (5) 031-24731
Hex Tap Screw (54) 999-805867
Bearing (4) 031-24649
Maintenance
&
Repair
Maintenance & Repair 55
NOTE
Hawk recommends that all four bearings
(4) be replaced each time a bearing (4)
is changed. Always use new lock
washers (2) when replacing bearing cap
bolts (1).
NOTE
Hawk recommends that all four bearing seals (5) be
replaced each time a bearing (4) is changed.
