Adjust for Break Out
Operation 26
1. Measure the drill pipe tube with
OD calipers.
2. Tube Size Use
4 1/2"- 5 1/2" Front Holes (FH)
3 1/2"- 4"
Middle Holes (MH)
2 7/8" Rear Holes (RH)

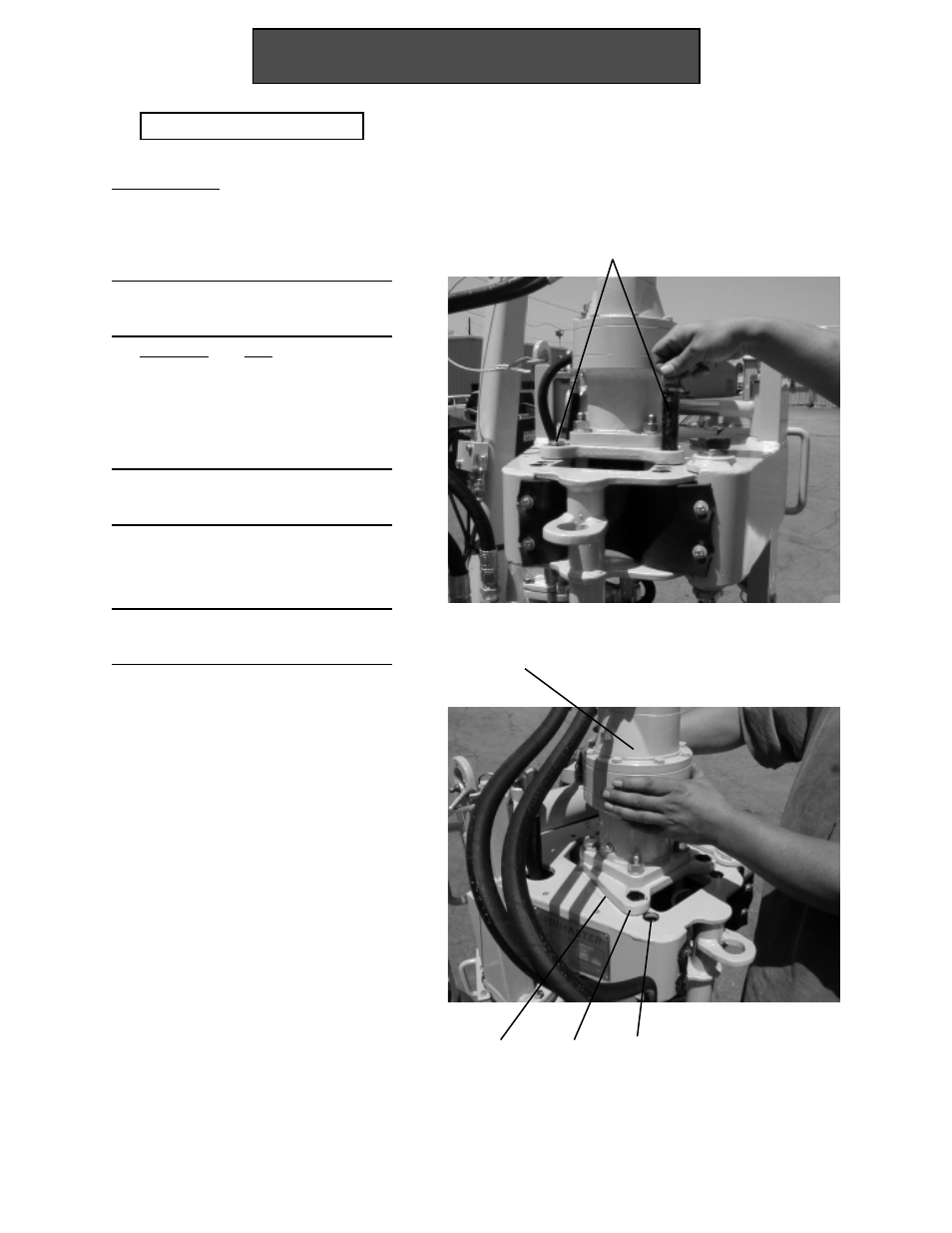

3. Remove the two quick release
pins (QR).
4. Slide the whole Drive unit (D)
forward or backward to the
appropriate holes.
5. Replace the quick release pins
(QR).
Tools Required
OD calipers
D
Adjusting the Spinner
Continued on next page.
BH MH FH
QR
