Changing the Heel Dies (cont.)
3/4" wrench, See Drawings p. 128.
Tools Required
1. Make sure the HawkJaw is off the
drill pipe connection and in the rest
position on the derrick.
2. Shut down the Hydraulic power
unit.
3. Press, push, and pull all control
buttons repeatedly to bleed
hydraulic pressure.
4. Disconnect the Air power supply.
5. Press, push, and pull all control
buttons repeatedly to bleed air
pressure.
6. Assume that there is still a load on
every actuator. Proceed with
caution.
Initial Steps

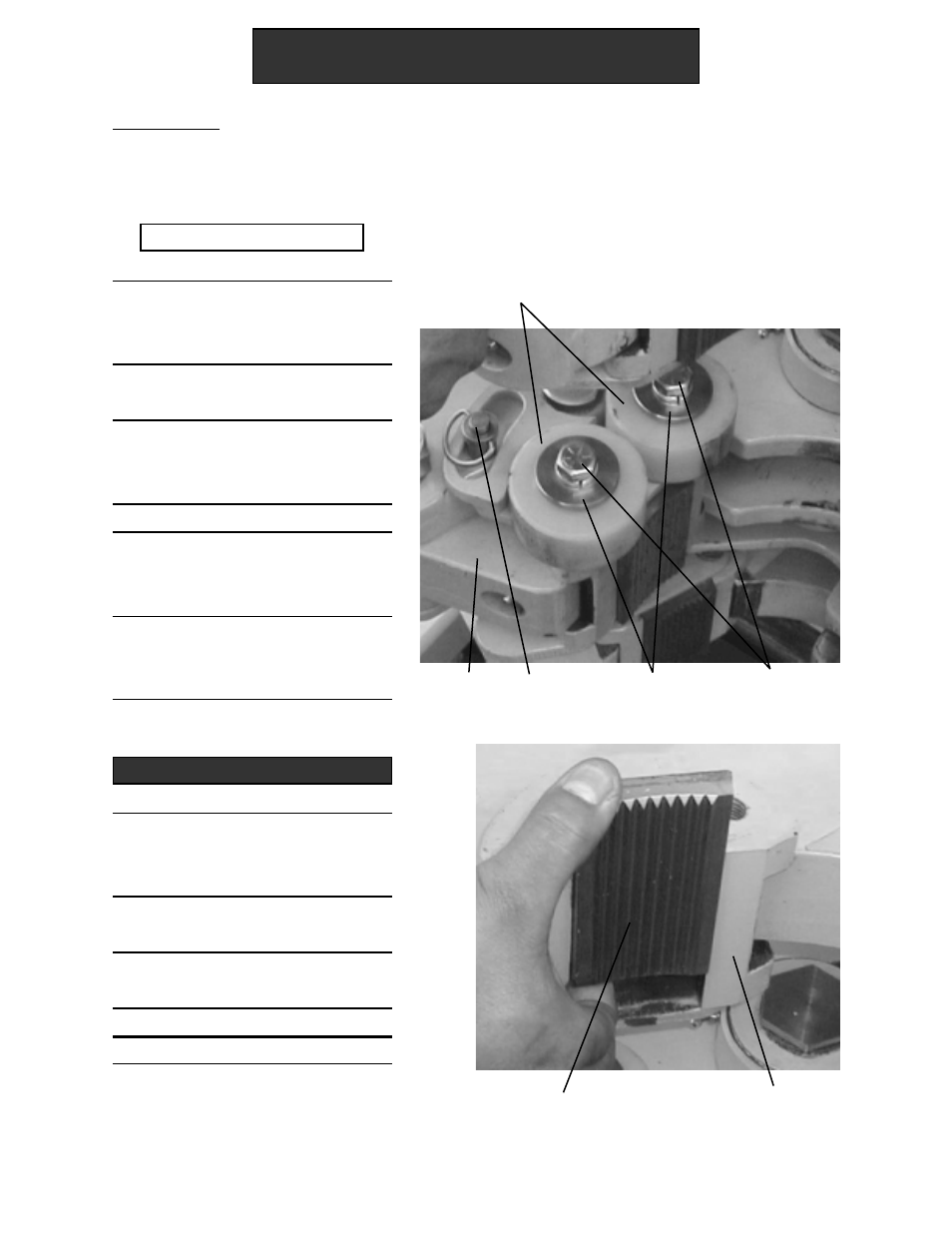

Middle Wrench Heel Die
1. Use the 3/4" wrench to remove the
Heel Die Roller Bolts (B) on the
top of the Die Holder (DH).
2. Remove the Roller Bushings
(RB).
3. Remove the Heel Die Rollers
(R).
4. Pull out the Heel Die Pin (P).
5. Pull out the Die Holder (DH).
Continued on next page.
R
DH
D
B RB
P
42 Maintenance & Repair
DB
