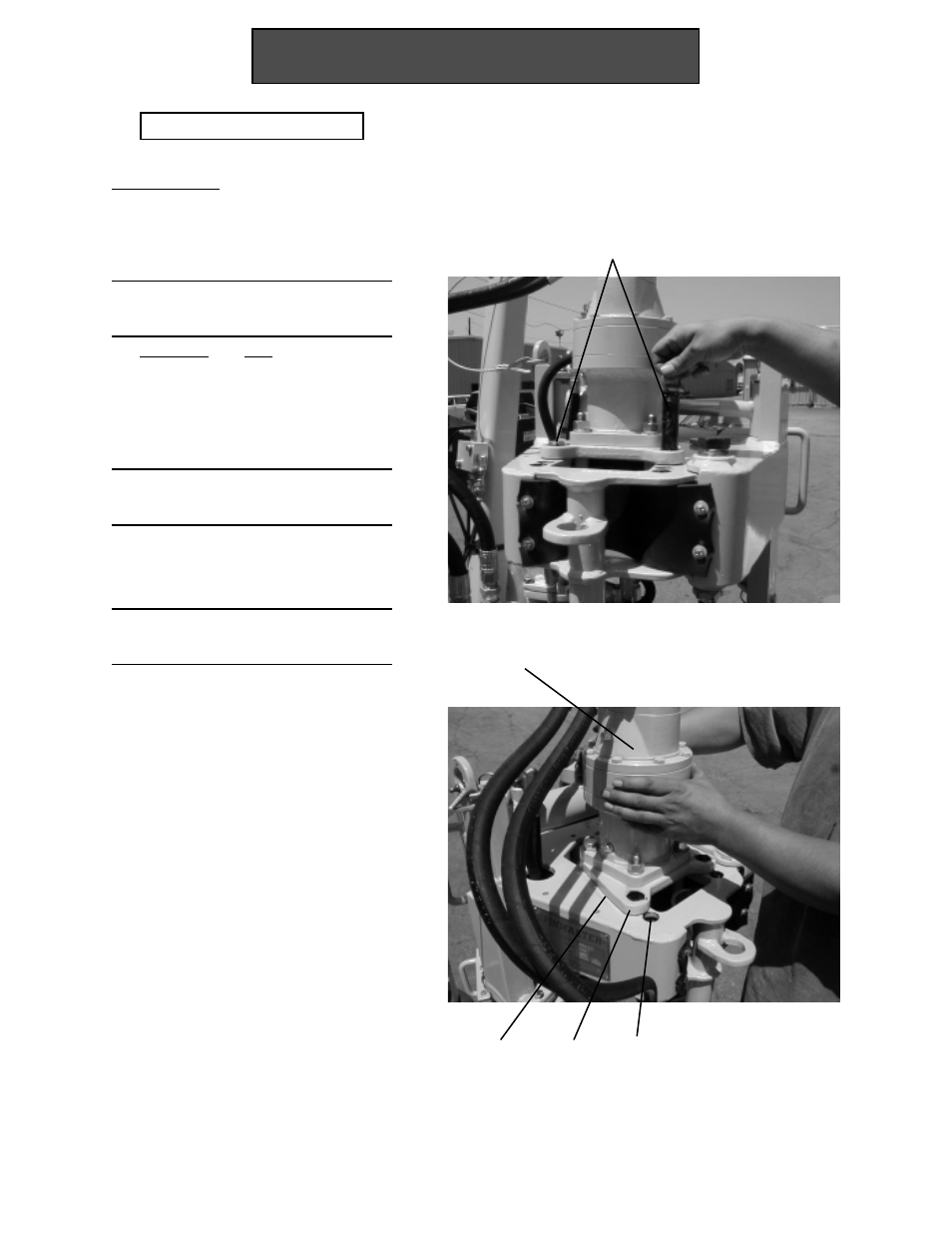

Adjust for Make Up
1. Measure the drill pipe tube with
OD calipers.
2. Tube Size
Use
4 1/2"- 5 1/2" Front Holes (FH)
3 1/2"- 4"
Middle Holes (MH)
2 7/8"
Rear Holes (RH)
3. Remove the two quick release
pins (QR).
4. Slide the whole Drive unit (D)
forward or backward to the
appropriate holes.
5. Replace the quick release pins
(QR).
Tools Required
OD calipers
